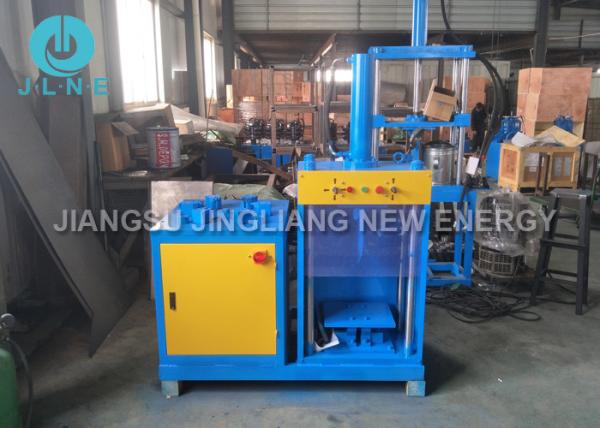

Waste electric motor recycling machine/copper motor separator machine

Description of Motor Separating Machine:

The Motor Seaprator havs 2 main parts,one is cutting parts another is separating(pulling) parts.Using heavy cylinder, large torque, can withstand high loads. We use international famous brand for hydraulic solenoid valve with durable long life. The material of fixture is alloy steel and the blade is made of manganese steel with durable long life.

cutting area mainly include flate blade can cutting motor shell and sharp blade can cut motor stator into 2pcs.the blade is made of manganese steel with durable long life.

Automatic Motor Recycling Machine is used for motor/stator cutting and stripping copper from iron/aluminum cover, this is a kind of waste motor/stator recycling equipment. This machine cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. It's very cost-effective and convenient in using.

Application of electric motor separating machine:

this motor recycle machine is used for breaking the motor and and then separate the inside copper wire out for recycling use.The machine is 3 in 1 machine, it is work with three steps,first step is cut the motor cover, 2 steps is cutting stator, 3 step is pulling the copper line. and the motor breaking recycling machine can deal with 10-40 pieces motor. machine design with high working efficiency easy to operate and use.

Working principle of stator separating machine:

motor stator broken by hydraulic system disassemble, moving with a master cylinder, through the replacement of different tooling, respectively (limited to the motor stator frame and stator iron frame) cylindrical iron core is broken into two halves, in another position can be a cylindrical stator winding copper iron core in the iron pulled out. The motor stator, silicon steel sheet, copper wire from the three part to complete the dismantling process of motor stator.

Specification of stator recycling machine:
