Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust
Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust
Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust
Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust
Specifications
Brand Name :
CHANT
Model Number :
CHANT-C-1025
Certification :
CE ISO9000
Place of Origin :
CHINA
MOQ :
10m2
Price :
Usd 8.8-20.8/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m2/week
Delivery Time :
5-8 days
Packaging Details :
Wooden Case
Material :
Stainless Steel Wire
Hole Size :
25*25mm-300*300mm
Cable Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Feature :
Flexible, High-Strength
Wire Structure :
7*7, 7*19
Length :
Customized
Width :
Customized
application :
Protective, Fall Prevention
Description

Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust

Product Description

Stainless Steel Cable Mesh is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied. Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 6.0mm.

Specification:

Material Stainelss steel 304 316 316L etc.
Wire diameter 1.0mm-3.0mm
Feature Flexible, high-Strength
Technique Woven wire mesh
Technique 1x30m 2x30m 4x30m or according to clients' requirements
Structure 7*7 or 7*19
Surface flat and bright

Cable Diameter Mesh Opening Size Normal Break
inch mm inch mm lbs.
1/8 3.2 4.75 x 4.75 120 x 120 1,600
1/8 3.2 4 x 4 102 x 102 1,600
1/8 3.2 3.55 x 3.55 90 x 90 1,600
1/8 3.2 3 x 3 76 x 76 1,600
1/8 3.2 2 x 2 51 x 51 1,600
3/32 2.4 4 x 4 102 x 102 920
3/32 2.4 3.55 x 3.55 90 x 90 920
3/32 2.4 3 x 3 76 x 76 920
3/32 2.4 2.4 x 2.4 60 x 60 920
3/32 2.4 2 x 2 51 x 51 920
5/64 2 3 x 3 76 x 76 676
5/64 2 2.4 x 2.4 60 x 60 676
5/64 2 2 x 2 51 x 51 676
5/64 2 1-1/2 x 1-1/2 38 x 38 676
1/16 1.6 3 x 3 76 x 76 480
1/16 1.6 2 x 2 51 x 51 480
1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
1/16 1.6 1.2 x 1.2 30 x 30 480
1/16 1.6 1 x 1 25.4 x 25.4 480
3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
3/64 1.2 1.2 x 1.2 30 x 30 270
3/64 1.2 1 x 1 25.4 x 25.4 270
3/64 1.2 4/5 X 4/5 20 x 20 270

Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust

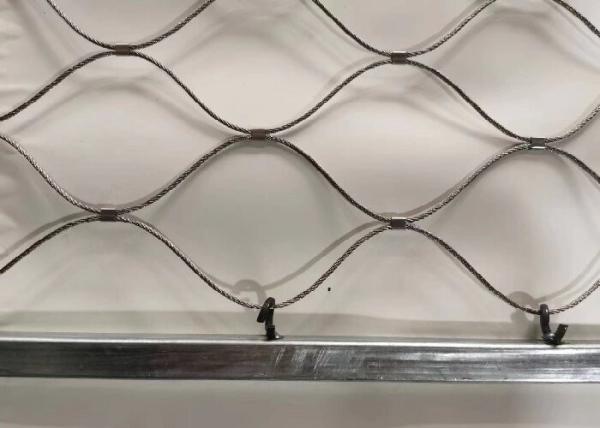

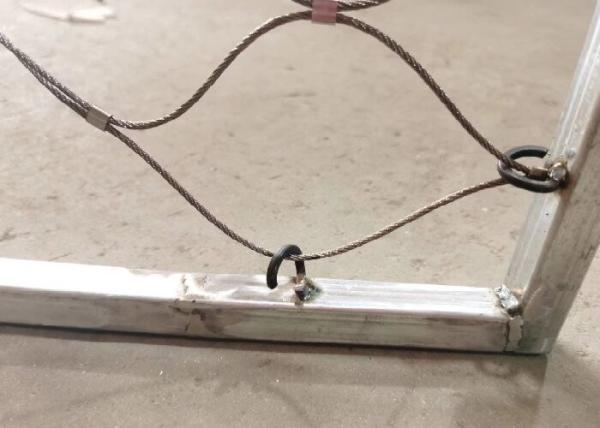

Details pictures showing :

Infill Balustrade Handrail Stainless Steel Cable Mesh Anti Corrosive Anti Rust

Features:

1. High tensile strength with light weight.

2. Safe and environmental protection, close to nature.

3. Good resistance for weather and corrosion.

4. High transparency and good invisible effect.

5. Large mesh span for huge surface installation.

6. The structure is strong and durable, with a service life of more than 30 years

7. Various graphics and structures can be designed arbitrarily.

8. Easy to install, can be constructed on any structure.

Application

Cable rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.
