7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized
7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized
7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized
7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized
Specifications
Brand Name :
CHANT
Model Number :
QT-C-1025
Certification :
CE ISO9000
Place of Origin :
CHINA
MOQ :
10m2
Price :
Usd 9.8-20.8/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m2/week
Delivery Time :
5-8 days
Packaging Details :
Wooden Case
Material :
304 316 316L wire rope
Size Of Hole :
25*25mm-300*300mm
Wire Diameter :
1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Height :
Customized
Weave Style :
Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Characteristic :
Anti-corrosion Non-rusting Anti Acid And Alkali
Uasage :
Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Cages, Bagpack Protector, Drop Preventing Net
Description

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistance



1:Product Details

Product Name Flexible Stainless Steel Wire Cable Net Rope Mesh
Raw Material Stainless Steel, Galvanized Wire
Type Ferrule Type or Knotted Type
Specification Rope, 7x7 or 7x19
Mesh, 30mm to 200mm
Wire diameter, 1.0 to 4.0mm
Feature Handle Made
Environmental Protection
Extensive Use
Premium Quality
Direct from Factory
Product Life Cycle
Lifetime Support
Application Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing.
Helideck Mesh
Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is
installed around the helicopter landing deck.

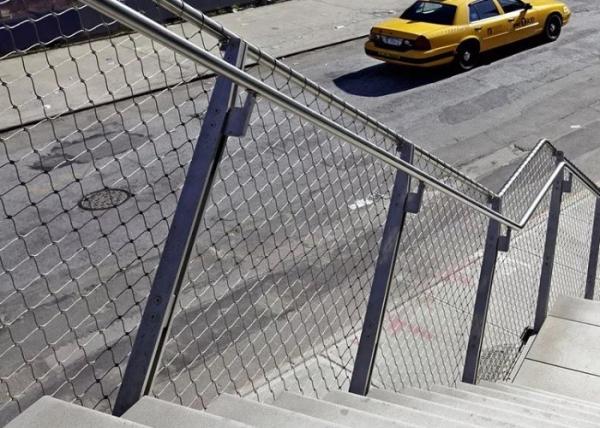

Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
Decoration Mesh
The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of
building, such as ceiling and curtain wall.
Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green
wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural
environment for birds to make them live comfortably.
Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or
other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.
Packing The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.

The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.

2. cable structures and mesh type:

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized

Rope Constructin

Rope Diameter

Opening Size

 Breaking Force
Inch mm Inch mm KN
7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
7 × 7 5/64 2 3" × 3" 76 × 76 3.17
7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
7 × 7 5/64 2 2" × 2" 51 × 51 3.17
7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22


Accessory:

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized


Package and transport:

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized

Feature

High Flexibility

High Strength

Good Softness

Excellent Rust-Resistance,Recyclable

Outstanding Grand Appearance

Maintenance-Free and Environmentally Friendly

Application

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized

7×19 Stainless Steel Balustrade Cable Mesh Impact Resistant Customized
