Decorative wire mesh
This wire mesh combines aesthetics and functionality by delivering striking visual appeal, increased comfort, safety and energy savings. Architectural wire mesh is one of the most effective forms of solar shading available and can be configured to withstand strong winds. It can be painted any color or laser cut to size. No matter if you choose aluminum mesh, stainless mesh, or galvanized steel, our architectural wire mesh stylishly dresses walls and ceilings while brilliantly reflecting light throughout an interior space and adding textural appeal.
Material | Stainless Steel |
Warp Diameter | 1 mm |
Warp Pitch | 3 mm |
Weft Diameter | 2 x 1 mm |
Weft Pitch | 7 mm |
Weight | 9 KG/m2 |
Opening Area | 9.5 % |
Mesh Thickness | 3 mm |
Surface Treatment | clean & free oil |
Color | Metal silver, painting |
Max Width | 3m |
Max Length | 6m |

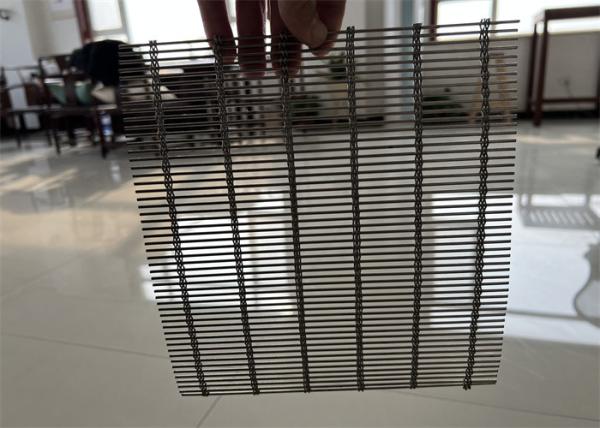

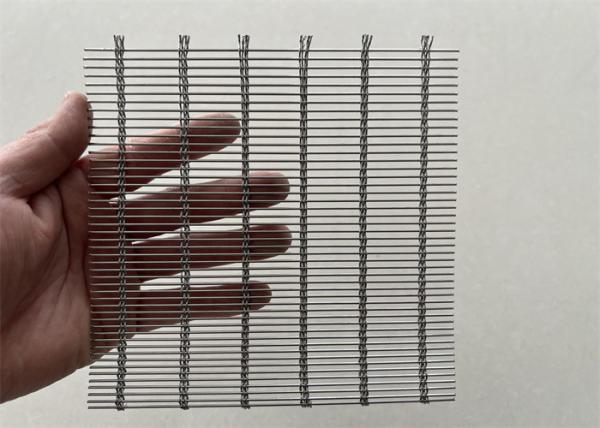

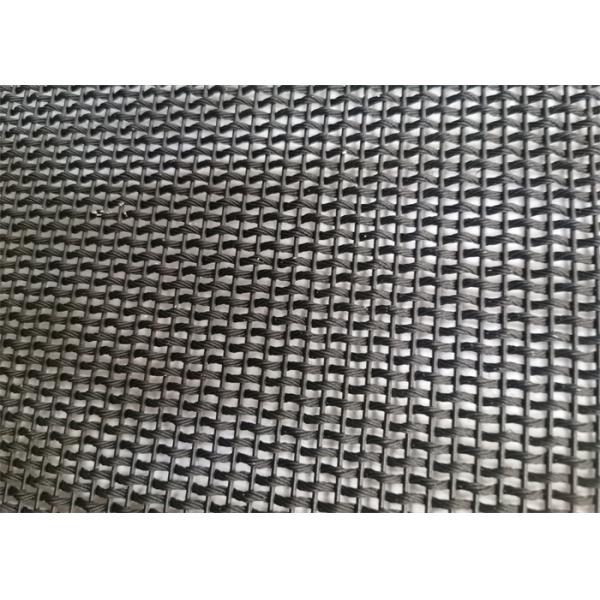

Details photo:

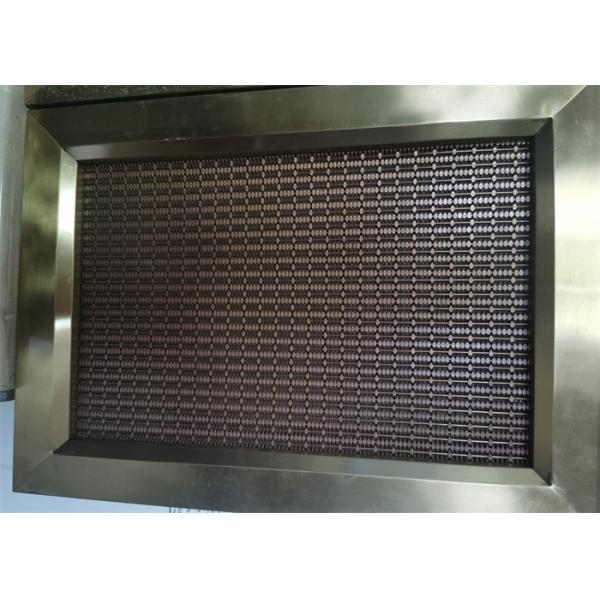

Application:
