Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Specifications
Brand Name :
CHANT
Model Number :
CHANT-C 1005
Certification :
CE ISO9000
Place of Origin :
CHINA
MOQ :
5m2
Price :
USD 5-15/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m2/week
Delivery Time :
10 days
Packaging Details :
wooden case
Material :
SUS 304 316 316L
Wire Diameter :
1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Mesh Type :
Ferrule Mesh
Weave Style: :
Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Size Of Hole :
30mm-300mm
Length :
Customized
Name :
Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti 
Application :
Protective, Fall Prevention
Description

Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti

Product Description

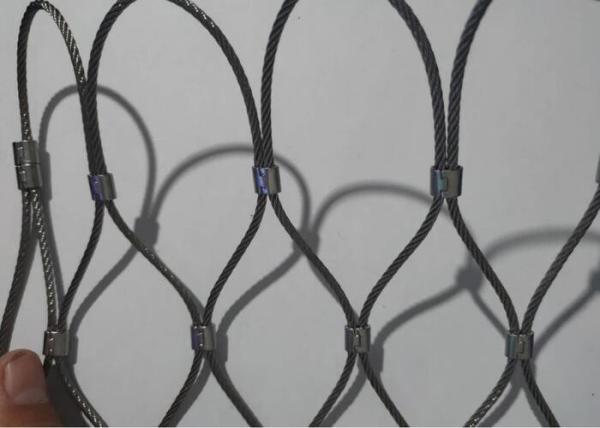

Metal rope mesh product introduction
GTW-Steel cable mesh for architectural(Steel sleeve rope mesh)is made by stainless steel ropewoven and extruded steel sleeve, the diameter of wire rope with 1.0, 1.2, 1.5, 2, 3, 4.0mm, wire rope structure 7 * 7,7 * 19 , 1 * 19, the material has 304,316,316 L, then we can also provide hot galvanizing wire mesh products. Steel sleeve material mainly adopts the stainless steel sleeve,there are other aluminum sleeve, copper, tin plated copper sleeve for the customer to choose.

1>Material: SS 304, 304L, 316, 316L
2>Wire structure: 7*7, 7*19
3>Wire diameter: 1.2mm-3.2mm
4>Mesh opening size: 20*20-120*120mm
5>Application: Wire Rope Mesh can be safely contain any species on land, in the air indoors or out.
For the construction of Animal Enclosure, Animal Cage, Aviary mesh, Bird Cage and Bird Netting.

Rope Constructin
Rope Diameter
Opening Size		 Breaking Force
Inch mm Inch mm KN
7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
7 × 7 5/64 2 3" × 3" 76 × 76 3.17
7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
7 × 7 5/64 2 2" × 2" 51 × 51 3.17
7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22

Different types

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides

Features

Stainless steel wire rope mesh, which is woven from high quality stainless steel wire rope. It has
Great advantage over ordinary wire mesh:
1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests.
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.

Packing and Shipping

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides

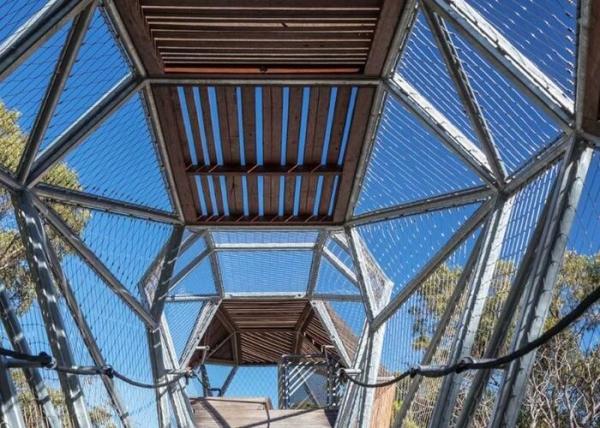

Applications

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
