304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
Specifications
Brand Name :
CHANT
Model Number :
CHANT-C 1005
Certification :
CE ISO9000
Place of Origin :
CHINA
MOQ :
5m2
Price :
USD 5-15/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m2/week
Delivery Time :
10 days
Packaging Details :
wooden case
Material :
SS304 316 316L
Wire Diameter :
1.2-4.0mm
Hole size :
30mm-300mm
Mesh Type :
Ferrule Mesh
Characteristic :
Anti-corrosion Non-rusting Anti Acid And Alkali
Length :
Customized
Name :
304 X Tend Stainless Steel Metal Rope Mesh For Anti Falling 30x30 MM
Application :
Protective, Fall Prevention
Description

304 X Tend Stainless Steel Metal Rope Mesh For Anti Falling 30x30 MM

Product Description :

The Stainless Steel cable mesh For Bridge Protection are hand-made from the stainless steel wire rope, cable Mesh Description is custom manufactured to in widths and lengths to suit the balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.

About Stainless steel rope mesh
Materials:304,304L,316,316L stainless steel wire rope
Wire rope structure:7*7 and 7*19 high quality stainless steel wire rope
Rope(mm):1.2, 1.5, 2.0, 2.5, 3.0, 4.0
Mesh:2.5*2.5, 3*3, 3.8*3.8, 4*4, 4.5*4.5, 5*5, 5.5*5.5, 6*6, 7*7, 7.6*7.6, 8*8, 10*10, 15*15, 30*30 etc. customized


Rope Constructin
Rope Diameter
Opening Size		 Breaking Force
Inch mm Inch mm KN
7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
7 × 7 5/64 2 3" × 3" 76 × 76 3.17
7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
7 × 7 5/64 2 2" × 2" 51 × 51 3.17
7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22

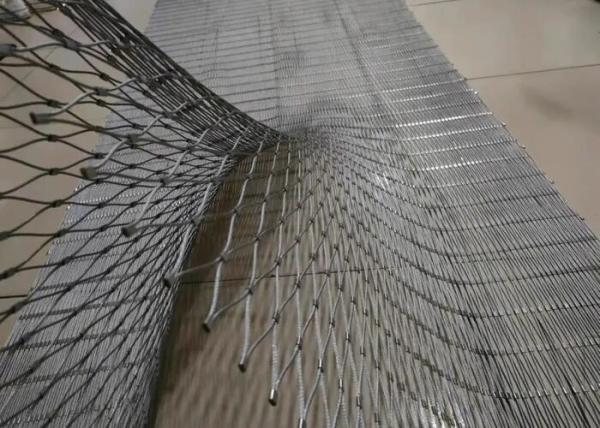

Different types

304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM

Features

Stainless steel wire rope mesh, which is woven from high quality stainless steel wire rope. It has
Great advantage over ordinary wire mesh:
1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests.
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.

Packing and Shipping

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

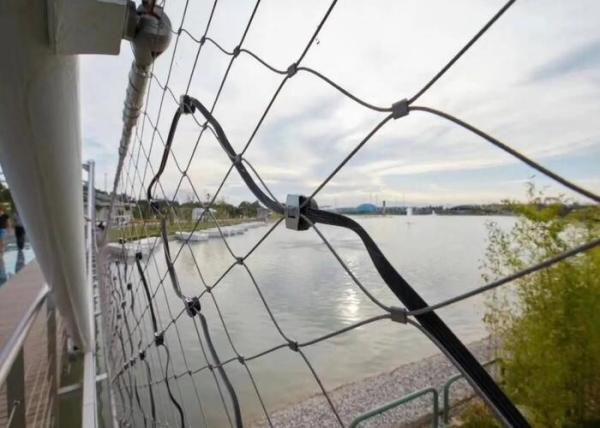

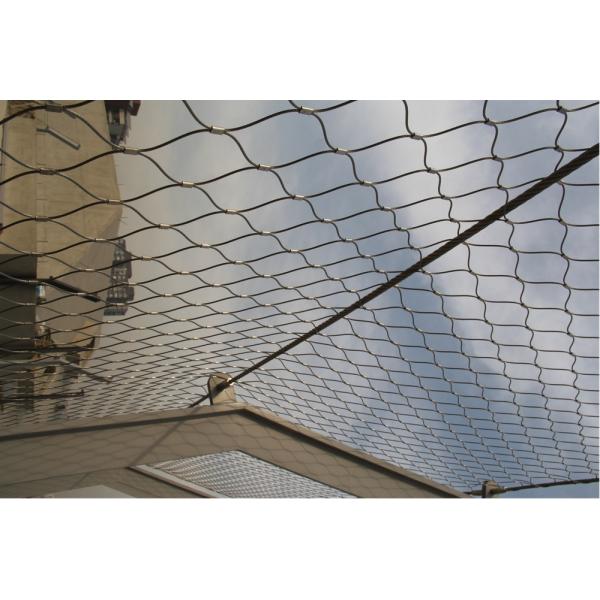

Applications

304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM

]304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
