Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh
Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh
Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh
Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh
Specifications
Brand Name :
CHANT
Model Number :
CHANT-C-1005
Certification :
CE ISO9000
Place of Origin :
CHINA
Product Name :
Metal Rope Mesh
Key Words :
matal rope mesh,wire rope mesh
Material :
Stainless Steel Wire
Specification :
1.2mm, 1.5mm, 1.6mm, 2mm, 3mm
Wire Structure :
7*7, 7*19
Aperture :
30mm, 50mm, 70mm, 80mm
Description

Stainless Steel Woven Mesh 304/316 Metal Rope Mesh for Protection

Product Description

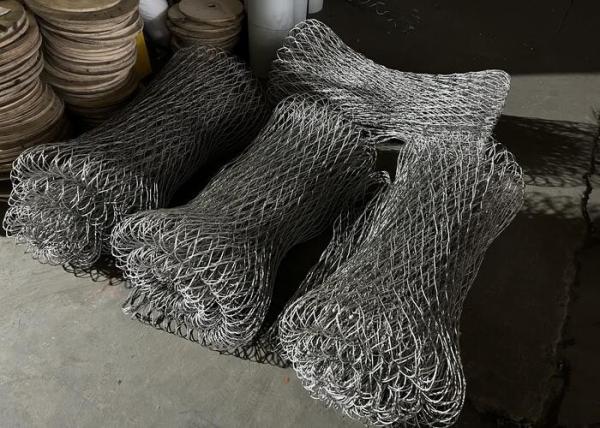

Metal Rope Mesh also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.

Standard areas
Rope diameter Mesh Width
1,2mm 25 mm - 200 mm
1,5 mm 25 mm - 200 mm
2,0 mm 30 mm - 400 mm
3,0 mm 40 mm - 400 mm

Mesh geometry

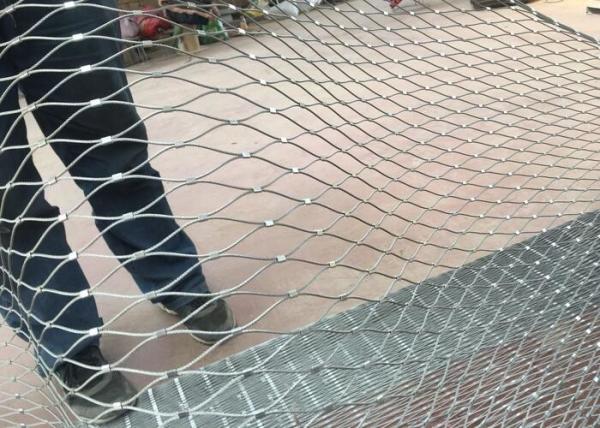

The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.

MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh

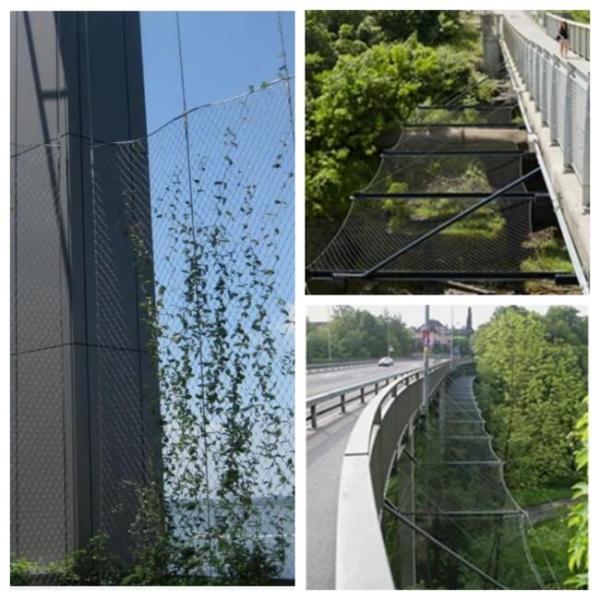

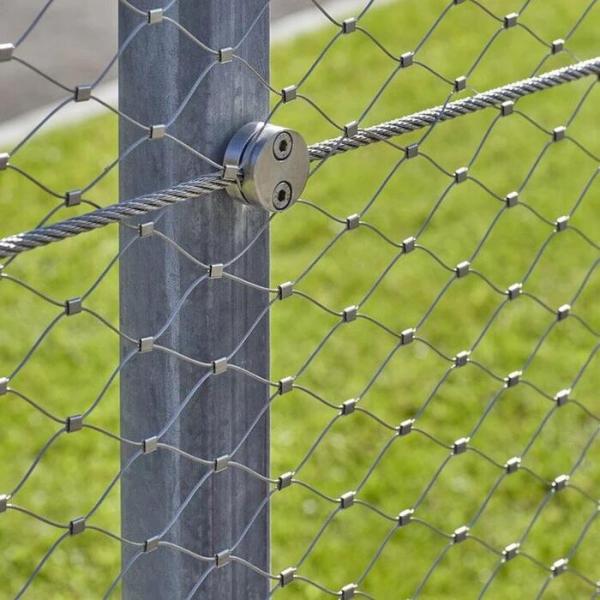

Application

Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh

Protection Metal Rope Mesh 304 / 316 Stainless Steel Woven Mesh
