Specifications
Brand Name :
CHANT
Model Number :
CHANT-04-01
Place of Origin :
China
Certification :
CE ISO9000
MOQ :
1m2
Price :
can be negotiated
Packaging Details :
wooden case
Delivery Time :
7 days
Payment Terms :
TT L/C
Supply Ability :
10000m2/week
Panel Size :
Customized In Width And Length
Mesh Hole Size :
40mm, 50mm, 60mm, 80mm, Customizable
Features :
Flexible, Durable, Corrosion Resistant
Shippment :
Express, Air Or Sea
Wire Diameter :
1.2mm-6.0mm
Type :
Inter-woven Mesh,ferruled Mesh
Material :
SS304 316 316L
Customization :
Available
Description

Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

Product Description:

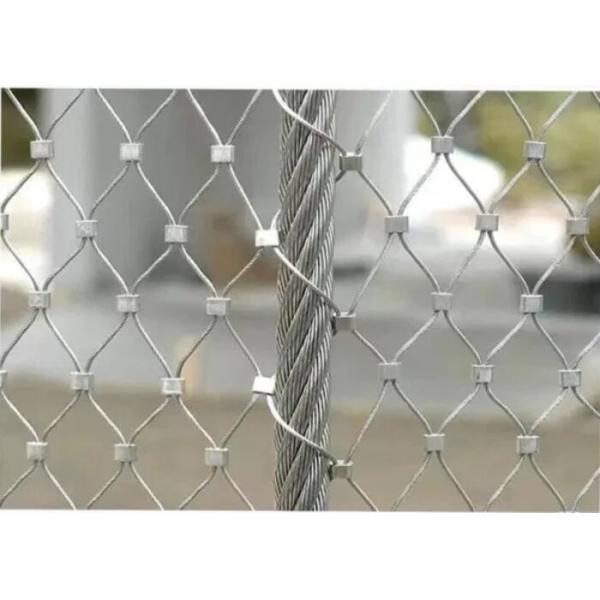

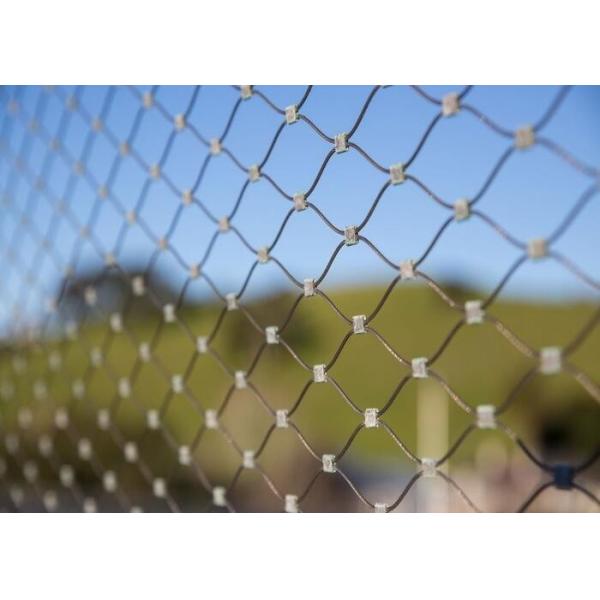

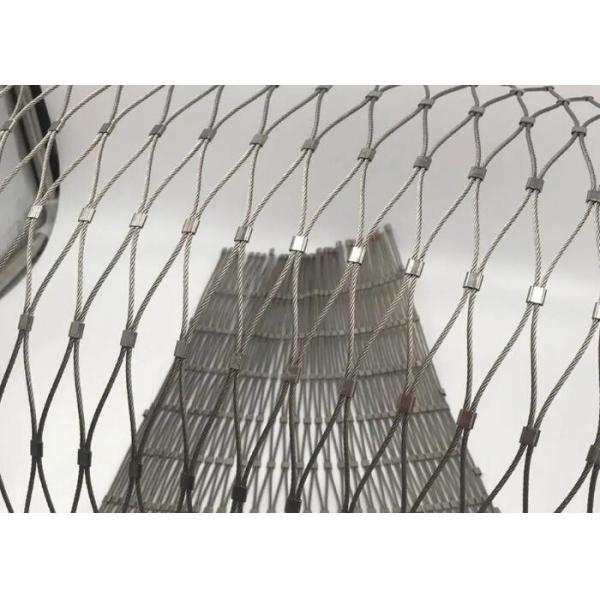

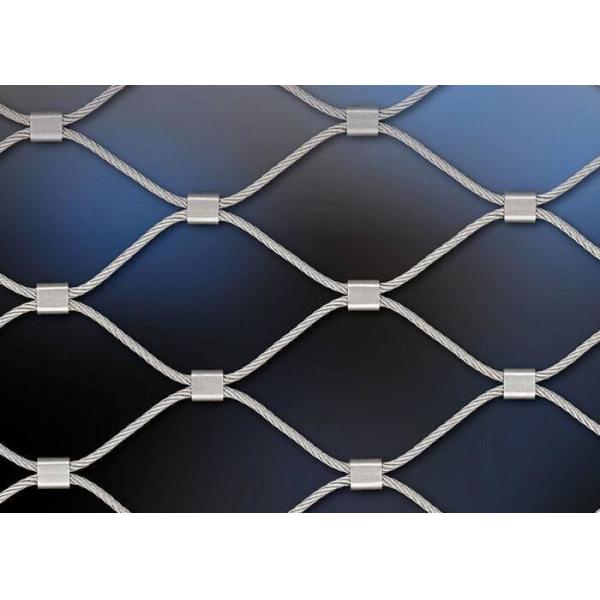

The Balustrade Cable Mesh is available in two types: Inter-woven Mesh and ferruled Mesh. The Inter-woven Mesh is made from a series of cables that are interwoven to create a sturdy and robust mesh. The ferruled Mesh, on the other hand, is made from a series of cables that are held in place by a series of ferrules, creating a strong and reliable mesh.

The Balustrade Cable Mesh is available in a range of mesh hole sizes, including 40mm, 50mm, 60mm, 80mm, and customizable options. This makes it suitable for a wide range of applications, including use as a drop safe net or backpack bag rope.

The panel size of the Balustrade Cable Mesh is also customizable, making it easy to install in a variety of settings. Whether you need a large panel to cover a wide area or a smaller panel to fit into a specific space, the Balustrade Cable Mesh can be customized to meet your specific needs.

When it comes to shipping, the Balustrade Cable Mesh can be shipped via express, air, or sea depending on your preference. This makes it easy to get the product to your location quickly and efficiently.

In conclusion, the Balustrade Cable Mesh is a versatile and reliable product that is ideal for a wide range of applications. Its high-quality material, customizable mesh hole sizes, and panel sizes make it suitable for use as a drop safe net, backpack bag rope, or Cable rope mesh. Additionally, the ability to ship via express, air, or sea makes it easy to get the product to your location quickly and efficiently.

Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN

CT-01

7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
CT-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
CT-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
CT-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
CT-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
CT-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
CT-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
CT-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
CT-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
CT-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
CT-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17
CT-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
CT-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17
CT-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
CT-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
CT-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
CT-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
CT-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
CT-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
CT-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
CT-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
CT-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
CT-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22
CT-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22

Features:

  • Product Name: Balustrade Cable Mesh
  • Type: Inter-woven Mesh, ferruled Mesh
  • Shipment: Express, Air Or Sea
  • Customization: Available
  • Finished: Polished
  • Wire Rope Construction: 7 X 7, 7x19
  • Perfect for backpack bag rope, Zoo Mesh, Aviary wire netting.
  1. High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
  2. Lightweight, high-strength, never rust, softness.
  3. Anti-corrosive, resist the rust, can be repeated use.
  4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years.
  5. The mesh size and diameter can be modif

    Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole SizeCustomizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

    Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole SizeCustomizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

Technical Parameters:

Technical Parameters Value
Product Name Cable Rope Mesh, Drop Safe Net, Zoo Mesh
Customization Available
Mesh Orientation Diamond
Type Inter-woven Mesh, Ferruled Mesh
Panel Size Customized In Width And Length
Material SS304, SS316, SS316L
Finished Polished
Breaking Load ≥ 7.38 KN
Features Flexible, Durable, Corrosion Resistant
Mesh Hole Size 40mm, 50mm, 60mm, 80mm, Customizable
Shipment Express, Air or Sea

Applications:

With a minimum order quantity of 1m2, the price of CHANT-04-01 can be negotiated, and it is packaged in a wooden case. The delivery time is estimated to be 7 days, and payment terms are TT or L/C. CHANT-04-01 has a supply ability of 10,000m2 per week.

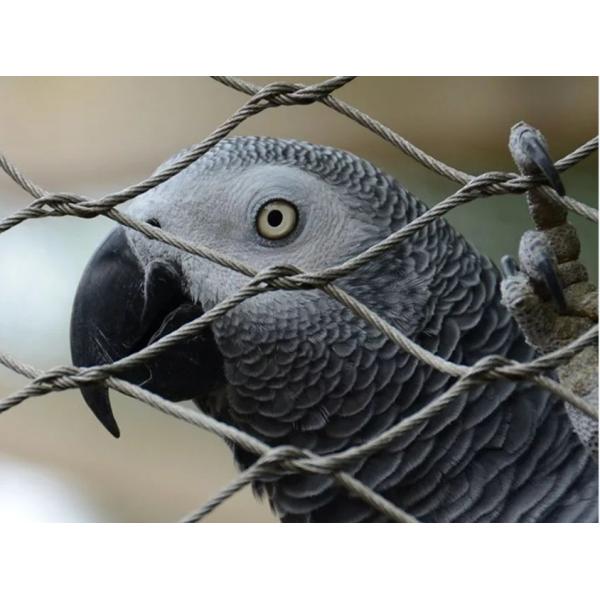

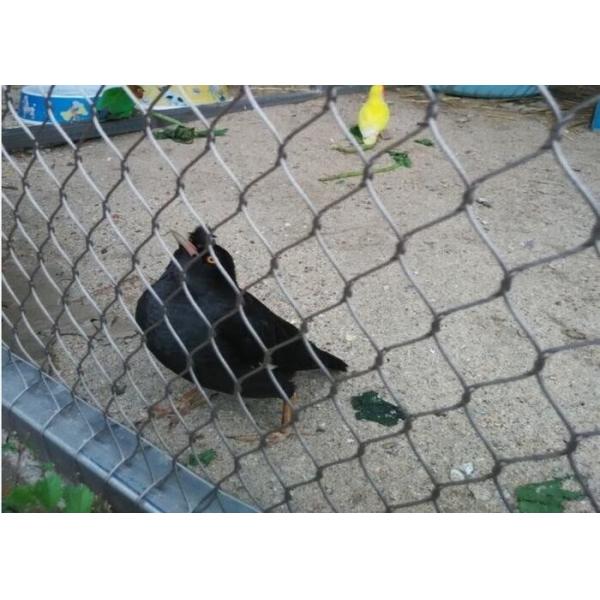

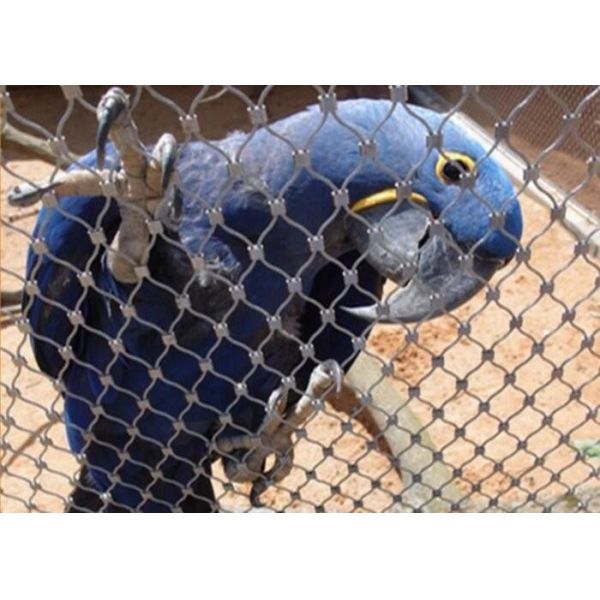

The balustrade cable mesh product has various product application occasions and scenarios. The CHANT-04-01 can be used as aviary wire netting, making it an ideal product for those who have an aviary or want to build one. The mesh can be used to create a safe and secure environment for birds, while still allowing them to move freely and have a clear view of their surroundings.

The CHANT-04-01 can also be used as a backpack bag rope. The mesh is strong and durable, making it an ideal product for those who need a sturdy and reliable rope for their backpack. The mesh is also lightweight, making it easy to carry around.

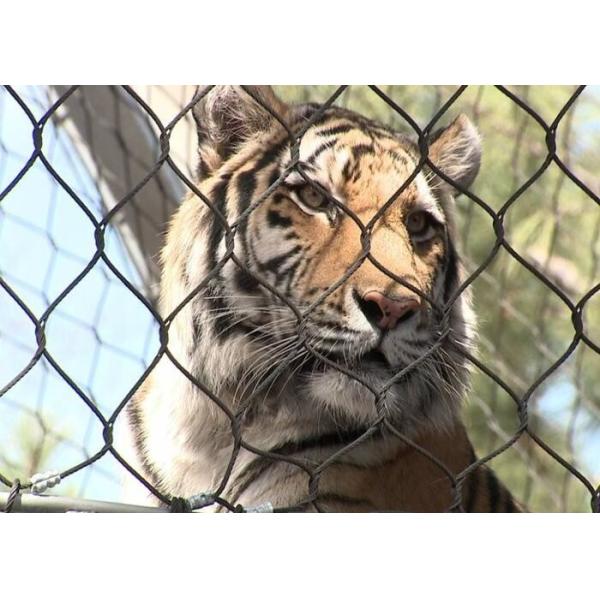

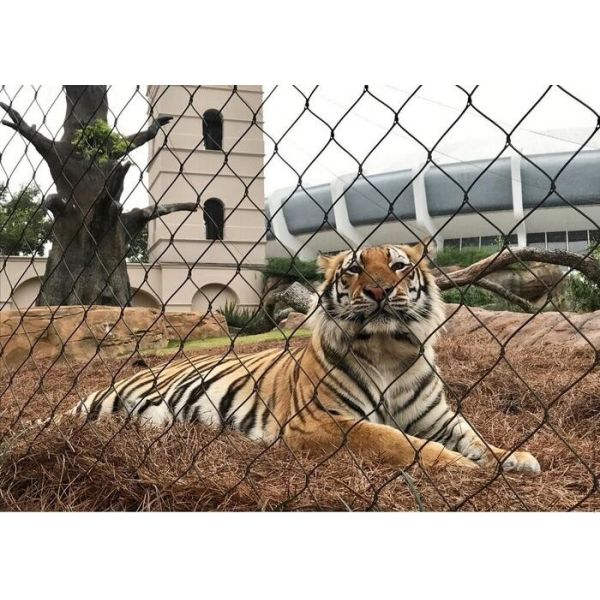

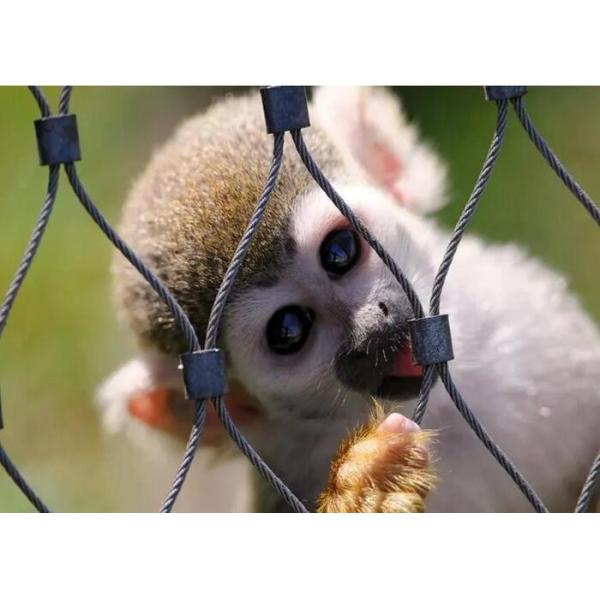

Another product application for the CHANT-04-01 is as zoo mesh. The mesh can be used to create animal enclosures that are safe and secure, while still allowing visitors to have a clear view of the animals. The mesh is also rust-resistant, making it ideal for use in outdoor enclosures.

Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole SizeCustomizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole SizeCustomizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

Customizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole SizeCustomizable Balustrade Cable Mesh with Wire Diameter 1.2mm-6.0mm and Mesh Hole Size

Customization:

CHANT-04-01 Balustrade Cable Mesh

Place of Origin: China

Certification: CE ISO9000

Minimum Order Quantity: 1m 2

Price: can be negotiated

Packaging Details: wooden case

Delivery Time: 7 days

Payment Terms: TT L/C

Supply Ability: 10000m 2 /week

Type: Inter-woven Mesh, ferruled Mesh

Mesh Hole Size: 40mm, 50mm, 60mm, 80mm, Customizable

Features: Flexible, Durable, Corrosion Resistant

Breaking Load: ≥ 7.38 KN

Shippment: Express, Air Or Sea

Product Customization Services:
