4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated
4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated
4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated
4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated
Specifications
Brand Name :
QIANTE
Model Number :
QT-A-520
Certification :
ISO9000 CE SGS
Place of Origin :
HEBEI
MOQ :
1 set
Price :
Price negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m2/week
Delivery Time :
10 days
Packaging Details :
Plywood Case
Product Name :
Gabion Box Gabion Basket
Key Words :
gabion mesh,gabion basket,cage
Hole Shape :
Hexagonal
Surface Treatment :
Hot Dipped Galvanized, PVC Coated, Galfan Wire
Aperture :
100*120mm 80*100
Application :
Gabion Mesh, Gabions, Construction Wire Mesh, Reinforcing Wall
Material :
Anti-corrosion
Description

4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated

Product Description

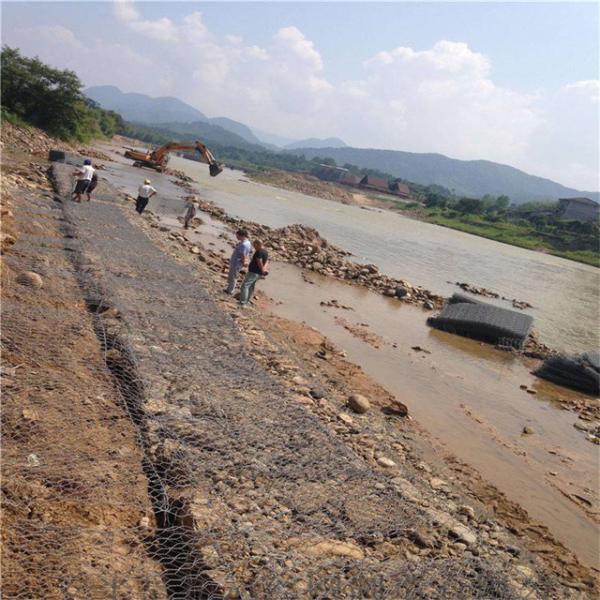

Gabion Basket are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

Type 1 Weave Gabion baskets
Material galvanized wire ,galfan wire and PVC coated wire ,
Gabion mesh wire 2.2mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm,etc.
Gabion selvedge wire 2.4mm,2.7mm,3mm,3.4mm,4mm,etc.
Gabion lacing wire normally 2.2mm
Gabion box mesh hole 6*8cm,7*9cm,8*10cm,10*12cm,11*13cm,12*15cm,etc.
Zinc coating 40-260g/m2
Gabion box PVC color darkgree, gray ,black , etc.
Type 2 Welded gabion box
Finishing heavy duty galvanized or galfan galvanized
Surface treatment electro galvanized, hot-dipped galvanized, pvc coated, stainless steel
Wire diameter 2.7--5mm
Mesh size/opening 37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm
Zinc coating 40-290g/mm2

Specification Of Gabion Basket
Gabion size
(m)
Wire diameter
Mesh opening
Surface treatment
Mesh wire
(mm)
Selvage wire
(mm)
Tie wire
(mm)
2×1×0.5
2.0
2.2
2.4
2.7
3.0
2.4
2.7
3.0
3.4
3.9
1.8
2.0
2.2
60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm
Galvanized
Galfan
PVC coated
PE coated
2×1×1.0
3×1×0.5
3×1×1.0
4×1×1.0
6×1×1.0
2×1×0.3(Mattress)
3×1×0.3(Mattress)
All sizes can customized according to your request

4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated

4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated

4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated

4.0*1.0*1.0 Size Rock Gabion Netting Galvanized Gabion100X120mm Mesh Galfan And PVC Coated

Packing details:

1) Outside with plastic film

2) In bundle

3) As per customer's special request

Shipping:

Samples will be shipped by express service - DHL, EMS, UPS, TNT or Fedex.

1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;

2, By air to the air port, usual 3-5 days arrives;

3, By sea to the sea port, usual 25-45 days
