SUS304 Steel Processing Metal Stamping Parts OEM Sheet Metal Parts For Plug Board Housing

Metal Stamping Die Capability

· Die Insert Tolerence: +/-0.008mm

· Stamping Speed: 1000SPM/min

· Tooling Life: 50-300 million times

METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

Metal stamping includes a variety of sheet-metal forming manufacturing processes, such
as punching using a machine press or stamping press, blanking, embossing, bending, flan
ging, and coining. This could be a single stage operation where every stroke of the press pro
duce the desired form on the sheet metal part, or could occur through a series of stages.
Laser cutting technology is widely used in the processing of metal and non-metallic materials, which can greatly reduce the processing time, reduce the processing cost, and improve the quality of the workpiece. Modern lasers have become the "sword" of "cutting iron 1 like mud" that people fantasized about pursuing. Taking Jinyun Laser C02 laser cutting machine as an example, the whole system is composed of control system, motion system, optical system, water cooling system, smoke exhaust and blowing protection system, etc., using advanced 1 numerical control mode to achieve multi-axis linkage and laser energy cutting not affected by speed, while supporting DXP, PLT, etc. CNC and other graphics formats and enhanced interface graphics processing capabilities; The imported 1 servo motor and transmission guide structure with superior performance achieve good motion accuracy at high speed.Laser cutting is achieved by using the high power density energy generated by laser focusing. Under the control of the computer, the laser is discharged through the pulse, so as to output the controlled repeated high frequency pulsed laser, forming a certain frequency, a certain pulse width of the beam, the pulsed laser beam through the light path conduction and reflection and through the focusing lens group focused on the surface of the processed object, forming a fine, high energy density spot, the focal spot is located near the surface to be processed, to the instant high Warm melt or vaporize the material being processed. Each high-energy laser pulse instantly sputtered a small hole on the surface of the object, under the control of the computer, the laser processing head and the processed material according to the pre-drawn graphics for continuous relative motion dot, so that the object will be processed into the desired shape. When cutting, a stream of air coaxial with the beam is ejected from the cutting head and the melted or vaporized material is blown out from the bottom of the cut (Note: If the blown gas and the cut material produce a thermal reaction, this reaction will provide additional energy required for cutting; The airflow also cools the cut side, reduces the heat affected zone and ensures that the focusing mirror is not contaminated). Compared with traditional plate processing methods, laser cutting has the advantages of high cutting quality (narrow incision width, small heat-affected zone, smooth incision), high cutting speed, high flexibility (can cut any shape at will), and wide material adaptability.
Tool&Die​ Profile

We accept your any request on shipment.By air, by sea,and by Express are acceptable.

Packing:
Round Head Rivet Packing: Plastic bags for inside packing; small custom-made cartons for inside packing; big hard carton for outside packing; pallet packing for shipping; or as per your requirements.
Q1:Where can I get product & price information?
A1:Send us inquiry e-mail, we will contact you when we receive your mail.
Q2:How long can i get the sample?
A2:Depends on your specific items, within 4-7 days is required generally.
Q3:What kinds of information you need for quote?
A3:Kindly please provide the product drawing in PDF, and will be better you can provide in STEP or IGS.
Q4: What are the payment terms?
A4: We accept 50% as payment deposit, when the goods is over, we take photos for your check and you then pay the balance.

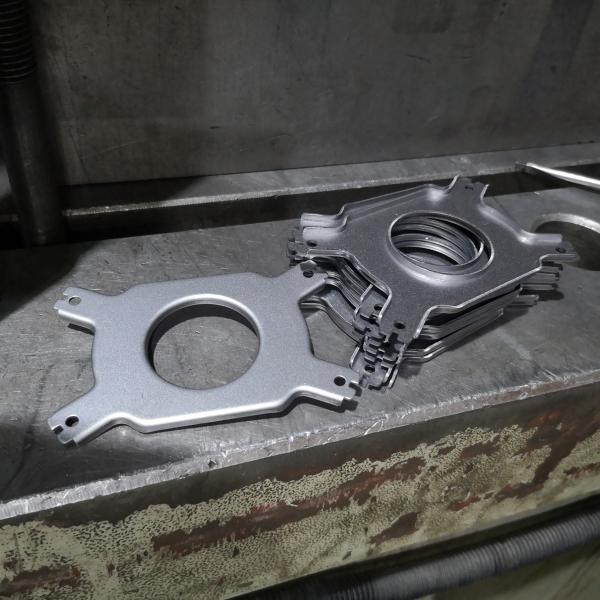

Stamping part Shows:
