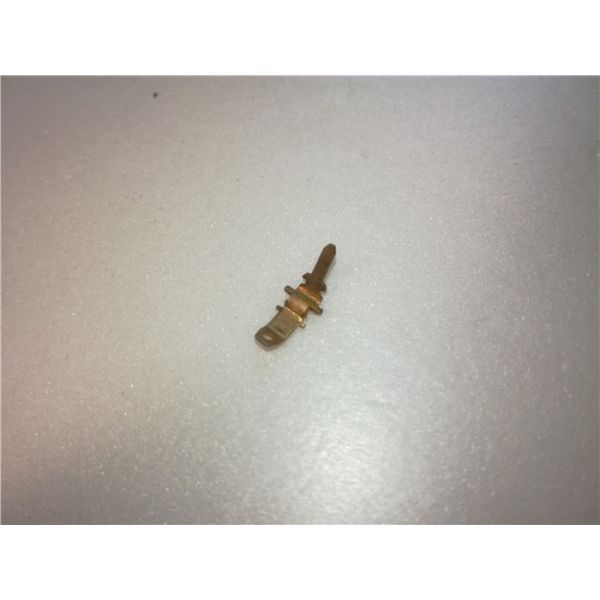

Manufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessories
Manufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessories
Manufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessories
Manufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessories
Specifications
Brand Name :
METS
Place of Origin :
XIAMEN.CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
TT,LC
Supply Ability :
1000000
Delivery Time :
5-20days
Packaging Details :
PVC bag, wooden case,carton
Type of die :
Progressive die
Production material :
brasss
Mould life :
1,000,000-3,000,000 shots
press force :
35Ton
Tolerance :
±0.02
Main tooling material :
SKD61,SKH9
Cavity :
4rows
Processing way :
WEDM, CNC,grinding
Description

Samll progressive die stamping mould for pin connector components

Stamping Capability

A: The min. pitch: 0.5mm

B: Highest stamping speed: 600SPM/min or more

C: Precision: ±0.003mm

D: Rate of hole diameter and thickness 0.85:1

E: Stamping material thickness:0.05-2.0mm

F: zero or less loss of material use.

Terminal Blocks - Headers, Plugs and Sockets,PCB Terminal Blocks,
Special Type Terminal Blocks, all those toolings could make as progressive die.The tool room was designed and developed to support the needs of our team by providing the best in class tooling to our discerning client base. At the heart of this venture is a CNC machining cell that was engineered using lean principles. The team that developed the cell focused on the elimination of waste. In addition to the CNC cell, the tool room is supported by several Wire EDMs, and waterjet cutting that can create development blanks as well as speed up the tool machining process.

METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies. (see below for the full software list & details). We have the resources to build a die for any application. When high volumes of production are expected, we can build a dependable tool with longevity in mind. We can also produce low-cost tools for prototyping and sampling applications. Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

Tool&Die​ Profile

Part thickness 0.5-2mm
Spare parts for Dies and insets Accept JIS, AISI, DIN standard. From MISUMI, PUNCH, Mold Master, LKM to DANLY, FIBRO, Dyton press and so on
Die type Progressive deep drawing die ,progressive tool, stamping forming die,compound die, ect.
Die material YG15,YG20,DC53, SKH-9, SKH51, SKD11,D2,
Die use Home appliance (automotive parts, household metal parts,electric metal parts,terminal block parts)
Part material Cold rolled steel,stainless steel,copper,aluminum
Machinery Equipment Milling, Grinding, CNC, EDM, WEDM, Forming Machine, Precision flat milling,Punching machine,
Die precision High precision machining, minimum 0.003mm
Trial out press 25~180T
First trial sample 5-10 sets free

How to start a new mould business?

1. Quote According to samples/picture/design, 2/3 D drawing and specification
↓ 　
2. Discussion Mould core/base material, cavity number, runner type, price, payment, etc
↓ 　
3.PI Approval for all terms
↓ 　
4. Deposit 50% by T/T
↓ 　
5. Product Design Our engineer will check product drawing, and pick up the unreasonable terms
↓ 　
6. Mould Design Our engineer will do DFM and send PPT to customers for approval
↓ 　
7. Mould making We start to make mould after customers confirmed the drawing
↓ 　
8. Mold Testing We will express trial samples to customers by DHL for confirmation
↓ 　
9. Mould repair We will modify the mould according to customer’s feedback
　↓ 　
10. Mould approval Express trial samples by DHL again till products approval
↓ 　
11. Balance payment 50% by T/T before delivery
↓ 　
12. Delivery Delivery by sea or air, all documents as customer required

We accept your any request on shipment.By air, by sea,and by Express are acceptable.

　 By Express By Air By Sea
West Europe 3-5 days 4-6 days 22-30days
USA &Canada 3-4days 5-6 days 16-27days
South Asia 3-5 days 3-7 days 12-20 days
Japan&South Korea 2-3 days 3-4 days 10-13 days
Russia -------- --------- 30-40 days

Packing:

First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.Or as your required.

FAQ

1.Q: Are you a factory or trading company?
A: We are a factory,a professional metal stamping die and hardware stamping manufactuer.

2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen, Fujian Province, China,We warmly welcome all our clients, from home or abroad, to visit us!

3.Q: What is the material of your tooling?
A: The material are D2,YG15,DC53,SKD11,D2,SKH-9,SKH-51

4.Q: The maximum press your fatory have available ?
A: There are 25T,35T,45T,60T,80T,110T,160T punching machines in our factory.

5.Q: What about the machines of your factory?

A: Our factory owns a full set of Machining equipment, include large CNC machning center,Sodic EDM machning,import EDM-HS,Radial drilling machines,Milling machines,Grinders,three-D inspection etc.

6.Q: How does your factory do regarding quality control?
A: Quality is priority. METS people always attach great importance to quality controlling from the very beginning to the very end. All the moulds,the QC measure with three-D measuring equipments regularly.

To get quick response, please contact us by mail directly

Product name: non-standard parts customized processing
Production address: Xiamen, Fujian
Machining accuracy: tolerance up to ±0.01mm
Processing materials: according to customer requirements
Production process: cold pier/drilling/stamping/grinding/tapping/turning/milling
Proofing period: 1-7 days

Stamping die Shows:

Manufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessoriesManufacturers produce precision shrapnel copper insert sleeve Insert socket wall switch socket accessories Hardware accessories
