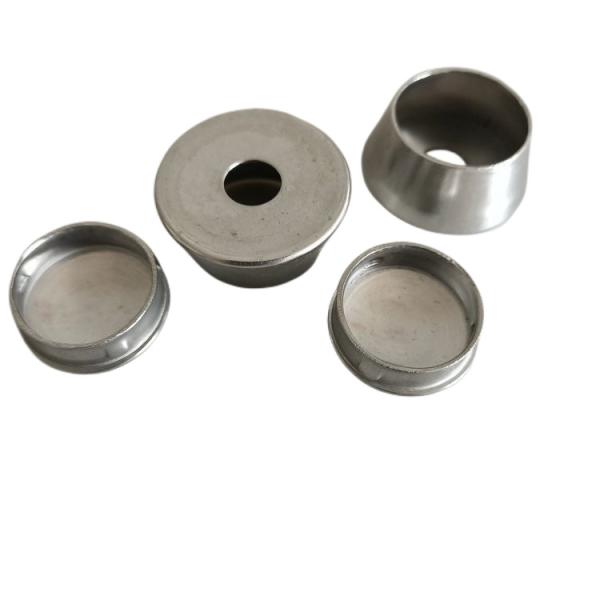

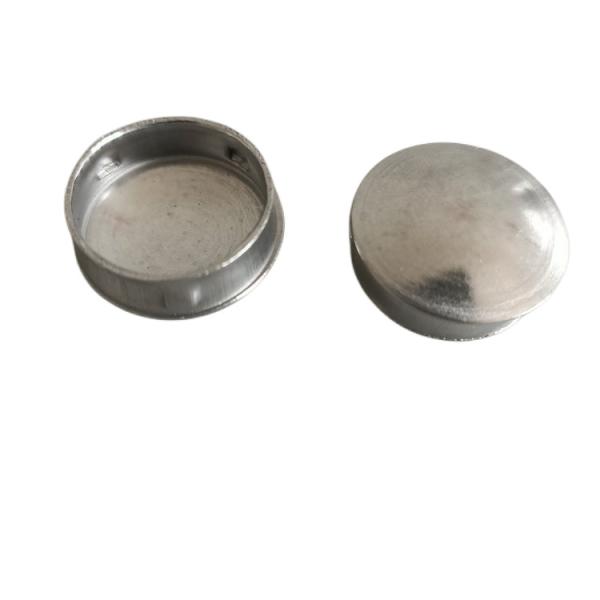

Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts
Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts
Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts
Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts
Specifications
Brand Name :
HaoXinCheng
Model Number :
Deep Drawn Parts
Certification :
CE & ISO
Place of Origin :
Cangzhou, Hebei
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000000Pcs/Per Month
Delivery Time :
7~15 working days
Packaging Details :
Carton,Pallet
Product name :
Copper Deep Drawing Drawn Parts
Material :
Soft Metals Suitable for Stamping and Drawing
Mould :
Multistep Progressive Dies,Stretch Mold
application :
Auto Stretch Parts, Auto Parts
Item :
Deep Drawn Stamping Part
Certificate :
ISO9001:2008
Surface :
Suitable Surface Finish as Per Requirements
Thickness :
0.1mm-12mm
Description

Sheet Metal Stamping Aluminium Copper Deep Drawing Drawn Parts

In the processing of precision drawing parts, due to the different stress and deformation of each part in the drawing process, some unique phenomena appear in the drawing process:


Precision stretched parts are wrinkled. When stretched, the tangential compressive stress of the flange part exceeds the anti-buckling ability of the material, and the material of the flange part will become unstable and bulge.

Uneven deformation in the stretching process: The thickness of the material at the stretching place changes, and the change is uneven. The material thickness at the outer edge of the flange varies the most. After the drawing part is formed, the blank material of the workpiece is the thickest and gradually becomes thinner inward, while the material at the bottom of the material becomes thinner due to friction, preventing the elongation and deformation of the material. However, the bottom fillet part of the material stretching is always subjected to the top force and bending of the punch fillet, and is always subjected to the tensile stress running through the stretched part, resulting in the largest thinning here. The circular side wall plays the role of transmitting the tensile force of the punch to the flange. When the radial tensile stress in the force transmission area exceeds the material limit, the phenomenon of pulling will occur.

Product parameters:

Die Design & Open We use the most advanced die design software Auto CAD, Solidworks, UG (dwg), we open dies and tools ourselves.
Our Capabilities: tooling manufacturing, stamping, deep drawing, welding, tube bending and surface coating service
Range of Materials: Metal sheets include carbon steel, stainless steel, alloy steel, aluminum, copper, etc.
Range of Material Thickness: It is 0.2-10mm for punching, stamping, forming, no thickness limit for welding.
Processing Range: Progression die, Cutting, Stamping, Deep drawing, Bending, Punching, Threading, Welding, Tapping, Riveting, Grinding
Surface Range: Plating(zinc, nickel, chrome), electrophoresis, painting, powder coating, electrostatic spraying, hot dip galvanized, dacromet, anodic oxidation, blacking, polishing, anti-rust oil
Packaging Our products are all packed in strong cartons and pallets/wooden cases to ensure zero damage.

Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing PartsCopper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts

Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts

Copper Aluminium Stamping Parts 0.1mm-12mm Metal Deep Drawing Parts
