Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm
Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm
Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm
Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000Square Meters
Price :
Negotiable
Supply Ability :
100000Square Meters Per Month
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Material :
Low carbon steel, stainless steel
Thickness :
0.3-0.8mm
Shape :
Square / Rectangular
Surface treatment :
Hot Dipped Galvanized
Usage :
platform , driveway, industry platform ,building
Product Name :
galvanized 32*5mm steel walkway grating
Type :
flat steel bar ,serrated steel bar
Certificate :
ISO9001:2015
Sizes :
Customized
Package :
By steel pallet
Application :
Floor walkway,industrial platform,stair tread,metal ceiling
Payment Terms :
T/T,L/C
Description

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

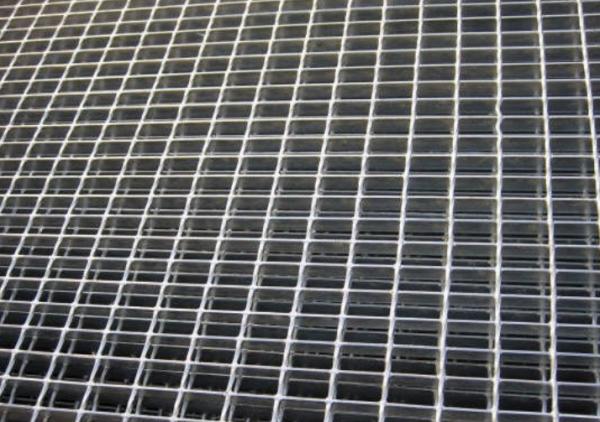

Description of Steel Grating Walkway

Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,stainless steel floor plate generally use carbon steel production, appearance of hot dip galvanized, can serve to prevent the role of oxidation, can also be made of stainless steel .

Materials: mild steel or stainless steel.

Surface treatment: untreated, painting or hot dip galvanizing.

Bearing bar specification:20*3 to 100*6

Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended

Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.

The Maximun length of black panel is 7350mm.

Surface Treatment of Steel Grating Walkway


Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.

Specifications of Steel Grating Walkway

The steel bar size and specification ,please check the following table:

Specification of galvanized steel grating

steel walkway and floor Steel grid plate and Steel frame lattice in metal building materials
Type Welded steel grating, pressure locked, socket welding
Material Low carbon steel, stainless steel, aluminum
Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
Bearing bar pitch(center to center) 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.or accord to the client’s request
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.

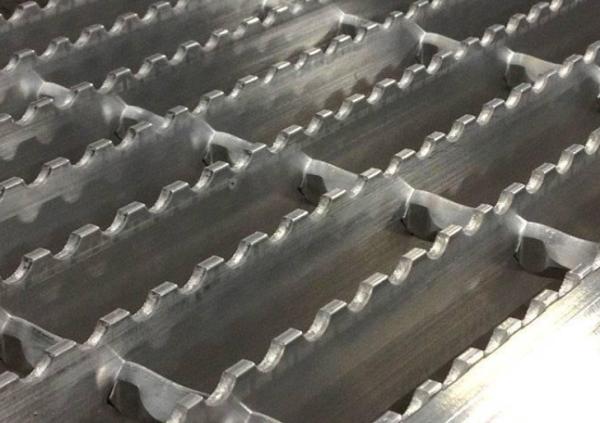

Flat bar type Plain, Serrated (tooth-like),

Application of Steel Grating Walkway

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :

1 Power plant

2 Chemical plant

3 Oil Refinery

4 Steel plant

5 6 Paper-making factory

7 Cement plant

8 Civil engineering

9 Wastewater treatment

10 Pharmacy industry

11 Food processing.

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm

Q235 Low Carbon Steel Walkway Grating Serrated Type For Stair Tread 25*5mm
