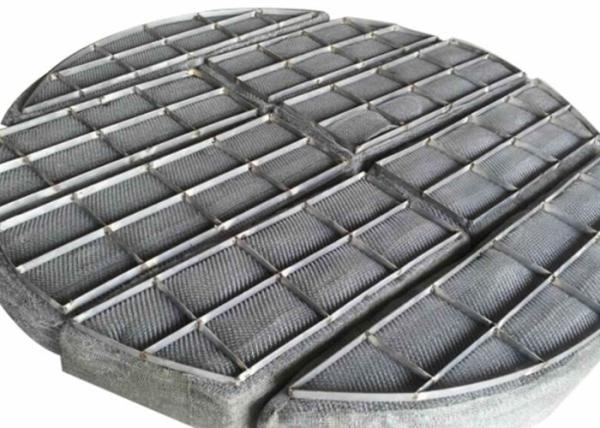

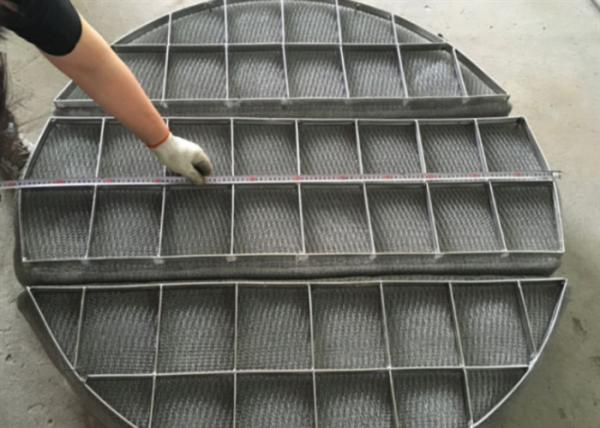

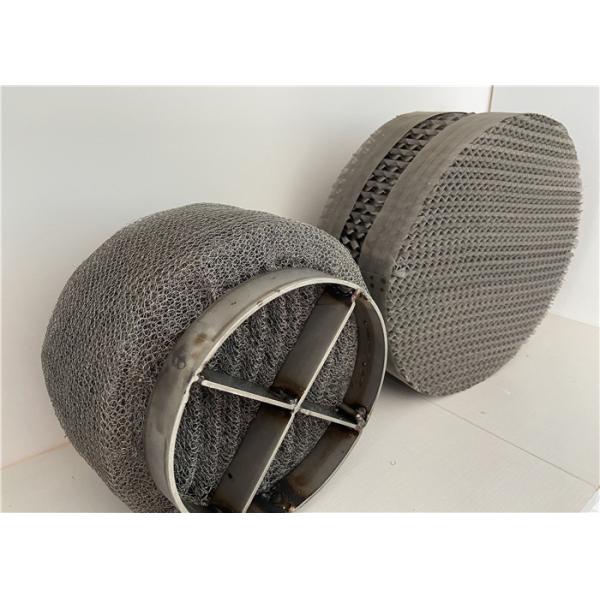

Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation
Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation
Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation
Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation
Specifications
Brand Name :
Yuanhai
Model Number :
YH-06
Place of Origin :
Hebei Province,China
Certification :
ISO9001:2015
MOQ :
5 PCS
Price :
Negotiable
Packaging Details :
By wooden box
Delivery Time :
10 DAYS
Payment Terms :
T/T,L/C
Supply Ability :
10000 ㎡ 7 days
Product Name :
Demister Pad
MOQ :
1 Piece
Filter Rating :
99.9%
Port of Loading :
Xingang Port,China
Length :
Customized
Description

Stainless Steel 304 316 Wire Mesh Demister Pad for Gas-liquid Separation

Product Description:

Wire mesh demister (also known as wire mesh defogger, or bubble trap) is an incredibly efficient device for separating gas from liquid in a variety of industries. It is most often used in chemicals, petroleum, sulfuric acid, pharmaceuticals, light industry, metallurgy, machinery, construction, aviation, maritime transport and environmental protection. It is especially useful as a gas-liquid separation device for ethylene, synthetic ammonia, chemical fiber, and similar imported production equipment. The wire mesh demister is especially adept at separating droplets with a diameter of between 3 and 5 μm.

Specifications:

(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε
Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320

(2) High Penetration

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε
Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217

(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε
Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484

Features:

This product has a high removal efficiency and a negligible pressure drop, with less than 25mm of water gauge.

No maintenance or service is needed and there are no corrosion, temperature or shape limitations either. It is also easily installed in existing vessels, with no limitation on size or shape.

Moreover, its features include neat and precise filtering precision, thermal and shock resistance, high compressive strength, corrosion and rust resistance, and wear-resistance.

Technical Parameters:

Product Name Demister Pad For Liquid And Gas Seperation, SS Demister Pad, Wire Mesh Demister Pad
Place of Origin Hebei Province,China
Type Filter
Price Negotiable
Width Customized
Thickness Customized
Keyword Stainless Steel Wire Mesh Demister
Brand Name Yuanhai
Length Customized
Filter Rating 99.9%

Applications:

]The technology of distillation, absorption, evaporation and filtration is widely used in many different industries, such as petroleum, chemistry, metallurgy, machine, pharmaceuticals, automobile and environmental protection.

This technology has many benefits, such as eliminating entrainment and foam from gas and liquid.

Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid SeparationStainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation

Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation

Stainless Steel 304 316 Wire Mesh Demister Pad For Aviation Gas Liquid Separation

Support and Services:

Wire Mesh Demister Pad Technical Support and Service

We provide comprehensive technical support and service for our Wire Mesh Demister Pad products. Our team of experts can help you select the right product that meets your needs. We can also provide installation guidance, troubleshooting, and maintenance advice.

Our customer service representatives are available to answer any questions you may have about our products. We strive to make the process of selecting and purchasing our products as easy and hassle-free as possible.

We offer a variety of warranty options for our Wire Mesh Demister Pad products, including limited lifetime warranties. We also provide repair and replacement services for defective items.

If you ever have any questions or concerns about our Wire Mesh Demister Pad products, please don't hesitate to contact us. We are always here to help.

FAQ:

Q1: What is the brand name of the Wire Mesh Demister Pad?
A1: The brand name is Yuanhai.
Q2: What is the model number of the Wire Mesh Demister Pad?
A2: The model number is YH-06.
Q3: Where is the Wire Mesh Demister Pad manufactured?
A3: The Wire Mesh Demister Pad is manufactured in Hebei Province, China.
Q4: Does the Wire Mesh Demister Pad have a certification?
A4: Yes, the Wire Mesh Demister Pad has an ISO9001:2015 certification.
Q5: What is the minimum order quantity for the Wire Mesh Demister Pad?
A5: The minimum order quantity for the Wire Mesh Demister Pad is 5 PCS.
