Chemical Industry 90% Stainless Steel Wire Mesh Filter
Chemical Industry 90% Stainless Steel Wire Mesh Filter
Chemical Industry 90% Stainless Steel Wire Mesh Filter
Chemical Industry 90% Stainless Steel Wire Mesh Filter
Chemical Industry 90% Stainless Steel Wire Mesh Filter
Chemical Industry 90% Stainless Steel Wire Mesh Filter
Specifications
Brand Name :
YuanHai
Model Number :
YH-32
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
30 Square Meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Square Meter/Square Meters per Month
Delivery Time :
3-10days
Packaging Details :
packing in roll and plastic inside and wooden case outside or as your requirement
Material :
Stainless Steel 302,304,316,304L,316L,321
Weaving :
Plain,twill or dutch
Usage :
Petro, chemical, air,liquid filter
Wire diameter :
0.02-2mm stainless steel wire mesh
Mesh Count :
40-350 mesh
Filter Rating :
90%
Description

Stainless Stee 304L 316 Wire Mesh Filter For Chemical Industry


Product Description

Stainless steel mesh is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing, smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection. Stainless steel mesh is mainly used in hospitals, pasta, meat barbecue, living basket, fruit basket series products, also used in some industries for filtering and screening.

Material
Stainless Steel Mesh For Filter Cloth
Material
SS 302,SS 304,SS 316 ,SS 304L, SS 3016L ect
Wire dia
0.017mm-5mm


Weave

Type
Plain weave can be woven from 1X1mesh to 635X635 mesh
Plain Dutch weave can be woven from 10X64mesh to 80X700 mesh
Twill Weave can be woven from 20X250mesh to 400X2800 mesh

Product Specification

Stainless Steel Filter Mesh
Mesh Wire Dia.(Inch) Aperture(Micron)
8*85 0.014*0.0126 250-255
12*64 0.024*0.0165 200-205
14*88 0.02*0.013 150-155
20*150 0.0098*0.007 100-105
24*100 0.015*0.01 80-85
30*150 0.009*0.007 65-70
40*200 0.007*0.0055 55-60
50*250 0.0055*0.0045 40-45
80*400 0.0049*0.0028 35-40

Feature

Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30-635mesh.
Common Width:0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh:
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.

Application

Petroleum, petrochemical equipment, such as the reactor of petrochemical equipment.

Sulfuric acid storage and transportation equipment, such as heat exchangers;

Power plant flue gas desulfurization device, main parts are: absorption tower body, the flue, door plank, internal parts, spray system, etc;

Scrubber and fan in the organic acid processing system;

Water treatment plant, water heat exchanger, papermaking equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry and other chemical equipment, pressure vessel, food equipment;

Pharmaceutical factory: centrifuge, reactor, etc.

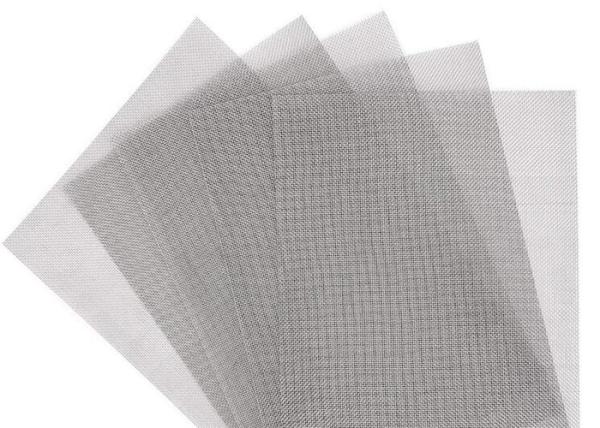

Product Show

Chemical Industry 90% Stainless Steel Wire Mesh Filter
