410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
Specifications
Brand Name :
YuanHai
Model Number :
YH-32
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
30 Square Meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Square Meter/Square Meters per Month
Delivery Time :
3-10days
Packaging Details :
packing in roll and plastic inside and wooden case outside or as your requirement
Material :
Stainless Steel 302,304,316,304L,316L,321
Weaving :
Plain,twill or dutch
Feature :
Corrosion Resistance
Mesh Count :
10-600 mesh
Certificate :
ISO9001:2015
Application :
Petro, chemical, air,liquid filter
Description

Stainless Steel 410/430 Wire Mesh Corrosion Resistance


Product Description of Stainless Steel Wire Mesh Filter


Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade's unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

Material List

Material
Stainless Steel Mesh For Filter Cloth
Material
SS 302,SS 304,SS 316 ,SS 304L, SS 3016L ect
Wire dia
0.017mm-5mm


Weave

Type
Plain weave can be woven from 1X1mesh to 635X635 mesh
Plain Dutch weave can be woven from 10X64mesh to 80X700 mesh
Twill Weave can be woven from 20X250mesh to 400X2800 mesh

Product Specification of Stainless Steel Wire Mesh Filter

Stainless Steel Wire Mesh
Mesh/inch Wire Diameter
(mm)		 Aperture
(mm)		 Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m

Weave Style:

Plain Weave ,Twill Weave,Dutch Weave,etc.

Feature of Stainless Steel Wire Mesh Filter

Certainly the biggest benefit of woven stainless steels is the high resistance in corrosion. Low-alloy steel can resist corrosion at normal atmospheric conditions where high-alloy steels can resist severe circumstances like; low/high temperatures, high pressures, acids, alkaline solutions and so on.

Application of Stainless Steel Wire Mesh Filter

  • Petroleum, petrochemical equipment, such as the reactor of petrochemical equipment.

    Sulfuric acid storage and transportation equipment, such as heat exchangers;

    Power plant flue gas desulfurization device, main parts are: absorption tower body, the flue, door plank, internal parts, spray system, etc;

    Scrubber and fan in the organic acid processing system;

    Water treatment plant, water heat exchanger, papermaking equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry and other chemical equipment, pressure vessel, food equipment;Pharmaceutical factory: centrifuge, reactor, etc.

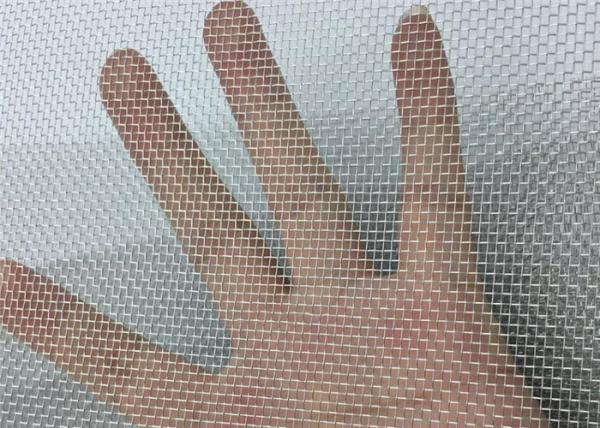

Product Show of Stainless Steel Wire Mesh Filter

410 Corrosion Resistance 5mm Stainless Woven Wire Mesh
