Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50 Square Meters
Price :
Negotiable
Supply Ability :
1000000Square Meters Per Month
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Material :
Q235 / Stainless Steel
Plate Thickness :
3-10mm
Cross Bar Spacing :
50mm,100mm or customized
Keyword :
Grating Plate
Surface Treatment :
Hot Dipped Galvanized
Feature :
Anti-corrosion
Description

Galvanized Steel Grating Storm Drain Cover Floor Grating Construction Material

Grating Trench Drain Cover Description

Trench Drain Cover Gratings are made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

Grating Trench Drain Cover Specification

Common Specification of Steel Grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,

Mild steel & Low carbon steel, etc

Bearing Bar

(Width x Thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8''

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing

(1) Bandage and Paperboard: Generally applies to neat steel plate;

(2) Screw Locking Method: Use 4 screw rods through the aperture of steel grid for high strength;

(3) Steel Pallet: Traditional export packing.
Remarks: Special Material, Special High Zinc Coating and New Style can be Customized.

Grating Trench Drain Cover Advantage

Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.

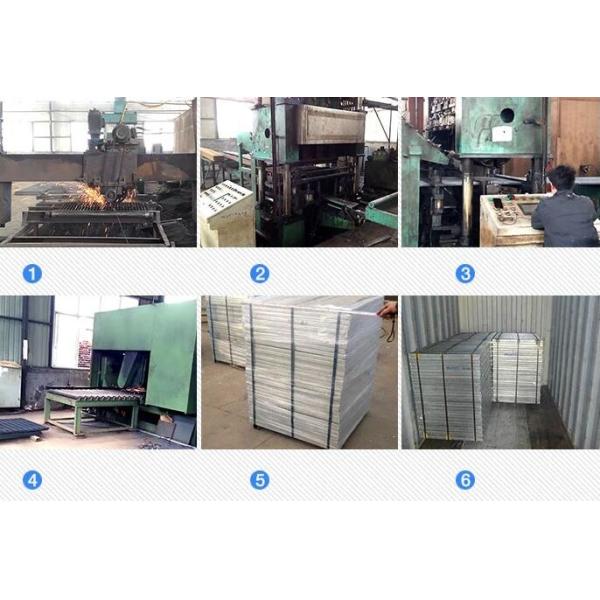

Drain Cover Floor Walkway Mesh Process

Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion

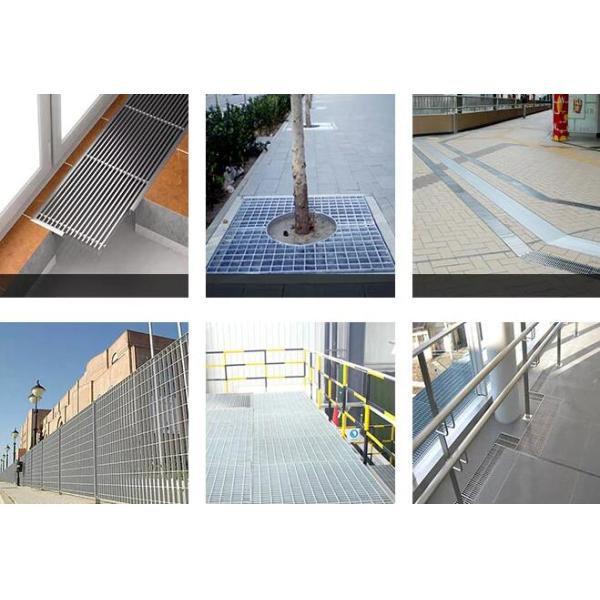

Product Application

Storm Drain Cover Floor Walkway Mesh Grating Construction Material Anti Corrosion
