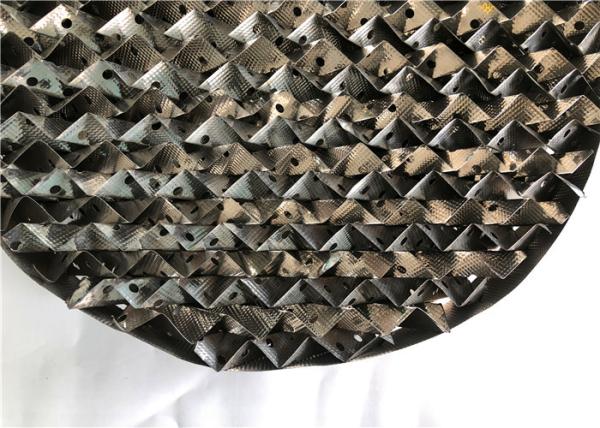

304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
Specifications
Brand Name :
YuanHai
Model Number :
YH-06
Certification :
ISO 9001
Place of Origin :
Hebei,China
MOQ :
5 cubic meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-10days
Packaging Details :
wooden case or customized
Size :
Dia:125Y/250Y/350Y/450Y
Material :
304, 316, 316L, Alumina, copper bronze
Feature :
High Mass Transfer
Usage :
Mass transfer media
Model :
250X,500X,700Y
Application :
vacuum rectification
Description

Stainless Steel 304L Knitted Metal Stuctured Packing For Separation Tower

Knitted Metal Stuctured Packing​ Introduction

Metal wire gauze packing is which made by carbon steel,stainless steel or aluminum alloy materials.Due to the special produce technology,wire gauze packing have the advantages of thin thickness,big surface area,big free volume,so less resistance,high separation efficiency,big disposal performance.so it is especially suitable for vacuum rectification and precision rectification.

Knitted Metal Stuctured Packing​ Technical Specification
The specification is based on SS304 material:
Model void volume Piece thick Number per heaping Weave height Weave distance Gear-shape angle F-factor Theoretical hetp
(%) (mm) (kg/m3) (mm) (mm) φ φ (Piece/m)
100Y 87.5 2.5+/-0.5 460 30 50 80 3.5 1
125Y 85 2.5+/-0.5 480 23 42 80 3 1-1.5
160Y 84 2.2+/-0.5 500 17 30 80 2.8 1.5-2
250Y 82 1.4+/-0.5 530 13 22 80 2.5 2-3
350Y 80 1.2+/-0.5 580 9 15 80 2 3.5-4
450Y 76 1+/-0.5 600 6 11 80 1.5-2 4-5

250(AX), Precision rectification for high productive capacity and less theoretical plate number.

500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.

700(CX), Separation of isotopic compound and isomeric compound.

Metal Structured Packing Material

Structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.

Structured packing is made from a variety of materials including corrugated sheets of perforated embossed metal, plastic, or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates.

Knitted Metal Stuctured Packing​ Advantages

The utility model has the advantages of thin wall,

large flux,

small resistance,

heat resistance,

corrosion resistance

good separation effect

Knitted Metal Stuctured Packing​ Application

Mass transfer of temperature sensitive chemical products

Proper lateral distribution of liquids and gases

Solvent recovery

Batch and continuous distillation

Low liquid loading systems

Providing highest theoretical stages per meter of packing height

Reducing liquid hold up

Economizing operating loads of vessels

Product Show

304L Stainless Steel Knitted Structure Packing In Distillation For Separation Tower
