Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G01
Certification :
ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
100m2
Price :
Negotiable
Supply Ability :
5000m2 per month
Packaging Details :
According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Material :
Galvanized Iron Wire
Wire Gauge :
2.0mm, 2.2mm, 2.7mm, 3.0mm
Surface Treatment :
Hot Dip Galvanized/Electro Galvanized/PVC Coated
Hole size :
60x80mm,80x100mm
Zinc Coating :
50-300g/㎡
Gabion Box Size :
2*1*1m ,1*1*0.5m,2*1*0.5m or as your requriment
Feature :
Anti-corrosion, Easily Assembled
Usage :
Protect Sea Wall, Hillside, Bridge, Flood Control Reta
Description

Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall / Gabion Basket


Galvanized Gabion Box Introduction

Gabion box also named gabion basket , heavy hexagonal mesh ,rock filled gabion cage,retaining wall for protection etc,made of galvanized wire,PVC coated wire.

1.material:low carbon iron wireQ195

2.wire gauge:2.0mm--5.0mm

3.hole size:60*80,80*100,100*120,120*150

4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement

5.surface treatment:electro galvanized,hot dipped galvanized

6.application:rock fall protection,gabion wall,gabion matresses,roadway protection.

Galvanized Gabion Box Surface Treatment

1.Galvanized steel wire :low carbon steel wire

2.Zinc-5% aluminum-mixed metal alloy steel wire ,a new-type material

3.Galvanized steel wire ,PVC or PE coating

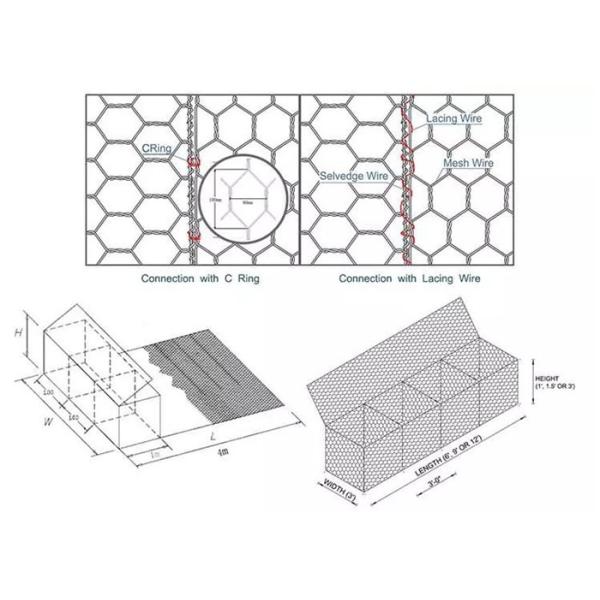

Galvanized Gabion Box Specification

Gabion Baskets Specifications
Mesh Opening
(mm)		 Wire Diameter(Metal Wire)
(mm)		 Wire Diameter(PVC Coated)
Inner/Outside(mm)		 Strands
60*80 2.0-2.8 2.0/3.0-2.5/3.5 3
80*100 2.0-3.2 2.0/3.0-2.8/3.8 3
80*120 2.0-3.2 2.0/3.0-2.8/3.8 3
100*120 2.0-3.4 2.0/3.0-2.8/3.8 3
100*150 2.0-3.4 2.0/3.0-2.8/3.8 3
120*150 2.0-4.0 2.0/3.0-3.0/4.0 3

Size Notes Tolerance
Length(m) Width(m) Height(m) Cell Number Volume(m³) ±3%
2.00 1.00 0.30 1 0.60
3.00 1.00 0.30 2 0.90
4.00 1.00 0.30 3 1.20 ±5%
2.00 1.00 0.50 1 1.00
3.00 1.00 0.50 2 1.50
4.00 1.00 0.50 3 2.00
1.00 1.00 1.00 0 1.00
1.50 1.00 1.00 0 1.50
2.00 1.00 1.00 1 2.00
3.00 1.00 1.00 2 3.00
4.00 1.00 1.00 3 4.00

Goods Name Gabion Box
Raw material

Galvanized wire
Galfan Coating ( Zn-5% AI-mixed alloy coating, Zn-10% AI-mixed alloy coating)
PVC coated galvanized (Galfan) wire
Type Hexagonal woven type and welded mesh type
Specification See below data sheets
Feature

• Uniform wire coating for extra durability
• Flexible & permeable structure
• Tolerates differential settlement
• Easy to install
• No special labour is required for installation
Application

• Control and guide of water or flood.Flood bank or guiding bank
• Preventing of rock breaking.Water and soil protection
• Bridge protection.Strengthening structure of soil
• Protection engineering of seaside area.Seaport engineering
• Isolation walls.Protection of road
Quality Guarantee Each batch Goods provided the inspection report.
Packing By bundle with plastic bag, then put in wooden pallet.
Customized Customized size is available


Galvanized Gabion Box Feature

(1) Construction is simple,
(2) Can withstand a large range of deformation, but still does not collapse.
(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.
(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.
(5) Saving transportation costs.Fold transport and assemble on site.
(6) Good flexibility: no structural joints, the overall structure has ductility.
(7) Corrosion resistance: PVC coating is not afraid of erosion.

Galvanized Gabion Box Application


1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Great Perviousness, pliability and anti-corrosion.
7. Resist the scour
8. Holistic capability
9. Easy to Construct
10. Economical and environmental protection

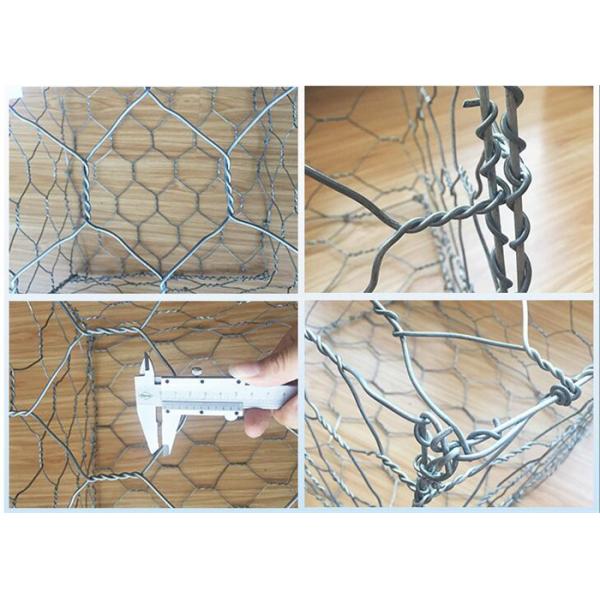

Galvanized Gabion Box Product Show


Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall

Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
