Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building
Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building
Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building
Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building
Specifications
Brand Name :
YuanHai
Model Number :
YH-06
Certification :
ISO9001:2008
Place of Origin :
Hebei,China
MOQ :
100 Square Meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000 Square Meters per Week
Delivery Time :
3-7 days
Packaging Details :
palletized or loose load in the container
Material :
stainless steel, aluminium , steel carbon
Hole Shape :
Diamond/Hexagonal Mesh Hole
Surface Treatment :
Galvanized, Powder coated
LWD :
25mm-100mm
SWD :
10mm-50mm
Technique :
Perforated
Feature :
Anti-corrosion and Anti-rust
Thickness :
0.5-8mm
Port :
Xingang
Sample :
Free
Application :
platform ,protection ,mine,building ,so on
Brand :
Yuanhai
Description

Flatterend Expanded Metal Sheet Black Iron 1.22x2.44m For Building

Expanded Metal Sheet Description

1)Wire Diameter: 2.5-8.0mm

2)Aperture: 2.0-50mm

3)Width: 1-30mm

4)Mesh Length: 1-10m

5)Mesh Width: 0.5-2m

6)LWD: 4.5-100mm

7)SWD: 2.5-50mm

8) Sheet Thickness: 0.5-8mm

Expanded Metal Sheet Introduction

Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.

Expanded Metal Sheet Specification
EXPANDED METAL MESH
Thickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width & Length
0.5 2.5 4.5 0.5

Width: 0.5m-2.0m

Length: 30m, 50m

Other sizes can be made as request
0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 10 25 1.1
1 15 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8

Expanded Metal Sheet Feature

1)Strong and durable, with Elegant appearance

2)Easy maintenance, high visibility.

3)Antioxidant and corrosion resistant, long lifetime.

4)Convenient installation, and not easy to be damaged.

5)Environmental protection product, can be recycled.

Expanded Metal Sheet Application

Expanded metal steel sheet series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net.

Expanded metal steel sheet can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways.

Expanded metal steel sheet also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, e passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!

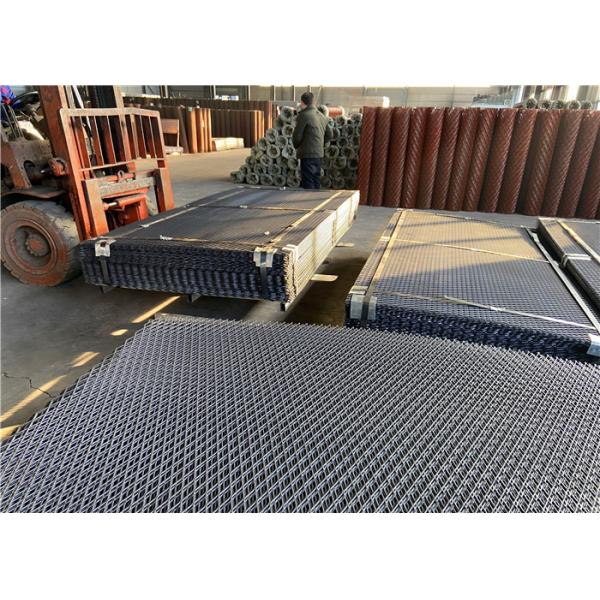

Expanded Metal Sheet Product Show

Expanded metal comes in two types: 1.Standard/Regular Expanded Metal 2.Flattened Expanded Metal.

Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building

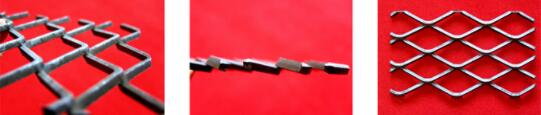

Standard/Regular Expanded Metal

Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building

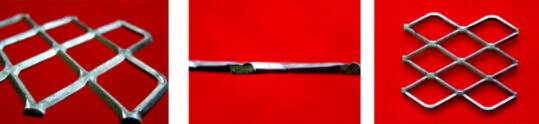

Standard/Regular Expanded Metal

Black Iron 1.22x2.44m Flattened Expanded Metal Sheet For Building
