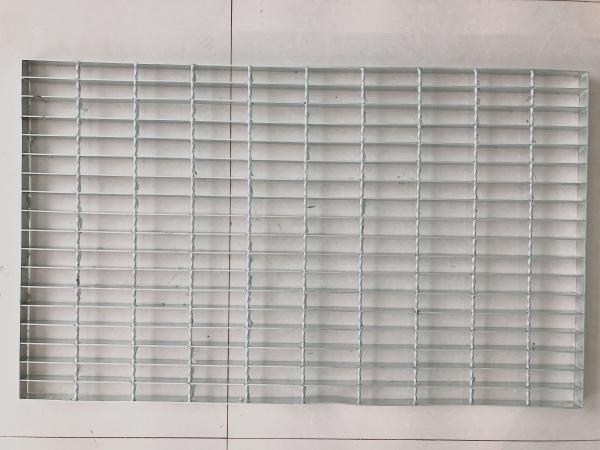

Anti Corrosive Galvanized Walkway Grating , Metal Grate Walkway Thickness 0.3-0.8mm
Anti Corrosive Galvanized Walkway Grating , Metal Grate Walkway Thickness 0.3-0.8mm
Anti Corrosive Galvanized Walkway Grating , Metal Grate Walkway Thickness 0.3-0.8mm
Anti Corrosive Galvanized Walkway Grating , Metal Grate Walkway Thickness 0.3-0.8mm
Specifications
Brand Name :
YUANHAI
Model Number :
YH-G1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50Pcs
Price :
Negotiable
Supply Ability :
5000Pcs Per Month
Packaging Details :
1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
name :
metal grate walkway
Application :
Floor
Color :
Black / white
Thickness :
0.3-0.8mm
Shape :
Square / Rectangular
Surface treatment :
Hot Dipped Galvanized
Usage :
Roof Drainage System
model :
YH-G1
Description

Metal Steel Grating / Stainless Steel Kitchen GratingSteel Grating Panels

Supply Ability
Supply Ability:5000pcs Per Month

Packaging & Delivery
Packaging Details
1. Normally Packed In Pilling Up Ways With Two Pieces Of Square Wood On Both Upperand Bottom Sides.
2. Acccording To Customer'S Requirements.
Port Tianjin Port

Product Description

(1) Place of Origin: Hebei, China (Mainland)
(2) Brand Name: YUANHAI
(3) Material: Steel

(4) Surface treatment: Hot dip galvanized, cold galvanized, spray paint, not processing

(5) Dimensions: 3'X20'
(6) Grating type: Serrated I bearing bar type
(7) Galvanization Standard: GB/T 13912, ISO 1461, JIS H8641,ASTM A123,,AS1650, ,BS 729

(8) Steel grating standards:

A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985

E) Japan: JJS.

(9) Grating type: Bearing bar: Plain type, Plain I type, Serrated type, Serrated I type;

Cross bar: Round cross bar, Square twisted cross bar.

(10) Specifications of steel grating:

Item Description
Bearing bar

20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing bar pitch

25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Materials Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc
Galvanizing standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E. Japan: JJS
Surface treatment

Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended.
