Specifications
Brand Name :
YH
Model Number :
YH-PF
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Supply Ability :
5000Sets Per Month
Packaging Details :
Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Product Name :
Steel Palisade Fencing
Key Word :
Palisade Fencing
Material :
Mid Steel
Fence Panel Height :
1-6m
Fence Panel Width :
1-3m
Pale Types :
W pale / D Pale
W Pale Width :
65-75mm
D Pale Width :
65-70mm
Angle Rail :
40mmx40mm 50mmx50mm 63mmx63mm
Angle Rail Thickness :
3mm-6mm
Surface Treatment :
Galvanized/PVC Coated
Feature :
Easily Assembled, Sustainable, Rodent Proof
Place Of Origin :
Hebei Province,China
Payment Term :
T/T,L/C
Port of Loading :
Xingang Port
Description

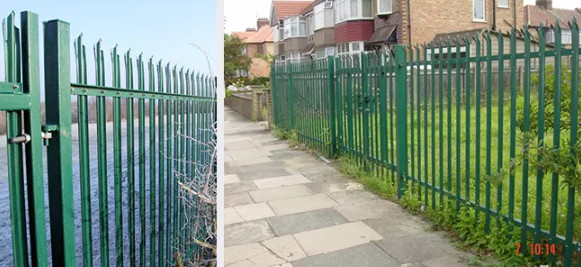

PVC Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Description of Steel Palisade Fencing

Steel Picket Fence is also known as picket welded fence, ornamental fence, steel security fence. The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles. Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts. Steel Picket Fence adopted high quality hot dipped galvanized steel tube. Top vertical tube pressed to spear by heavy duty punch.

Steel Palisade Fence Detail


Frame Material:Metal
Metal Type:Low carbon steel wire
Frame Finishing:PVC Coated
Pressure Treated Wood Type: Heat Treated
Item:Palisade Fence
Material:hot and cold steel section
Panel Width:65mm,71mm,77mm,etc
Panel Height:1.8m,2.0m,2.4m,etc
Finished:Hot-Dip Galvanized,Galvanized then PVC coated
Popolar Style Fence In Market:
Color Range: Green, Black , White, etc

Specifications of Steel Palisade Fence

Fence panel height
1m-6m
Fence panel width
1m-3m
Pale height
0.5m-6m
Pale width
W pale 65-75mm d pale 65-70mm
Pale thickness
1.5-3.0mm
Angle rail
40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness
3mm-6mm
RSJ post
100mmx55mm 100mmx68mm 150mmx75mm
Square post
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness
1.5mm-4.0mm
Straight fishplates or post clamps
30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts
M8XNo.34 for pale fixing M12xNo.4 for rail fixing

Package of Steel Palisade Fence

1. LCL: first packed with plastic film then on the pallets
2. FCL: Nude packing
3.other special package according to customers' requirements

Features of Steel Palisade Fence

• Easy installation

• With a high cost level compare with other type fence

• Nice looking

• Different options on color according to the using environment

• Strong anti rust and anti corrosion ability

• Strong and high security, it is possible of putting concertina razor wire at the top

Applications of Steel Palisade Fence

*Electricity Providers and Regional Networks

*Water Industry

*Telecoms Industry

*Police and Law enforcement

*Railway Line/Track Protection

*Motorways and Highway Protection

*Channel tunnel and European Transport networks

*Schools, Colleges & Universities

*Research Laboratories

Head Types of W&D Section Pales

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential

Pvc Coated Angle Bar Steel Palisade Fencing 1.8*2.4m D Pale For Residential
