Specifications
Brand Name :
YuanHai
Model Number :
YH005
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
200rolls
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Roll/Rolls per Month
Delivery Time :
3-10days
Packaging Details :
Waterproof paper or as customer's request
Material :
Iron Wire, Low Carbon Steel Q195
Blade type :
CBT--65;BTO-22;BTO-28;BTO-30;
Surface Treatment :
Galvanized/PVC coated
Zinc Coated :
Galvanized Wire:8-60g/m2;Blade:40-60g/m2
Razor Thickness :
0.45±0.05mm
Razor Barb Length :
22±1mm
Razor Barb Spacing :
34±1mm
Barb Distance :
7.5-15cm
Packing :
Waterproof Paper +Woven Bags
Usage :
Protecting Buliding;Grass boundary,Railway
Description

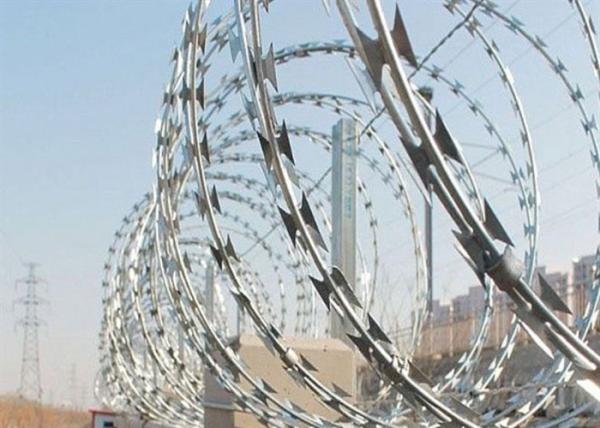

Powder Coated Razor Blade Wire 900mm Coil Diameter For Prison / Airport


Product Description of Razor Barbed Wire

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.


Blade Style
of Razor Barbed Wire

Specification

Reference Number Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1

Outside Diameter
No.of Loops
Standard Length per Coil
Type
Notes
450 mm
33

8m
CBT-65
Single coil
500 mm
41
10m
CBT-65
Single coil
700 mm
41
10m
CBT-65
Single coil
960 mm
53
13m
CBT-65
Single coil
500 mm
102
16m
BTO-10.15.22
Cross type
600 mm
86
14m
BTO-10.15.22
Cross type
700 mm
72
12m
BTO-10.15.22
Cross type
800 mm
64
10m
BTO-10.15.22
Cross type
960 mm
52
9m
BTO-10.15.22
Cross type

Advantages of Razor Barbed Wire

High security
Barbed razor wire with the sharp razor guarantees a high quality whilst retaining high security.

Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.

Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.


Packing and Shipping of Razor Barbed Wire

1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.

2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27tons


Application of Razor Barbed Wire

Once invented in history, barbed wire has been widely used in military and defense projects; now in the peaceful era, barbed wire is alternately used in machinery, electronics, pharmaceuticals, petrochemicals, glass, food drying, plastics, paper, chemical fiber, picture tubes and other industries.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.


Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

Packing & Delivery of Razor Barbed Wire

Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

We use 3 common packages or as customer's request.

Powder Coated 900mm Coil Diameter Razor Barbed Wire For Prison / Airport

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
