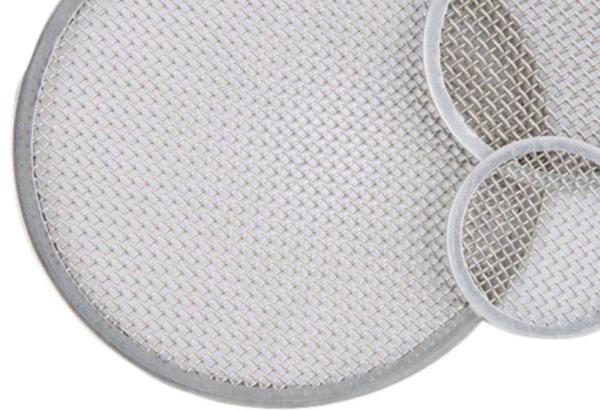

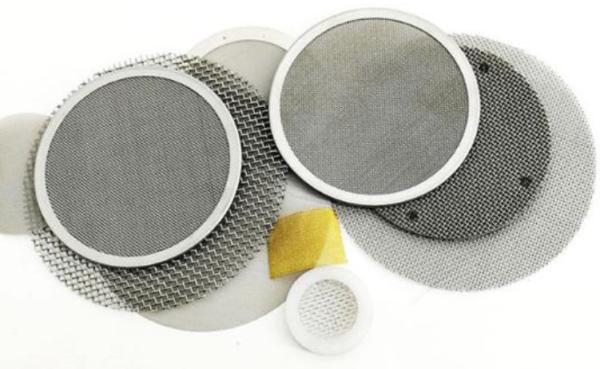

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
Specifications
Brand Name :
Yuanhai
Model Number :
YH-32
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
100 Square Meters
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Square Meter/Square Meters per Month
Delivery Time :
3-10days
Packaging Details :
packing in roll and plastic inside and wooden case outside or as your requirement
Material :
SS 302,304,316,304L,316L,321
Weaving :
Plain,twill or dutch weave
Usage :
Petro, chemical, air,liquid filter
Roll Width :
0.914m/1m/1.22m/1.5m or customized
Roll Length :
30 meters
Wire diameter :
0.02-2mm stainless steel wire mesh
Feature :
Low elongation/high tension
Sample :
For Free
Size :
Customized
Certificate :
ISO9001:2015
Description

SS 304 Wire Mesh Woven Micro Screen Mesh For Chemical Fiber Industry 200 Mesh

Product Description of Stainless Steel Wire Mesh

1.Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc

2.Wire Diameter: 0.015-2.8mm

3.Mesh count:

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3500mesh

What is Mesh Count?

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Features of Stainless Steel Wire Mesh

  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

Weaving Style of Stainless Steel Wire Mesh

plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Product Specification of Stainless Steel Wire Mesh

Type Mesh/Inch Wire diameter
(inch)		 OPen Area Weight (LB)
/100 Square Foot
Plain,Twill Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter
(inch)		 Absolute Filtration
Finess μm		 Nominal Filtration
Finess μm
Plain Dutch Weave
Wire Mesh		 8 × 85 - 80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Dutch Weave
Wire Mesh		 20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-

Application of Stainless Steel Wire Mesh

  • In acid, alkali environment conditions sieving and filtering.
  • Petroleum industry as mud mesh,.
  • Chemical fiber industry as screen mesh.
  • Plating industry as acid cleaning mesh.

Detail Images of Stainless Steel Wire Mesh

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Package of Stainless Steel Wire Mesh


1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
Related Application

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.

Chemical Fiber Industry Ss321 316l Wire Mesh Filter Disc
