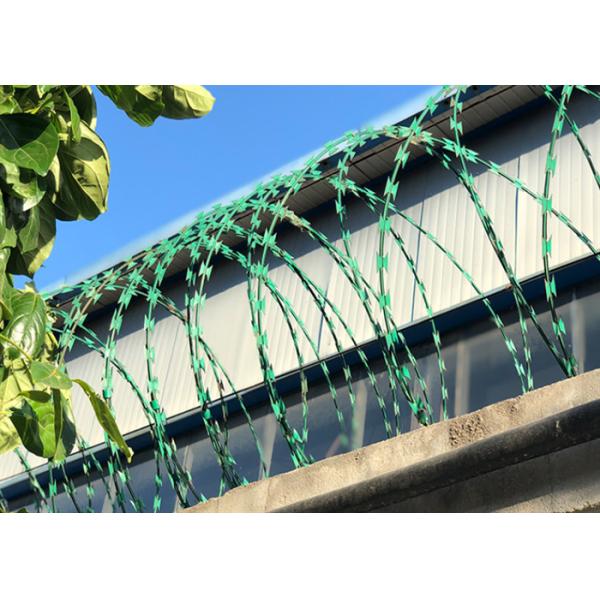

BTO-22 PVC Coated Razor Barbed Wire 500mm Coil Diameter For Private House
Product Description of Razor Barbed Wire
Type: BTO-10,BTO-12,BTO-15,BTO-18,BTO-22,BTO-30,CBT-60,CBT-65 etc
Outside 450mm,500mm,700mm,600mm,980mm,1000mm etc as customers request
Material:
Electro galvanized core wire and blade;
Hot-dipped galvanized core wire and blade;
Stainess steel core wire and blade;
PVC coated core wire and blade;
hot-dipped galvanized core wire+stainless steel blade.
Razor type:single type,cross type(3 or 5clips per circle).
Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Blade Style of Razor Barbed Wire
Specification
Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
450 mm | 33 |
8m | CBT-65 | Single coil |
500 mm | 41 | 10m | CBT-65 | Single coil |
700 mm | 41 | 10m | CBT-65 | Single coil |
960 mm | 53 | 13m | CBT-65 | Single coil |
500 mm | 102 | 16m | BTO-10.15.22 | Cross type |
600 mm | 86 | 14m | BTO-10.15.22 | Cross type |
700 mm | 72 | 12m | BTO-10.15.22 | Cross type |
800 mm | 64 | 10m | BTO-10.15.22 | Cross type |
960 mm | 52 | 9m | BTO-10.15.22 | Cross type |
Advantages of Razor Barbed Wire
It is almost impossible to climb.
High-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Extremely simple to install, needs three to four to install molding.
compromising perimeter security.
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Application of Razor Barbed Wire
Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.
Packing & Delivery of Razor Barbed Wire
Application of Razor Barbed Wire
We use 3 common packages or as customer's request.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
