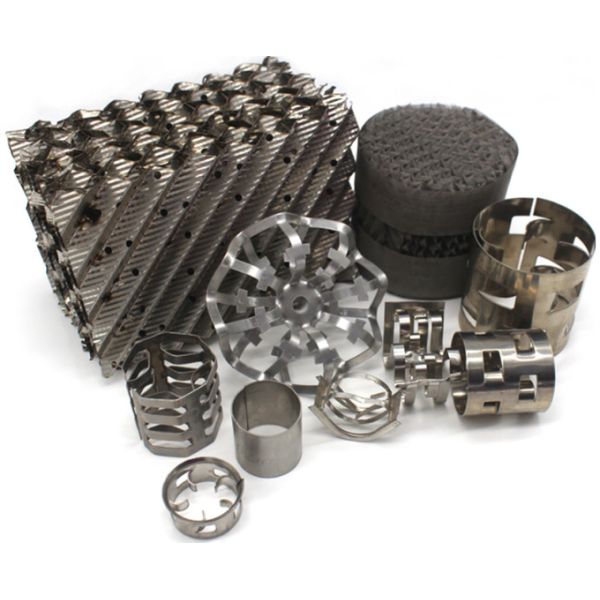

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation
10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation
10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation
10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation
Specifications
Brand Name :
Yuanhai
Model Number :
YH-04
Place of Origin :
Hebei Province,China
Certification :
ISO9001:2015
MOQ :
1 m³
Price :
Negotiation
Packaging Details :
By Wooden Box
Delivery Time :
7 days
Payment Terms :
T/T
Supply Ability :
800 Cubic Meter/Cubic Meters per Month
Product Name :
Metal Tower Packing
Key Words :
Random Packing
Diameter :
25~90mm
Production Period :
40HQ/15 Days
Materials :
CS, SS, Copper, Titanium
Void Fraction :
High Void Fraction
Port of Loading :
Xingang Port
Description

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation

Product Description:

Metal pall ring is one of the most common and well known packing, Metal Pall Ring is an industry standard design media developed from the Raschig Rings and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal pall ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions of the Metal pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the Metal pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting. Pall rings are available in a wide range of materials.

  • Product Name: Metal Tower Packing
  • Key Words: Random Packing
  • Port: Xingang
  • Surface Area: High Surface Area
  • Port of Loading: Xingang Port
  • Features:
    • Rasching Ring Packing
    • Random Tower Packing
    • Packing For Gas Liquid Separation

Features:

1.Easily wettable

2.High resistance to fouling 3.High temperature endurable 4.High temperature applications 5.HIGH MECHANICAL STRENGTH

6.High capacity with low pressure drop

7.Mechanically robust, lesser probability of breakage

8.Good liquid/gas distribution and high mass transfer efficiency.

Technical Parameters:

Product Name: Metal Tower Packing
Key Words: Random Packing
Materials: CS, SS, Copper, Titanium
Diameter: 25~90mm
Production Period: 40HQ/15 Days
Certification: ISO9001:2015
Feature: High Capacity, Low Pressure Drop
Corrosion Resistance: Excellent Corrosion Resistance
Void Fraction: High Void Fraction
Port of Loading: Xingang Port
Product Type: Bulk Packing, Packing for Gas Liquid Separation

Size (inch /mm)
Bulk Density
(SS304 kg/m3)
Number
(per m3)
Surface Area
(m2/m3)
Free Volume
(%)
Dry packing factor m-1
1”
25*25*0.4
288
53500
212
96.2
229.8
1”
25*25*0.5
367
53500
216
95
237.2
1”
25*25*0.6
439
53500
219
94.2
244.1
1.5”
38*38*0.4
193
15180
143
97.2
148.4
1.5”
38*38*0.5
246
15180
145
96.7
151.7
1.5”
38*38*0.6
328
15000
146
95.9
154.6
2”
50*50*0.5
185
6500
106
97.5
128.5
2”
50*50*0.7
315
6500
108
96.4
130.5
2”
50*50*0.9
380
6500
132.5
95.4
134.0
3”
76*76*0.8
265
1920
69
97.4
79.6

Applications:

Metal Pall Ring Usage for Various Applications

Metal Pall rings are an excellent option for vacuum distillation and heat transfer. The unique design of the rings helps increase the surface area and provide better contact resistance, thereby improving the efficiency of the distillation process and heat transfer. This makes the metal Pall ring a popular choice for various industries, including chemical and petrochemical industries.

Aside from vacuum distillation and heat transfer, metal Pall rings also have numerous other applications. For instance, they are widely used in wet scrubbers for gas absorption. The rings' special design, with its high surface area, allows for superior absorption efficiency compared to traditional packing materials. This makes the metal Pall ring an ideal choice for use in reducing emissions, controlling odor, and processing waste gases.

Moreover, cooling towers are also another popular application for metal Pall rings. The rings provide an efficient way to transfer heat while reducing energy costs. This makes them an attractive option for use in a range of industries, including power generation, petrochemicals, and HVAC systems.

In addition to wet scrubbers and cooling towers, mist eliminators also make use of metal Pall rings. These are used to remove liquid particles that are present in gases. The rings help filter the liquid particles by creating larger droplets that can be easily removed. This process makes metal Pall rings an ideal choice for mist elimination, especially in industries that require clean air, such as hospitals and laboratories.

In the gas absorption industry, metal Pall rings also play an essential role. These rings can be utilized in various applications such as gas absorption columns and gas strippers. The rings' high surface area and improved contact resistance provide superior absorption, making them a popular choice for use in industrial plants and chemical factories.

Last but not least, metal Pall rings are also used in air washers. Air washers help clean the air and remove pollutants through the process of humidification. The high surface area of the metal Pall rings allows for optimal water evaporation, making them essential in the cleaning process.

Customization:

Our metal random packing is a versatile product that can be used in a variety of applications, including random tower packing, tower packing for gas scrubbing, and metal saddle ring packing. Contact us to learn more about our customization options and how we can meet your specific needs.

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation

10~50mm Diameter Random Packing 16*16*0.3mm Saddle Ring For Distillation

FAQ:

Q1. What is the brand name of the metal random packing?

A1. The brand name of the metal random packing is Yuanhai.

Q2. What is the model number of the metal random packing?

A2. The model number of the metal random packing is YH-04.

Q3. What is the place of origin of the metal random packing?

A3. The metal random packing is made in Hebei Province, China.

Q4. Does the metal random packing have any certifications?

A4. Yes, the metal random packing is ISO9001:2015 certified.

Q5. What is the minimum order quantity for the metal random packing?

A5. The minimum order quantity for the metal random packing is 1 m³.

Q6. What is the price of the metal random packing?

A6. The price of the metal random packing is negotiable.

Q7. How is the metal random packing packaged?

A7. The metal random packing is packaged in wooden boxes.

Q8. What is the delivery time for the metal random packing?

A8. The delivery time for the metal random packing is 7 days.

Q9. What are the payment terms for the metal random packing?

A9. The payment terms for the metal random packing are T/T.

Q10. What is the supply ability of the metal random packing?

A10. The supply ability of the metal random packing is 800 Cubic Meter/Cubic Meters per Month.
