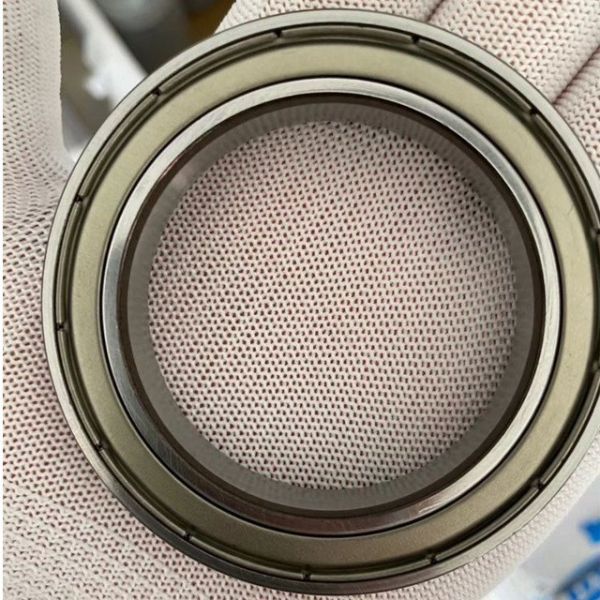

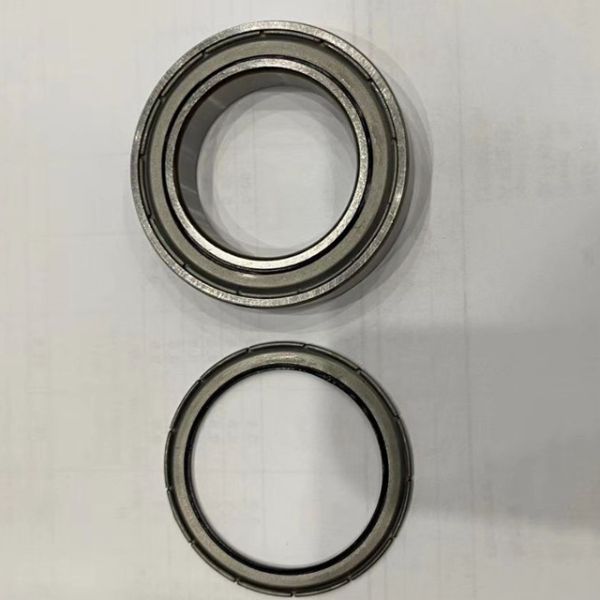

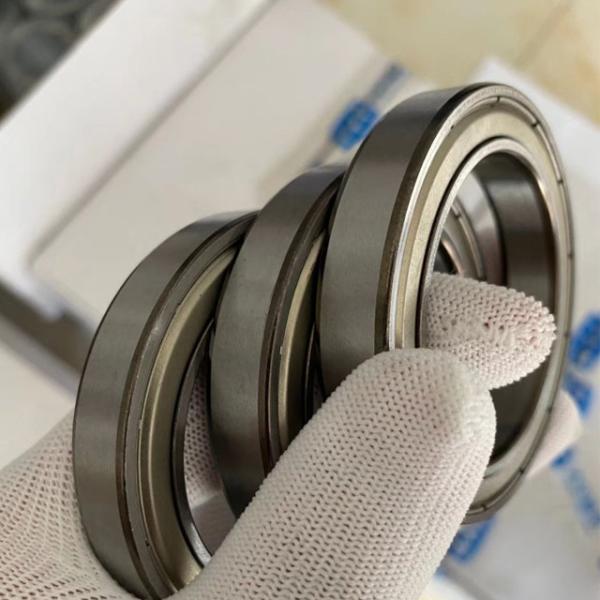

Ⅰ. About Miniature ball bearing: We provide bearings without exceptional noise to ensure the silent running of the semiconductor device. Specially designed bearing shields are used to prevent the grease leaking, which may cause unexpected stop of the device. Moreover, we understand the concern about environment and energy saving.
Our precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.
Type | Ball Type |
Material | Chrome steel |
Bore | 3.5 inch |
Outer dia | 4 inch |
Thickness | 0.25 inch |
Weight | 0.12kgs |
Port | Shanghai |
Delivery time | 3-20 days depends on quantity |
Ⅱ. Feature : high precision bearings have less internal friction and can work with smaller starting torque, which means a lower power consumption.
items | bore size | outer diameter | radius | width | Load Rating | Load Rating | Limit speed | Weight | |||
open | ZZ | 2RS | d | D | rs(min) | B | Cr(N) | Cor(N) | grease | oil | g |
*1000rpm | |||||||||||
6700 | - | - | 10 | 15 | 0.15 | 3 | 855 | 435 | 15 | 17 | 1.4 |
- | 6700ZZ | 6700-2RS | 15 | 0.15 | 4 | 855 | 435 | 15 | 17 | 1.9 | |
6800 | 6800ZZ | 6800-2RS | 19 | 0.3 | 5 | 1716 | 840 | 37 | 43 | 5.6 | |
63800 | 63800ZZ | 63800-2RS | 19 | 0.3 | 7 | 1716 | 840 | 37 | 43 | 7.4 | |
6900 | 6900ZZ | 6900-2RS | 22 | 0.3 | 6 | 2695 | 1273 | 34 | 41 | 10 | |
6701 | 6701ZZ | 6701-2RS | 12 | 18 | 0.2 | 4 | 926 | 530 | 13 | 15 | 3.1 |
6801 | 6801ZZ | 6801-2RS | 21 | 0.3 | 5 | 1915 | 1041 | 33 | 39 | 6.5 | |
63801 | 63801ZZ | 63801-2RS | 21 | 0.3 | 7 | 1915 | 1041 | 33 | 39 | 8.5 | |
6901 | 6901ZZ | 6901-2RS | 24 | 0.3 | 6 | 2886 | 1466 | 31 | 36 | 12 | |
6702 | 6702ZZ | 6702-2RS | 15 | 21 | 0.2 | 4 | 937 | 582 | 11 | 13 | 3.6 |
6802 | 6802ZZ | 6802-2RS | 24 | 0.3 | 5 | 2073 | 1253 | 28 | 33 | 7.6 | |
63802 | 63802ZZ | 63802-2RS | 24 | 0.3 | 7 | 2073 | 1253 | 28 | 33 | 10 | |
6902 | 6902ZZ | 6902-2RS | 28 | 0.3 | 7 | 4321 | 2259 | 26 | 30 | 19 | |
6703 | 6703ZZ | 6703-2RS | 17 | 23 | 0.2 | 4 | 1000 | 658 | 9.5 | 11 | 4 |
6803 | 6803ZZ | 6803-2RS | 26 | 0.3 | 5 | 2233 | 1456 | 26 | 30 | 8.2 | |
63803 | 63803ZZ | 63803-2RS | 26 | 0.3 | 7 | 2233 | 1456 | 26 | 30 | 11 | |
6903 | 6903ZZ | 6903-2RS | 30 | 0.3 | 7 | 4588 | 2565 | 23 | 38 | 20 | |
6704 | 6704ZZ | 6704-2RS | 20 | 27 | 0.2 | 4 | 1402 | 729 | 8.5 | 10 | 5.9 |
6804 | 6804ZZ | 6804-2RS | 32 | 0.3 | 7 | 4015 | 2462 | 21 | 25 | 18 | |
63804 | 63804ZZ | 63804-2RS | 32 | 0.3 | 10 | 4015 | 2462 | 21 | 25 | 24 | |
6904 | 6904ZZ | 6904-2RS | 37 | 0.3 | 9 | 6381 | 3682 | 19 | 23 | 40 | |
6705 | - | 6705-2RS | 25 | 32 | 0.2 | 4 | 1091 | 838 | 7 | 8 | 7.1 |
6805 | 6805ZZ | 6805-2RS | 37 | 0.3 | 7 | 4303 | 2932 | 18 | 21 | 24 | |
63805 | 63805ZZ | 63805-2RS | 37 | 0.3 | 10 | 4303 | 2932 | 18 | 21 | 32 | |
6905 | 6905ZZ | 6905-2RS | 42 | 0.3 | 9 | 7001 | 4540 | 16 | 19 | 47 | |
6706 | - | - | 30 | 37 | 0.2 | 4 | 1143 | 947 | 5.5 | 7 | 8.3 |
6806 | 6806ZZ | 6806-2RS | 42 | 0.3 | 7 | 4538 | 3402 | 15 | 18 | 27 | |
63806 | 63806ZZ | 63806-2RS | 42 | 0.3 | 10 | 4538 | 3402 | 15 | 18 | 36 | |
6906 | 6906ZZ | 6906-2RS | 47 | 0.3 | 9 | 7242 | 5003 | 14 | 17 | 53 | |
6707 | - | 6707-2RS | 35 | 44 | 0.3 | 5 | 1866 | 1635 | 4.9 | 6 | 15 |
6807 | 6807ZZ | 6807-2RS | 47 | 0.3 | 7 | 4729 | 3821 | 13 | 16 | 32 | |
6907 | 6907ZZ | 6907-2RS | 55 | 0.6 | 10 | 10900 | 7818 | 12 | 14 | 87 | |
6708 | - | 6708-2RS | 40 | 50 | 0.3 | 6 | 2516 | 2233 | 4.3 | 5 | 23 |
6808 | 6808ZZ | 6808-2RS | 52 | 0.3 | 7 | 4923 | 4178 | 12 | 14 | 35 | |
6908 | 6908ZZ | 6908-2RS | 62 | 0.6 | 12 | 13678 | 9968 | 11 | 13 | 131 |
Ⅲ. Application: household appliances, dental drill, toys, electric power tools, electric motors, machine tools, measuring instruments, office machinery, Robot joint, facial beauty rollers, drone etc.
Ⅳ. Specification
Ⅴ. PACKING / Shipping
Normally we packed as below 3 methods, also we can provide package as customer requirements:
1) Tube+outer carton+pallets
2) Single box+outer carton+pallets
3) Tube package+middle box+outer carton+pallets
