2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
2218K / C3 double row bearing steel cage Self Aligning Ball Bearing
Specifications
Brand Name :
SILURIAN
Model Number :
2218K
Certification :
ISO9001：2008
Place of Origin :
China，liaocheng
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Delivery Time :
5-8 work days
Packaging Details :
Plastic tube+individual box+carton
Type :
Roller
Number of row :
Double Row
Precision rating :
P0 P6 P5 P4 P2
Seals type :
Open
Structure :
Cylindrical
Outside diameter :
0 - 170 mm
Description

Double Row Self-Aligning Bearing 2218K/C3 - 90x160x40 mm

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.

Product description:

Specifications
Bearing Typedouble row self-aligning
Bore Dia (d)90.000 mm
Outer Dia (D)160.000 mm
Width (B)40.000 mm
Radius (min) (rs)2.00 mm
Dynamic Load Rating (Cr)70,500 N
Static Load Rating (Cor)28,700 N
Max Speed (Grease)3,600 rpm
Max Speed (Oil)4,300 rpm
Max. Shaft Shoulder Dia. Inner (Li)99 mm
Min. Housing Shoulder Dia., Outer (Lo)151 mm
Weight (g)3,130.00 grams
PrecisionA1
Standard ClearanceC0
Material52100 Chrome steel (or equivalent)

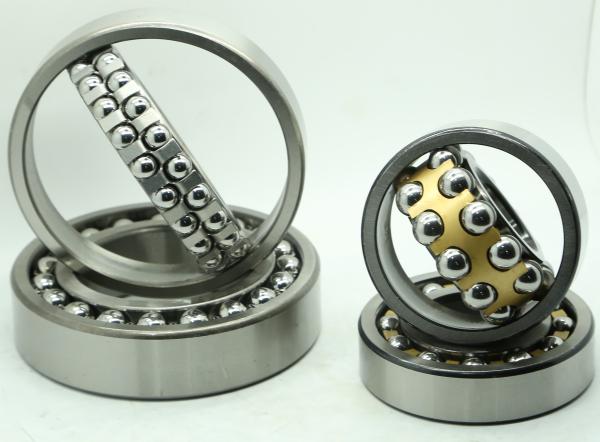

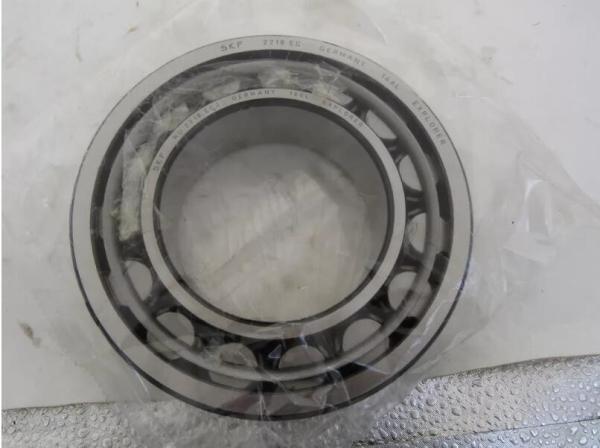

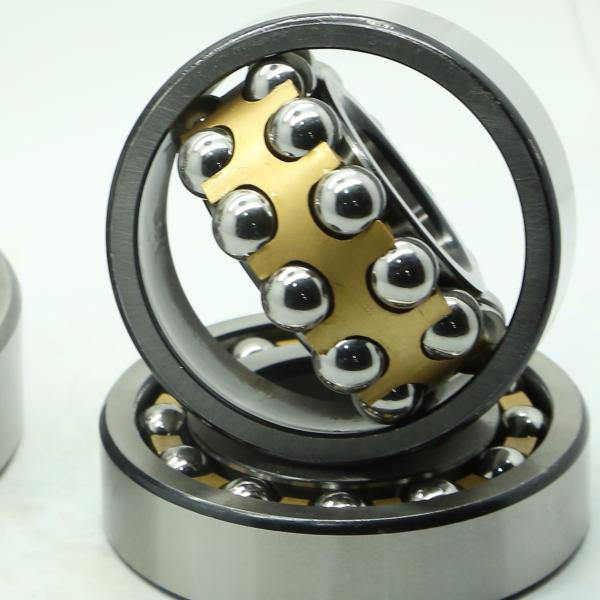

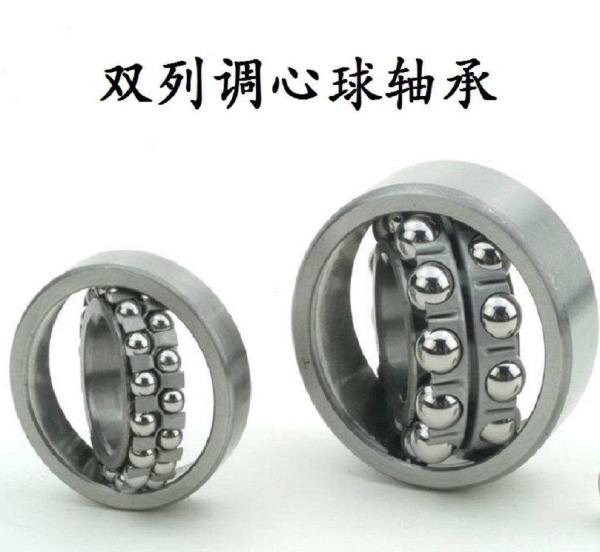

Photos of Bearings:


Bearing No. Boundary dimensions Basic Load Rating KN Speed Rating r/min Weight kg
mm
10000 (TN1,M) 10000K (TN1,M) Tapered Bore d D B Cr Cor Grease Lubrication Oil Lubrication
Cylindrical
1203 1203K 17 40 12 7.9 2.02 16000 20000 0.076
2203 2203K 17 40 16 9 2.45 16000 20000 0.09
1303 1303K 17 47 14 12.5 3.18 14000 17000 0.14
2303 2303K 17 47 19 14.5 3.58 13000 16000 0.17
1204 1204K 20 47 14 9.95 2.65 14000 17000 0.12
2204 2204K 20 47 18 12.5 3.28 14000 17000 0.15
1304 1304K 20 52 15 12.5 3.38 12000 15000 0.17
1205 1205K 25 52 15 12 3.3 12000 14000 0.14
2205 2205K 25 52 18 12.5 3.4 12000 14000 0.19
1305 1305K 25 62 17 17.8 5.05 10000 13000 0.26
2305 2305K 25 62 24 24.5 6.48 9500 12000 0.35
1206 1206K 30 62 16 15.8 4.7 10000 12000 0.23
2207 2207K 35 72 23 21.8 6.65 8500 10000 0.44
2208 2208K 40 80 23 31.9 10 7500 9000 0.51
1308 1308K 40 90 23 33.8 11.2 6700 8000 0.72
1209 1209K 45 85 19 22.9 7.87 7500 9000 0.47
2209 2209K 45 85 23 32.5 10.6 7000 8500 0.55
1309 1309K 45 100 25 39 13.4 6300 7500 0.96
2309 2309K 45 100 36 63.7 19.3 5600 6700 1.25
1210 1210K 50 90 20 26.5 9.15 7000 8500 0.53
2210 2210K 50 90 23 33.8 11.2 6300 7500 0.6
1310 1310K 50 110 27 43.6 14 5600 6700 1.2
Application

Packaging & Shipping

Company Information

Q:Are you factory or trading company?

A:We are factory.

Q:Where is your factory located in?

A:Shandong Province.

Q:Could I get samples before order?

A:Yes,samples of regular products are available.

Q:What is your MOQ?

A:The MOQ depends on the specific item number.

Q:What is your delivery time?

A:Usually within 5days after payment received, 10-15days for custom items.

Q:What is your payment terms?

A:Western Union,TT,Paypal, Alibaba Trade Assurance

Q:Do you supply OEM?

A:Yes, OEM( custom production) is available.
