High precision and good quality thrust ball bearing F6-12M Size 6*12*4.5mm

Ⅰ. About Miniature ball bearing: Miniature bearings is one kind of deep groove ball bearing, usually we call deep groove ball bearings as small ball bearings when the inner diameter range from 1mm to 8 mm, Metric and imperial sizes miniature bearings are included. These miniature bearings have greatly wide range of applied fields including Skateboard, RC Car, Dental, Fishing Reel,Yoyo, Instrument, Electric Motor, Medical and so on.

Model list as below:

Features :

Thrust ball bearings consist of two precision washers (rings) and a ball complement spaced by retainer. They can besupplied with

or without radius ball grooves in the rings. Thrust ball bearings are used under purely axial loads, and its speed is limited.

According to the capability it falls into Single Direction Thrust Ball Bearings and Double Direction Thrust Ball Bearings,

our thrust ball bearings are the particular type of the Single Direction Thrust Ball Bearings.

Single direction thrust ball bearings have two washers, with grooved raceways. The curvature of the raceways is slightly larger than that of the ball. Out of two washers, one is shaft washer & the other one is housing washer. The bore of the shaft washer is of

the shaft dia & the bore of the housing washer is slightly larger than that of shaft washer, to facilitate free rotation. These types of

thrust bearings are mainly used where axial load conditions are too large to be accepted by radial bearings. They can accept purely thrust load in single direction & they are not suitable for speed applications.

The thrust ball bearings are separable so that mounting is simple as the washers and the ball and cage assembly can

be mounted separately.

Applications:

RC models, Automotive, electric motors, home appliances, construction machinery, transmission shafts, gear shafts,

pups, Bicycle and various kinds of professional machinery.

FreeRun Thrust Ball Bearings List:

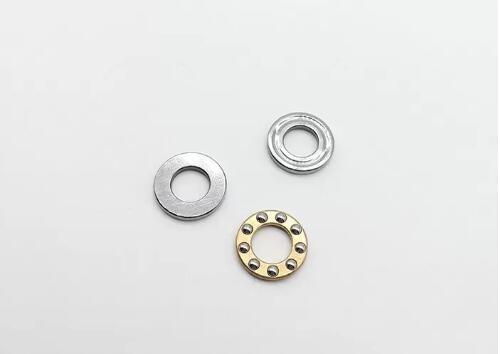

Photos Of Bearings:

Ⅱ. Feature : high precision, high rotating speed, low friction, small clearance, low-noise, competitive price with good quality .

Ⅲ. Application: household appliances, dental drill, toys, electric power tools, electric motors, machine tools, measuring instruments, office machinery, Robot joint, facial beauty rollers, drone etc.

Ⅳ. Specification

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes
