7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
7007AC 2RZ HQ1 brass cage bearing Single Row bearing Angular Contact Bearing
Specifications
Brand Name :
SILURIAN
Model Number :
7007AC 2RZ HQ1
Certification :
ISO9001
Place of Origin :
China，liaocheng
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Delivery Time :
5-8 work days
Packaging Details :
Plastic tube+individual box+carton
Number of row :
Single Row
Precision rating :
P0 P6 P5 P4 P2
Seals type :
Open
Structure :
Angular Contact
Type :
Ball
Bore size :
40 mm
Stock :
Rich Stock
Description

Super Precision Angular Contact Ball Bearing 7007C 2RZ HQ1 For High Speed Spindle

Product Description

angular contact ball bearing is a kind of bidirectional single row angular contact ball bearing. As a result of the special design the groove in the inner and outer ring,it has two contact points with 35 or 45 contact angle between every groove and ball,

and so the products can bear bidirectional axial load. It has high limited speed and is suitable for the high-speed operation.

It allow the bearing to load a number of balls due to its combined inner ring with double half rings,thus giving a higher load bearing capacity.

Model No angular ball bearing
Brand Name SILURIAN
Type: Spindle Bearing(angular contact ball bearing)
Material GCr15
Quality Certificate ISO9001:2008
Cage brass and nylon
Packing original packing
Application Steel Industry, Mining&Construction, Paper making Machinery,vibrating screens, shakers, conveyors,
Features: high precision, high speed, long life, high reliability, low noise
Certificate ISO 9001:2008
Service: Our purpose is to service: the customer first, integrity-centered, warm-heart service, to your satisfaction.

Type of angular contact ball bearings:

a=15 °7000C

a=25 °7000AC

a=40 °7000B

Bearing Series of :

Bearing No. d D T Weight
7003AC 17 35 10 0.045
7003C 17 35 10 0.045
7203AC 17 40 12 0.07
7203C 17 40 12 0.07
7004AC 20 42 12 0.079
7004C 20 42 12 0.079
7204AC 20 47 14 0.112
7204B 20 47 14 0.112
7204C 20 47 14 0.112
7005AC 25 47 12 0.091
7005C 25 47 12 0.091
7205AC 25 52 15 0.135
7205B 25 52 15 0.135
7205C 25 52 15 0.135
7305B 25 62 17 0.243
7006AC 30 55 13 0.133
7006C 30 55 13 0.133
7206AC 30 62 16 0.208
7206B 30 62 16 0.208
7206C 30 62 16 0.208
7306B 30 72 19 0.362
7007AC 35 62 14 0.17
7007C 35 62 14 0.17
7207AC 35 72 17 0.295
7207B 35 72 17 0.295
7207C 35 72 17 0.295
7307B 35 80 21 0.475

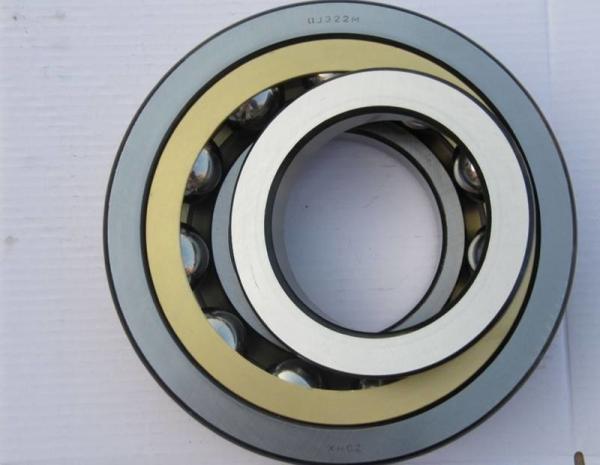

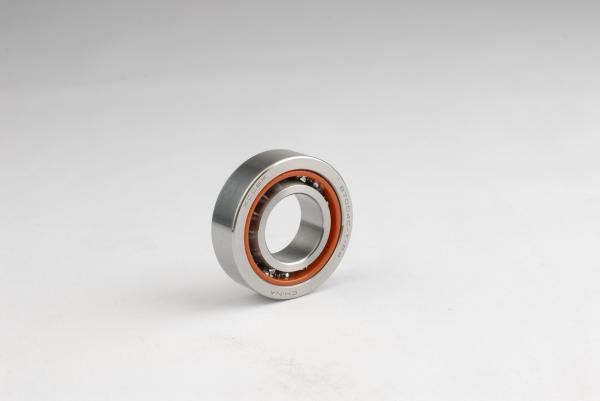

PHOTOS OF BEARINGS:

Packing of bearings:

1. Tube+carton+pallet

2. Paper box+carton+pallet

3. Wooden packing: every bearing is packed into a wooden case. It is usually for big bearing .

4. According to your requirement details

Delivery Details : Shipped in 7 days after payment

FAQ

  • Q:Do you accept ODM&OEM orders?
  • Yes. We provide ODM&OEMservices to worldwide customers. We are able to customize housings in different styles and sizes in different brands. We also customize circuit board&packing box as per your requirements.
  • Q:What is the MOQ?
  • MOQ is 10pcs for standardizes products. For customized products MOQ should be negotiated in advance. There is no MOQ for sample orders.
  • Q:How long is the lead time?
  • The lead time for sample orders is 2-5 days. For bulk orders is 5-15 days.
  • Q:Do you offer free samples?
  • Yes, we offer free samples but customers should bear freight.

Advantages of Angular Contact Ball Bearing:

1.Ultra clean steel to extend bearing life by up to 80%

2.Advanced grade technology

3.Quiet and smooth operation even at high speed

4.Super finished raceways

5.Offer products in 15,25 and 40 degree angles

6.Available in arrange of steel and brass cage assembles
