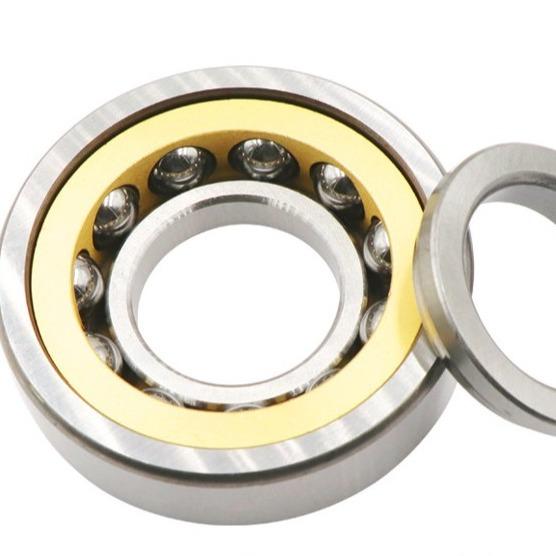

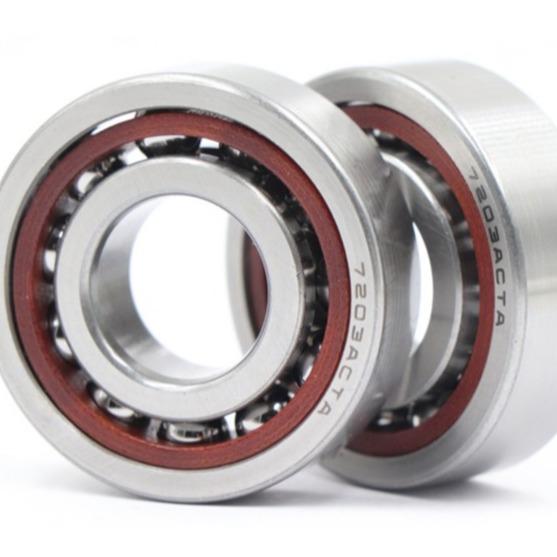

40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
40 mm Open P0 P6 P5 P4 P2 Single / Double Row Angular Contact Ball Bearing
Specifications
Brand Name :
SILURIAN
Certification :
ISO9001, ISO14001
Place of Origin :
China，liaocheng
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Delivery Time :
5-8 work days
Packaging Details :
Plastic tube+individual box+carton
Model Number :
70 72 73 Series
Number of row :
Single Row
Precision rating :
P0 P6 P5 P4 P2
Seals type :
Open
Structure :
Angular Contact
Type :
Ball
Bore size :
40 mm
Description

Single / Double Row Angular Contact Bearing High Rotating Speed

Product Description:

Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.

Prducts name trade assurance 2015 new bearing high rotating speed windmill ball bearing
Bearing model B7206E.T.P4S.UL
Series

7000 series,7200 series ,7300 series ,7405 series,71800 series,71900- series

QJF series
Dimensions(mm) d:30
D:62
B:16
Cage material Steel , brass , Iron , plastic
Precision P0,P6,P5, P4(ABEC- 1,ABEC- 3,ABEC- 5, ABEC-7)
Material Used GCr15-China, (AISI)52100-American, (Din)100Cr6-Germany
Quality standard ISO9001:2000 standard
Service OEM service
Delivery date Normally ready goods and stock winthin 7 days
Payment terms

A: 100% L/C at sight

B: 30% T/T in advance .70% against copy of B/L

C: Western Union,Paypal
Fields Used In Motor, Automobile, Precision Machinery, Electric Tools, Power Tools, Sports.
Package single color box
Skype oliver900303
Contact Oliver Chan Tel:86-510-82021910 Fax:86-510-82021910

Description of Suffix

Suffix Description Design
B Modified internal construction Standard
JP Sheet steel cage
MP Solid brass cage
DB Two angular contact ball bearings in O arrangement, matched clearance-free Special design, available by agreement
DF Two angular contact ball bearings in X arrangement, matched clearance-free
DT Two angular contact ball bearings in tandem arrangement, matched
TVH
TVP		 Solid cage made from glass fibre reinforced polyamide Standard
UA Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
P5 Bearing in tolerance class P5 Special design, available by agreement
2RS Contact seals on both sides Standard

Chinese angular contact ball bearing 7317ACM bearing
Model 7317ACM
Size 85*180*41mm
Material Gcr15
Cage Brass
Seal Type Open
Quality ISO9001 2000 Standard;CE
Port Qingdao,Shanghai,Ningbo,Tianjin,Guangzhou,Shenzhen,Hongkong
Package Standard exported package or according to our customers' requirement
Delivery Time within 3 days after confirm, it will be 3~7 days if the goods are not in stock , the specific time need refer to the quantity
Bearig
Number		 Principal dimensions(mm) Weight(KG)
d D B rsmin
7317A 85 180 41 1.1 4.326
7317B 85 180 41 1.1 4.415
7018C 90 140 24 1.0 1.332
7018A 90 140 24 1.0 1.183
7218C 90 160 30 1.0 2.501
7218A 90 160 30 1.0 2.243
7218B 90 160 30 1.0 2.285
7318C 90 190 43 3.0 4.880
7318A 90 190 43 1.1 5.054
7318B 90 190 43 1.1 5.164
7019C 95 145 24 1.0 1.411
7019A 95 145 24 1.0 1.422
