F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model
Specifications
Brand Name :
SILURIAN
Model Number :
F684ZZ
Certification :
ISO9001
Place of Origin :
China，liaocheng
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Delivery Time :
5-8 work days
Packaging Details :
Plastic tube+individual box+carton
Type :
Ball
Seals type :
ZZ 2RS OPEN
Bore size :
9 mm
Precision rating :
P0 P6 P5 p4
Structure :
Deep Groove
Number of row :
Single Row
OEM :
Accept
Description

high qualityF684ZZ Double-shielded Miniature Flanged Ball Bearings for 3D Printer Model

Bearings Introductions:

Specification:

Item Specification
Type Deep groove ball bearing
Model Number SMR95
Brand silurian
Dimension(dxDxB) 5*13*14mm
Outer Ring Chrome steel
Inner Ring Chrome steel
Cage Steel sheet, Nylon, Brass
Precision Grade P0 ( ABEC1 ), P6 ( ABEC-3 ), P5 ( ABEC-5 )
Vibration Grade Z1V1 Z2V2 Z3V3
Grease Speed 15000-20000

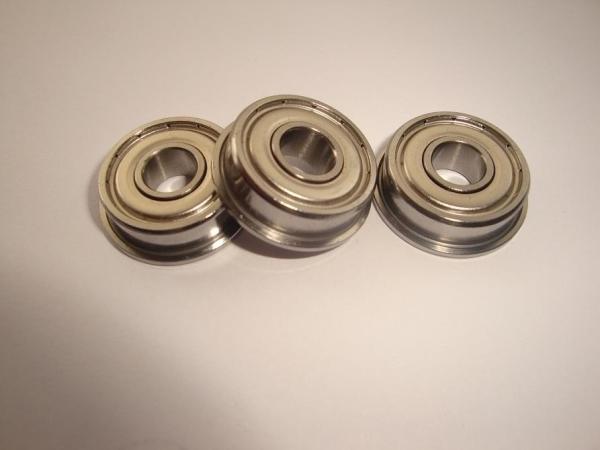

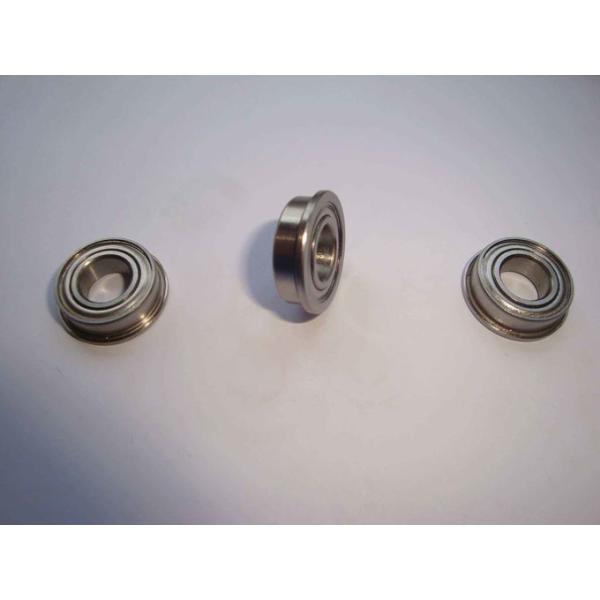

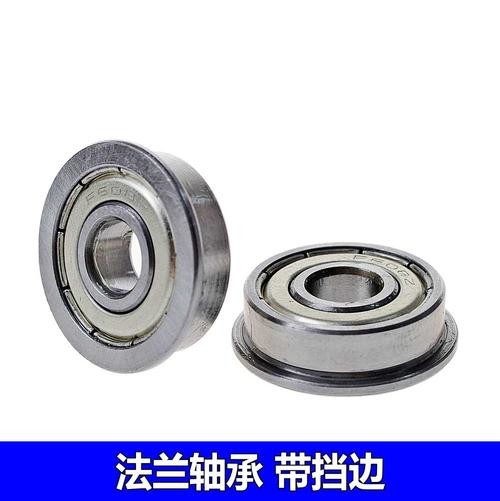

PHOTOS OF BEARINGS:

F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model

F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model

F684ZZ Double Shielded Flanged Ball Bearings For 3D Printer Model

earing NO Boundary diamensions (mm) Mass(g)
Open Shielded d D D1 D2 B B1 C1 C2 r min r1min open shield
MF85 -- 5 8 9.2 -- 2 -- 0.6 -- 0.1 -- 0.33 --
-- MF85ZZ 5 8 -- 9.2 -- 2.5 -- 0.6 -- 0.1 -- 0.41
MF95 MF95ZZ 5 9 10.2 10.2 2.5 3 0.6 0.6 0.15 0.15 0.59 0.66
MF105 MF105ZZ 5 10 11.2 11.6 3 4 0.6 0.8 0.15 0.15 1.05 1.46
F685 F685ZZ 5 11 12.5 12.5 3 5 0.8 1 0.15 0.15 1.37 2.18
F695 F695ZZ 5 13 15 15 4 4 1 1 0.2 0.2 2.79 2.84
F605 F605ZZ 5 14 16 16 5 5 1 1 0.2 0.2 3.9 3.85
F625 F625ZZ 5 16 18 18 5 5 1 1 0.3 0.3 5.37 5.3
F635 F635ZZ 5 19 22 22 6 6 1.5 1.5 0.3 0.3 9.49 9.49
MF106 MF106ZZ 6 10 11.2 11.2 2.5 3 0.6 0.6 0.15 0.1 0.65 0.77
MF126 MF126ZZ 6 12 13.2 13.6 3 4 0.6 0.8 0.2 0.15 1.38 1.94
F686 F686ZZ 6 13 15 15 3.5 5 1 1.1 0.15 0.15 2.25 3.04
F696 F696ZZ 6 15 17 17 5 5 1.2 1.2 0.2 0.2 4.34 4.26
F606 F606ZZ 6 17 19 19 6 6 1.2 1.2 0.3 0.3 6.58 6.61
F626 F626ZZ 6 19 22 22 6 6 1.5 1.5 0.3 0.3 9.09 9.09
F636 F636ZZ 6 22 25 25 7 7 1.5 1.5 0.3 0.3 14.6 14.7
MF127 MF127ZZ 7 11 12.2 12.4 3 3 0.6 0.6 0.15 0.1 0.72 0.82
MF137 MF137ZZ 7 13 14.2 14.6 4 4 0.6 0.8 0.2 0.15 1.7 2.23
F687 F687ZZ 7 14 16 16 5 5 1 1.1 0.15 0.15 2.48 3.37
F697 F697ZZ 7 17 19 19 5 5 1.2 1.2 0.3 0.3 5.66 5.65
F607 F607ZZ 7 19 22 22 6 6 1.5 1.5 0.3 0.3 8.66 8.66
F627 F627ZZ 7 22 25 25 7 7 1.5 1.5 0.3 0.3 14.2 14.2
MF128 MF128ZZ 8 12 13.2 13.6 2.5 3.5 0.6 0.8 0.15 0.1 0.82 1.15
F148 MF148ZZ 8 14 15.6 15.6 3.5 4 0.8 0.8 0.2 0.15 2.09 2.39
F688 F688ZZ 8 16 18 18 4 5 1 1.1 0.2 0.2 3.54 4.47

Advantages

SMR95 Bearings, extra light bearings are normally used in applications where space limitations are a primary consideration and shaft sizes are relatively large. 6200 6300 Series Bearings mainly take radial load as well as moderate axial load. With less coefficient of friction, less vibration and noise,less energy consumption, high limiting speed, large size range and variations of structure. Their straight forward basic design has many advantages:

1. Excellent for high speeds

2. High radial load capacity

3. Acceptable axial load capacity in both directions

4. Have low torque capacity at startup and running speeds

5. Can operate with low noise

6. Require little maintenance

Shipping details:

1).For a small order, we can send you by UPS,DHL,FEDEX,TNTOR EMS. Tracking number will be advised after delivery.
2).If order is big, we will advise you use Air Freight or Sea Freight.
3).The balance payment should be paid before delivery to you. 4). In generally, we delivery the goods within 15 days.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in
different brands, we also customize circuit board & packaging box as per your requirements.

Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for
sample orders.

Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
