Manganese steel wear plates for ball mill with 5mm gap by special process
Manganese steel wear plates for ball mill with 5mm gap by special process
Manganese steel wear plates for ball mill with 5mm gap by special process
Manganese steel wear plates for ball mill with 5mm gap by special process
Specifications
Brand Name :
JH
Certification :
ISO 9001: 2015
Place of Origin :
CHINA
MOQ :
1 piece
Payment Terms :
T/T
Supply Ability :
1000 tons/month
Delivery Time :
45 work days
Packaging Details :
steel pallet or wood pallet
Process :
Lost foam process + shell cores
Material :
Manganese Steel Mn18Cr2
Hardness :
180HB-220HB
Sample order :
Accept
Weight :
20-200kg/piece
Application :
Ball mill
Description


Manganese steel wear plates for ball mill with 5mm gap by special process

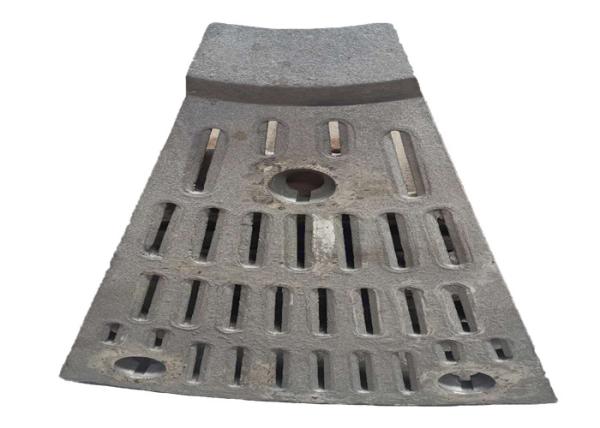

This wear plate is used for ball mills. It is the head plate in ball mill, and the material will get through the plate from the gap. Casting material is Mn13Cr2 or Mn18Cr2, but recently more and more customers have changed to alloy steels. The main difficulty for this plate is the 5mm gap, which is already over production limitation. If we do it by old process, some of gaps will gone. To over come this problem, we combine the lost foam casting process with shell molding process together, and we get good result.

We are also supplying different kind of manganese steel liner plate for our customers for different kind of crushers, we also produce liner plate by customers drawings or other requirement.

These hammers are used for all kinds of crushers such as cone crusher, jaw crusher, impact crusher and also millers, and these machine suitable for crushing medium hardness materials, such as limestone, slag, coke, coal, etc., in cement, chemical, electric power, metallurgy and other industrial sectors.

Following are the type of wear plate we are supplying now.

  • Mn18Cr2 wear plate for crushers
  • Mn13Cr2 wear plate for crushers
  • Mn13Cr2 wear plate for ball mill machine
  • Alloy steel wear plate for ball mill machine
  • Manganese wear plate for other machines

We produce thse plates by different process: sodium silica sand process, lost foam process, vacuum process and shell molding process.

Production process

Sand casting: for parts more than 50kg

Lost foam casting: for parts from 0.5-50kg

Shell molding: for parts with high surface requirement and dimension requirement

Vacuum process: for parts with big quantity and suitable shape
Material Manganese steel & chrome iron & alloy steel
Application Crushers, coal industry, power plant...
Quality control

Chimecal composition

Dimensions

UT/PT inspection if needed

100% PT for chrome iron casting

Hardness inspection

Machinical properties if needed

Metallographic test

Heat treatment report
