OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings
Specifications
Brand Name :
SND FOUNDRY
Model Number :
Check Valve
Certification :
ISO / CE
Place of Origin :
Zhengjiang,China
MOQ :
1 pcs
Payment Terms :
L/C, T/T
Supply Ability :
100,000 per year
Delivery Time :
20 days
Packaging Details :
Wood box/ wood pallet
Power :
Hydraulic, Solenoid, Pneumatic, Manual, Electric power+manual
Temperature :
Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly :
18 months
Connection :
Flanged, Welding, Thread, BSP&NPT
Application :
General, Oil and Gas, Petrochemical and Chemical Industry, Water and Wastewater,HVAC, c
Media :
Oil, Water, Gas, Air, Liquid
Body Material :
Carbon steel,stainless steel,chrome molybdenum steel,alloy steel
Packing :
Customized Acceptable
Customized Support :
OEM, ODM, OBM
Pressure :
150/300/600/900/1500/2500LB
Description

OEM ODM Manufacturers of Cast Steel Valve Bodies, Diaphragm Valve Housings, and Fittings

Overview

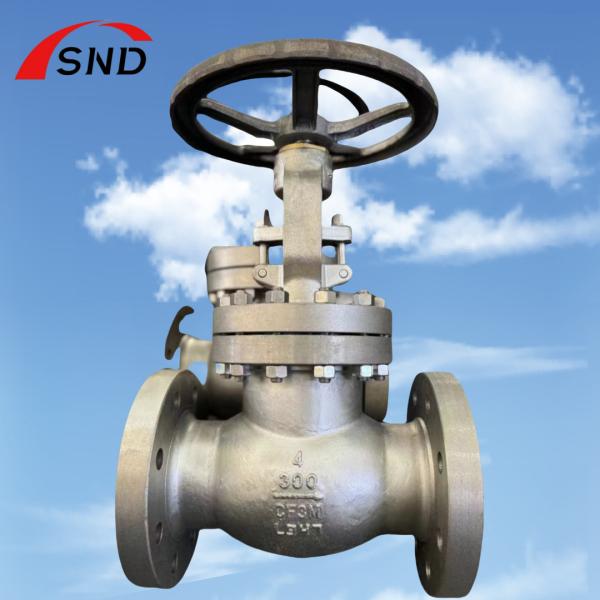

The American standard stop valve produced by our company is designed and manufactured in full accordance with American standards, with beautiful and advanced structure. The valve opening and closing parts are valve dances, the flow direction is low in and high out, the stop valve is fully opened and fully closed by the valve stem to operate the valve, and the conical valve dance can play a good throttling role, but cannot play a regulating role. It is mainly used to cut off or connect pipeline media in pipelines under various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries. The driving methods include manual, gear transmission, electric, pneumatic, etc.

PERFORMANCE PARMETER

NO Project name 150(Lb) 300(Lb) 600(Lb) 900(Lb) (1500Lb) 2500(Lb)
1 PN(MPa) 2.0 5.0 10.0 15.0 25.0 45.0
2 Case Test preesure(Mpa) 3.0 7.5 15.0 22.5 37.5 67.5
3 High-pressure sealing Test pressure(Mpa) 2.2 5.5 11.0 16.5 27.5 49.5
4 Maximum teperature Working pressure(Mpa) ≤2.0 ≤5.2 ≤10.4 ≤15.6 ≤25.8 ≤45.8

Probuct specification

Design Struture Length Connection flange Test and Inspection ASME B16.34
API 600 ASME B16.10 ASME B16.5 API 598 ASME B16.34

Main components material

Part Name Material name
Body A216WCB A217 WC6 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Valve cover A216WCB A217 WC6 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Valve plate A216WCB A217 WC6 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Sealing face 2Cr13 STL Body/STL Body/STL Body/STL Body/STL
Stem A180 2 F6a A182 F11 A182 F304 A182 F316 A182 F304L A182 F316L
Gasket 304+Flexible graphite 304+Flexible graphite 304+Flexible graphite 304+Flexible graphite 304+Flexible graphite 304+Flexible graphite
Bolt A193 B7

A193 B7

 A193 B8 A193B8M A193 B8M A193 B8M
Nut A194 2H A194 6 A194 8 A194 8M A194 8M A194 8M
Appicable temperature -29-425℃ -29-540℃ -46-425℃ -46-425℃ -46-425℃ -46-425℃
Suitable medium Water, steam, oil, etc. Water, steam, etc. Nitric acid weak corrosive medium Nitric acid weak corrosive medium Nitric acid weak corrosive medium Nitric acid weak corrosive medium

OEM ODM Cast Steel Valve Bodies Diaphragm Valve Housings and Fittings

Types of Stop Valves

Direct current stop valve
In direct current or Y-shaped stop valves, the flow channel of the valve body is in an oblique line with the main flow channel, so that the degree of disruption of the flow state is less than that of a conventional stop valve, and the pressure loss through the valve is correspondingly smaller.

Angle stop valve
In an angle stop valve, the fluid only needs to change direction once, so that the pressure drop through this valve is smaller than that of a stop valve of conventional structure.

Plunger stop valve
In this valve, the valve disc and valve seat are usually designed based on the plunger principle. The valve disc is polished into a plunger and connected to the valve stem. The seal is achieved by two elastic sealing rings on the plunger. The two elastic sealing rings are separated by a collar, and the sealing ring around the plunger is pressed firmly by the load applied to the valve cover by the valve cover nut. The elastic sealing ring can be replaced and can be made of various materials. The valve is mainly used for opening or closing, but with a special form of plunger or special collar, it can also be used to adjust the flow.
