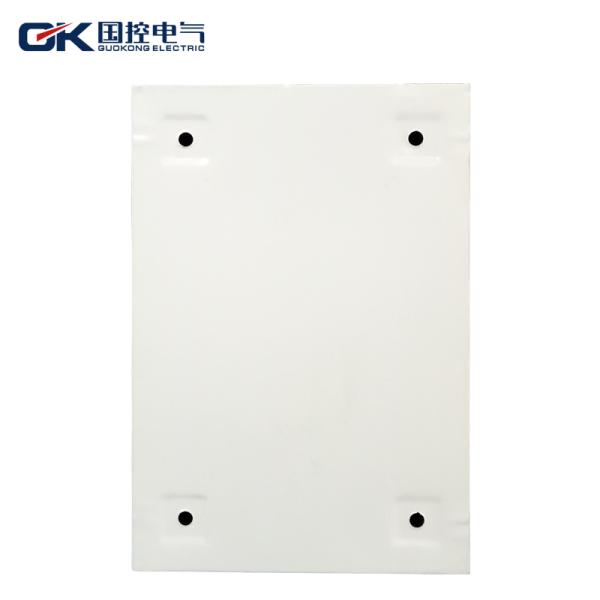

Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Surface Mounted Electrical Distribution Box , Power Distribution Box With Lock Grey Coating
Specifications
Brand Name :
QK
Model Number :
20-30-15
Certification :
RoHS, CE, UL,CCC,ISO9001
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000 Pieces/month
Delivery Time :
5-8 work days
Packaging Details :
Regular export packing and can accept customized
Material :
Sheet Steel/Stainless Steel
Thickness :
1.0/1.2/1.5mm
Delivery Date :
5-8 Work days
Door :
Single Door
Ground wire :
Yes
Paint Finish :
Epoxy Polyester Coating
Description
Single Door Stainless Steel With Lock Grey Coating JXF Indoor Distribution Box

Distribution boxes and distribution cabinets, distribution panels, distribution panels, etc., are centrally installed switchgear, meters and other equipment sets.

Commonly used distribution box has two kinds of wood and metal, because metal distribution box protection level is higher, so metal is still used more.

The use of distribution box: reasonable distribution of electrical energy to facilitate the operation of circuit opening and closing. It has a higher level of safety protection, which can visually display the conduction state of the circuit.

Construction
1. Body and door manufactured in 1.2/1.5mm sheet stell.
2. Mounting plate with folded edge In 2.0 mm sheet steel
3. Finished with thermosetting epoxy polyester powder coating. Body and door textured finish.
4. Mounting plate in smooth finish.
5. Protection Degree IP 55/65 protection degree

Boxes are completed with:
1. Two zincpassivated rails to be fixed on the door.
2. Mounting plate.
3. Gland plate and gasket.
4. Package with hardware for earth connection and screws to mount all Components.

Industrial 3 phase power distribution box

Characteristic

Product name Distribution box
Material Sheet Steel
OEM Offered
Package 1 Piece Per Carton
Certification CE,CCC,ROHS,TUS
Paint Finish Epoxy Polyester Coating
Lock Available On Request
Thckness 1.2mm*1.5mm*1.5mm
Color Ral7035
Accessories Wall Mount Brackets To Be Offered Seperately

If you need specified product,please consult us.

Standard Overall Dimension
Height(mm) Width(mm) Depth(mm) Thickness(mm)
JXF302515 300 250 150 1.0/1.0/1.0
JXF403015 400 300 150 1.0/1.2/1.2
JXF504015 500 400 150 1.0/1.2/1.2
JXF403020 400 300 200 1.0/1.2/1.2
JXF504020 500 400 200 1.0/1.2/1.2
JXF604020 600 400 200 1.0/1.2/1.2
JXF605020 600 500 200 1.2/1.5/1.5
JXF705020 700 500 200 1.2/1.5/1.5
JXF806020 800 600 200 1.2/1.5/1.5
JXF1008020 1000 800 200 1.5/1.5/2.0
JXF504025 500 400 250 1.0/1.2/1.2
JXF605025 600 500 250 1.2/1.5/1.5
JXF806025 800 600 250 1.2/1.5/1.5
JXF1008025 1000 800 250 1.5/2.0/2.0
JXF1008030 1000 800 300 1.5/2.0/2.0
JXF12010030 1200 1000 300 1.5/2.0/2.0

Industrial 3 phase power distribution box
