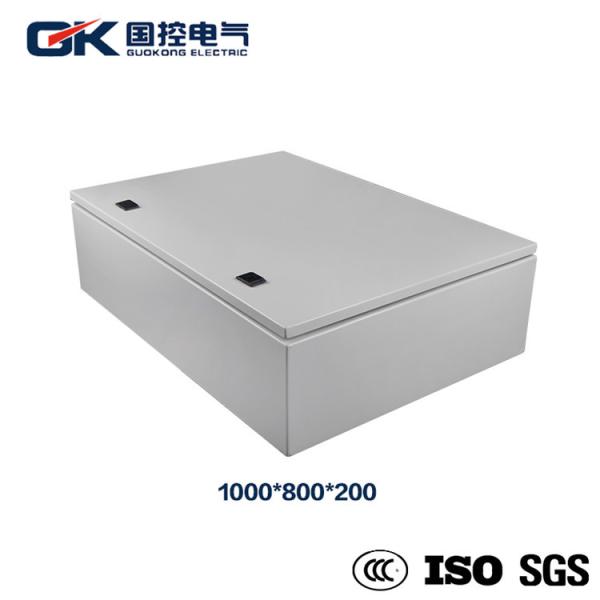

Indoor Painted carbon steel RAL 7035 light gray solar module distribution box
Indoor Painted carbon steel RAL 7035 light gray solar module distribution box
Indoor Painted carbon steel RAL 7035 light gray solar module distribution box
Indoor Painted carbon steel RAL 7035 light gray solar module distribution box
Specifications
Place of Origin :
China
Brand Name :
QK
Certification :
RoHS, CE, UL,CCC,ISO9001
MOQ :
1 Piece
Payment Terms :
T/T,L/C,Western Union
Price :
Negotiation
Packaging Details :
Regular export packing and can accept customized
Supply Ability :
1000 Pieces/month
Delivery Time :
5-8 work days
Model Number :
JXF1008020
Customization :
Accept Enclosure Customized
Ground wire :
Yes
Function :
Waterproof Dustproof
Paint Finish  :
Epoxy Polyester Coating
Door :
Single door
Delivery Date :
5-8 Work days
Description
Ip66 Cold Rolled Steel Plate Stainless Steel Custom-made Electrical Distribution Box

JXF series base industry box (export) more than 30 kinds of specifications, the products all use cold rolled steel plate, the advanced production technology and the only and with advanced level of CNC fully automatic production line at home, the surface through epoxy resin electrostatic spraying treatment, beautiful and durable. The sealing strip of the box door is built in one time by the imported sealing strip casting machine. It has the advantages of dust-proof, rainwater infiltration and so on. There is a line hole under the box, with a line hole cover plate (the cover plate is equipped with a seal), the protection grade is up to IP65, the inside of the box is equipped with the installation floor, which can fit all kinds of electrical equipment and the door plate opens more than 90. Degree, turn flexibly.

Boxes are completed with:
1. 2 zincpassivated rails to be fixed on the door.
2. Mounting plate.
3. Gland plate and gasket.
4. Package with hardware for earth connection and screws to mount all Components.

Characteristic

Product name Distribution box
Material Sheet Steel
OEM Offered
Package 1 Piece Per Carton
Certification CE,CCC,ROHS,TUS
Paint Finish Epoxy Polyester Coating
Lock Available On Request
Thckness 1.5mm*1.5mm*2.0mm
Color Ral7035
Accessories Wall Mount Brackets To Be Offered Seperately

If you need specified product,please consult us.

Standard Overall Dimension
Height(mm) Width(mm) Depth(mm) Thickness(mm)
JXF302515 300 250 150 1.0/1.0/1.0
JXF403015 400 300 150 1.0/1.2/1.2
JXF504015 500 400 150 1.0/1.2/1.2
JXF403020 400 300 200 1.0/1.2/1.2
JXF504020 500 400 200 1.0/1.2/1.2
JXF604020 600 400 200 1.0/1.2/1.2
JXF605020 600 500 200 1.2/1.5/1.5
JXF705020 700 500 200 1.2/1.5/1.5
JXF806020 800 600 200 1.2/1.5/1.5
JXF1008020 1000 800 200 1.5/1.5/2.0
JXF504025 500 400 250 1.0/1.2/1.2
JXF605025 600 500 250 1.2/1.5/1.5
JXF806025 800 600 250 1.2/1.5/1.5
JXF1008025 1000 800 250 1.5/2.0/2.0
JXF1008030 1000 800 300 1.5/2.0/2.0
JXF12010030 1200 1000 300 1.5/2.0/2.0
