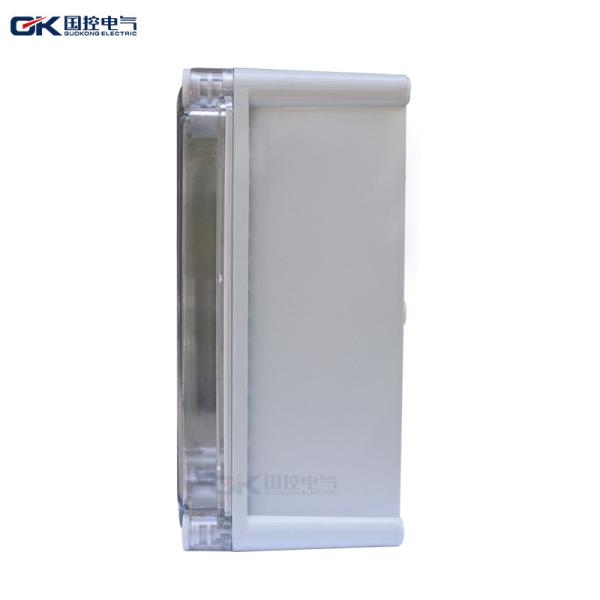

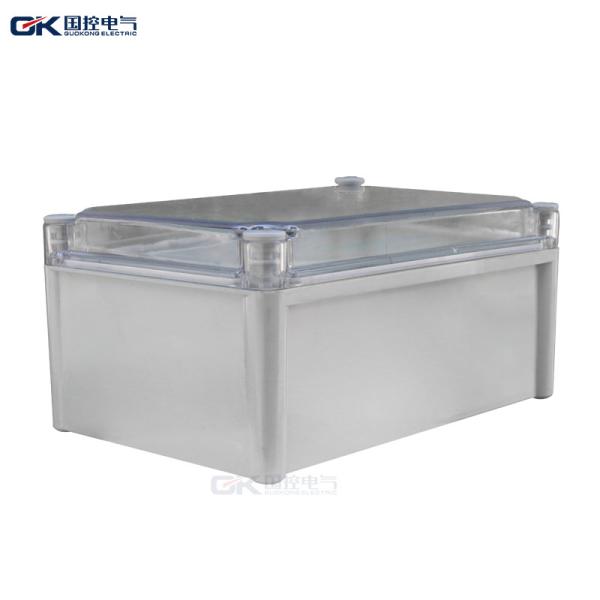

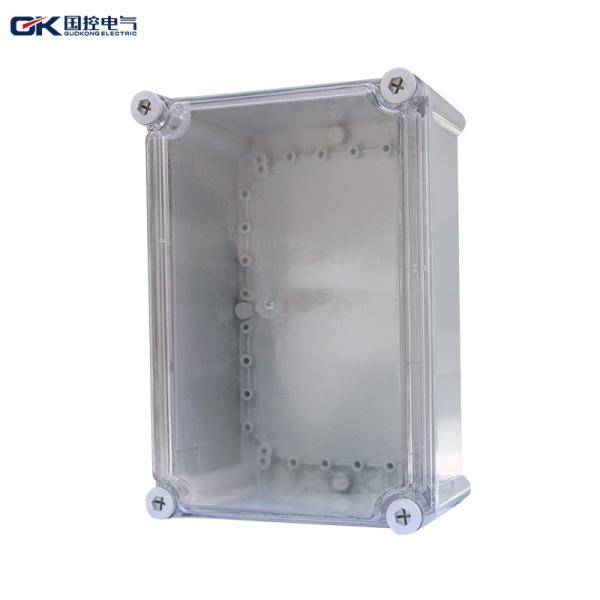

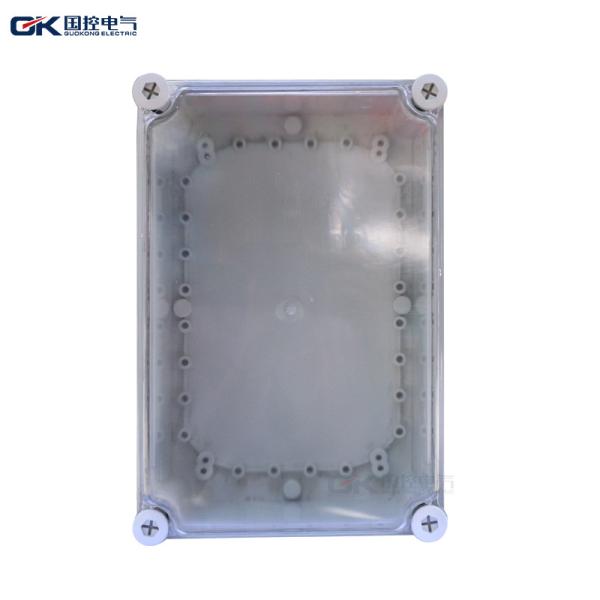

Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Electrical Interior Junction Box , Plastic Terminal Box With Screws Installation
Specifications
Brand Name :
QK
Model Number :
TY-AT-2819
Certification :
RoHS, CE, UL,CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotion
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Regular export packing and can accept customized
Dimension :
280*190*130
MOQ :
1 PCS
Protection Level :
IP65
Product Name :
Plastic junction box
Certificate :
RoHS, CE, UL,CCC
Payment :
L/C, T/T, Western Union
Description

Electrical Plastic Screws Installation Column Waterproof Dustproof Plastic Junction Box

ADVANTAGE

Terminal
The two installation methods:
1. install the wall with self tapping screws through the four corner screw holes on the back of the housing.
2. the back of the shell is reserved for installation holes, which can be equipped with mounting angle and fixed on the wall.

Positioning device
Professional plastic screws will not rust and deform for a long time. The unique anti shedding design avoids the easy loss of screws.

Screw
Anti dropping screws adopt imported reinforced PC plastic injection molding, high strength, insulation, corrosion resistance, installation is strong and convenient. The anti falling screw solves the trouble of screw falling during use.

Dimension: LxWxHSolid CoyerClear Coyer
65x50x55GK-0506GKAT-0506
95X65X55GK-0609GKAT-0609
110x80x45GK-0811-SGKAT-0811-S
110x80x70GK-0811GKAT-0811
110x80x85GK-08111-1GKAT-0811-1
100*100x75GK-1010GKAT-1010
130x80x70GK-0813GKAT-0813
130x80x85GK-0813-1GKAT-0813-1
160x80x55GK-0816-SGKAT-0816-S
180x80x70GK-0818GKAT-0818
180x80x85GK-0818-1GKAT-0818-1
250x80x70GK-0825GKAT-0825
250x80x85GK-0825-1GKAT-0825-1
125x125x75GK-1212-SGKAT-1212-S
125x125x100GK-1212GKAT-1212
175x125x75GK-1217-SGKAT-1217-S
170x120x100GK-1217GKAT-1217
175x125x100GK-1217-1GKAT-1217-1
170x140x95GK-1417GKAT-1417
150x150x120GK-1515-1GKAT-1515-1
175x175x100GK-1717-1GKAT-1717-1
200x150x75GK-1520-SGKAT-1520-S
200x150x100GK-1520GKAT-1520
200x150x130GK-1520-1GKAT-1520-1
250x150x100GK-1525GKAT-1525
250x150x130GK-1525-1GKAT-1525-1
200x200x95GK-2020-SGKAT-2020-S
200x200x130GK-2020GKAT-2020
280x190x130GK-2819GKAT-2819
