Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Dustproof Plastic Junction Box Indoor Outdoor Electric White PC Material Custom - Made
Specifications
Brand Name :
QK
Model Number :
TY-ZS-2010
Certification :
RoHS, CE, UL,CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotion
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Regular export packing and can accept customized
Dimension :
200*100*70
Payment :
L/C, T/T, Western Union
OEM :
Offered
Brand :
QK
Application :
Can be used at home, hotel,office building and any other places
Description

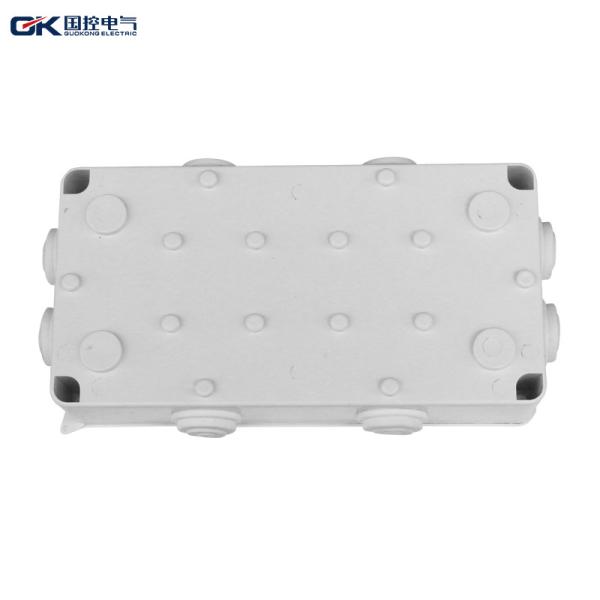

Dustproof Custom-made Indoor / Outdoor White PC Material Waterproof Plastic Junction Box

Waterproofing junction box is mainly applicable to indoor and outdoor electrical, communication, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electric power, railway, construction sites, mines, mines, airports, hotels, ships, large factories, coastal factories, unloading terminals, sewage treatment facilities, environmental pollution. Do so.

Shell material: ABS

Material properties: impact resistance, heat resistance, low temperature resistance, chemical resistance, excellent electrical properties, good surface gloss and so on.

Authentication: CE, ROHS

Application: suitable for indoor and outdoor electrical, communication, fire fighting equipment, iron and steel processing, petrochemical, electronics, electric power, railway, construction site, mining.

Mines, airports, hotels, large ship factories, coastal factories, unloading terminal facilities, sewage treatment facilities, environmental pollution facilities, etc.

Installation method:

1. internal installation: inside the box there is a boss for circuit boards or DIN track components.

2. external installation: it can be fixed directly on the wall surface through the installation holes at the bottom of the box. It can be fixed directly by screws or nails through the four corners of the box.

On a wall or board. A hole and all the mating waterproof and clamped joints to achieve waterproof effect.

3. waterproof performance: super strong waterproof, protection level of more than IP65, even when the heavy rain during the operation will not water, very safe.

4.waterproof grade IP65 certification test is passed.

Type LxWxH(mm) Packing Quantity Order code
GK-ZSX-55 50*50 320 ZSX-55
GK-ZSX-85 80*50 240 ZSX-85
GK-ZSX-0808 80*80*50 240 ZSX-0808
GK-ZSX-0808-1 85*85*50 200 ZSX-0808-1
GK-ZSX-1010 100*100*70 100 ZSX-1010
GK-ZSX-1511 150*110*70 60 ZSX-1511
GK-ZSX-1515 150*150*70 56 ZSX-1515
GK-ZSX-2010 200*100*70 50 ZSX-2010
GK-ZSX-2010-1 200*100*110 50 ZSX-2010-1
GK-ZSX-2015 200*155*80 40 ZSX-2015
GK-ZSX-2020 200*200*80 36 ZSX-2020
GK-ZSX-2520 255*200"80 30 ZSX-2520
GK-ZSX-3025 300*250*120 10 ZSX-3025
GK-ZSX-4035 400*350*120 5 ZSX-4035
