Specifications
Brand Name :
zhonganxie
Model Number :
Arsenal-24s
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Delivery Time :
5-7 working days
Packaging Details :
carton box
LED Display :
Both Sides
sensitivity :
1-200 level
Gross weight :
71 KG
Working voltage :
90V~240V 50/60Hz
Working frequency range :
1-50 brands
Working environment temperature :
-20℃ ~ 55℃
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Description

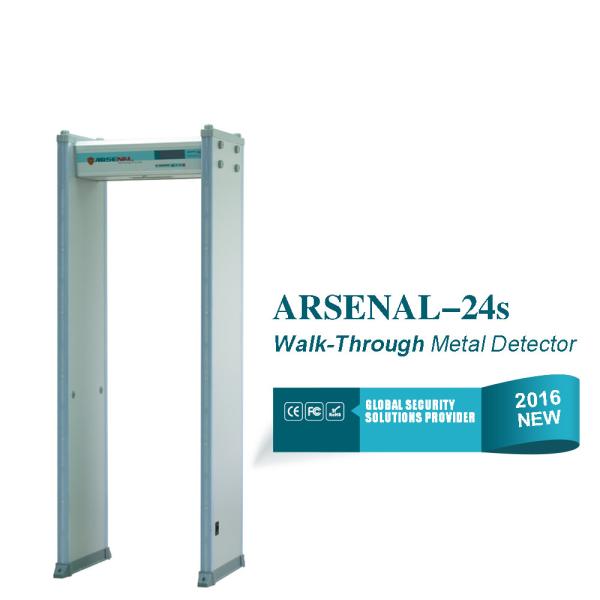

6/18 Zones safe Archway Metal Detector Door Frame with double infrared switch

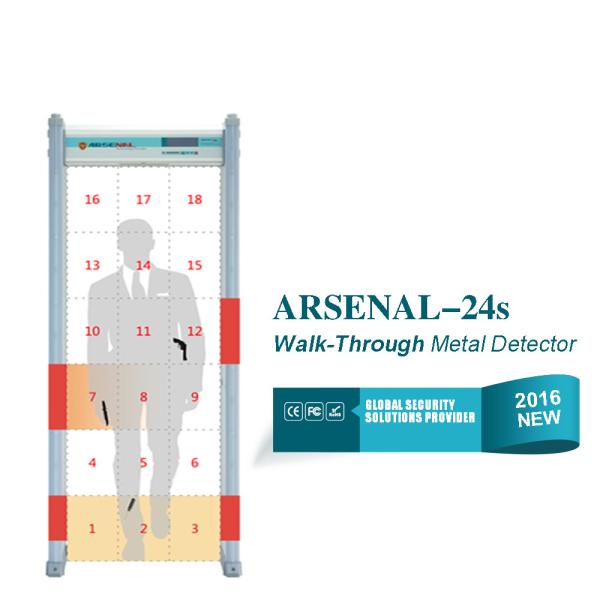

Detection zone: 6/18 zones

Easy to Install, Simple to Operate

Counter: Record the pass and alarm numbers

Brands cooperation,ODM,OEM

Features

  1. High performance , high sensitivity , high stability,it can detect 4g ferrous metals (flaky landscape) accurately.
  2. Sound and light alarm
  3. wo parts: right and left detecting board + mainframe ergonomically designed, tamper-proof and anti-blind spots designed.
  4. Detect zone: free to change as single zone, 8 detect zone, 16 detect zone
  5. Multi-detection , multi-zone, multi- launch and reception , interactive detection technology .Sensitivity adjustable from Level 0 to 200
  6. High: Can detect a small coin
  7. Low: Detect big metal articles such as: knife, gun,and copper, aluminums, zinc (more than 150g),
  8. Set each zone's sensitivity freely,and it can effectively exclude their own keys, belt buckles, bra, mobile phones and other metal objects.
  9. High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation.
  10. Slant main chassis designed all-metal structure , patented large countersunk head bolts for doors, easy to assemble and stable structure.
  11. Harmless to pregnant woman and heart pacemaker
  12. Connect with computer, camera, turnstile,etc (Optional)

Specification

Model Number ARSENAL-24s
Vertical dimension 2240x670x860mm
Vertical channel size 2020x700mm
Main box packing size 755x435x255mm
Detection door packing size 2290x640x220mm
Net weight of main box/detection door 63KG
Gross weight of main box/detection door 71KG
Working voltage 90V~240V 50/60Hz
Power consumption 20W
Working frequency range 1-50 brands
Working environment temperature -20℃ ~ 55℃
Installation environment (W) 100cm* (L) 200cm
(minimum range without metal)

Application

1. Places which should be security examined. Such as airport, customs, harbor, station, etc.

2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.

3. Public places entrances Such as important place, exhibition, business rally, celebration meeting,

stadium, etc.

4. Industries where the valuable metal articles should be avoided missing. Such as hardware,

electronics, jewelry, coinage line , etc.

5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater,

ballroom, bar, KTV, etc.
