Specifications
Brand Name :
Zhonganxie
Model Number :
Arsenal-24a
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Carton boxes or according customer's need
Main box packing size :
755x340x210mm
Net weight of main box/detection door :
59.1KG
Gross weight of main box/detection door :
66.1KG
Working voltage :
100-240V,50/60Hz
each zone sensitivity :
200 level
Working environment temperature :
-20℃ ~ 85℃
Description

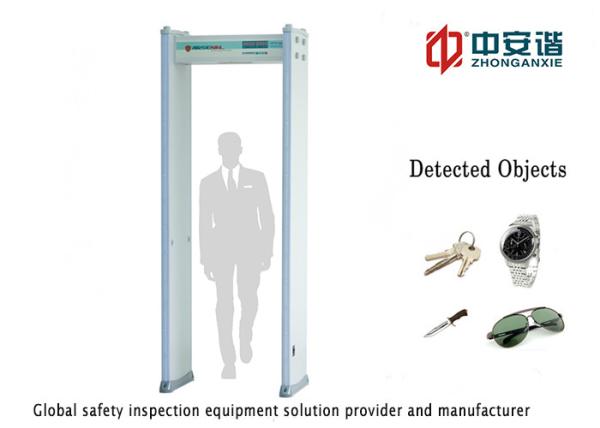

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones


Features

  1. Patented structural components, and windproof, moistureproof, dustproof design.
  2. System with password management techniques.
  3. High performance , high sensitivity , high stability,it can detect 6g ferrous metals (flaky landscape) accurately.
  4. Multi-probe , multi-zone, multi- launch and reception , interactive detection technology .
  5. High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .
  6. The super brightness SMD double district alarm indicators , multi-angle display the hiding place of prohibited items.
  7. The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
  8. The unique infrared start-stop technology, is better to meet customers' need.
  9. High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
  10. It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
  11. Able to link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
  12. With upgrade ports, we provide lifelong upgrade services, it can be achieved the secondary development according to user's need.
  13. Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.
  14. On each side of the door designed is the power interface, which can better meet the users' needs.

Specification

Model Number ARSENAL-24a
Technical Parameters
Vertical dimension 2200x500x830mm
Vertical channel size 2000x700mm
Main box packing size 755x340x210mm
Detection door packing size 2290x630x180mm
Net weight of main box/detection door 59.1KG
Gross weight of main box/detection door 66.1KG
Working voltage 100-240V,50/60Hz
Power consumption 20W
Working frequency range 1-50 bands
Working environment temperature -20℃ ~ 85℃
Installation environment (W) 100cm* (L) 200cm
(minimum range without metal)

Our advantages


1.Brands cooperation,ODM,OEM
2.Sales of a complete set of technical solutions
3.Technical guidance and training for customers
4.Product design, technology development, parts processing and sales integration services
5.One of the world's top four brands, leading technology, quality first, service first-class
6.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need

Exhibition display

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Workshop display

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Certification

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Company introduction

ARSENAL, an international brand in Europe and America , and one of the world's four leading security brand. USA ARSENALSecurity Group , founded in the mid-century, is now a registered capital of $ 100 million ,headquartered in Florida,USA , the world 's leading manufacturer of security equipment .

In the 21st century , ARSENAL Hong Kong Security Group introduced into Asia , in 2011 it successfully authorized thefirst Technical Cooperation in mainland - Shenzhen Zhonganxie Technology Co., Ltd. , and signed the cooperation.Zhonganxie Technology Co., Ltd. , the only technical cooperation company in the mainland is a Hong Kong Group operatesUnited States ARSENAL, located in China 's reform and opening special economic zone city - Shenzhen, Zhonganxie iscommitted to the introduction of ARSENAL security brand and its technology , the secondary development, production ,sales and service of high-tech enterprises.

Zhonganxie Technology Co., Ltd mainly in the research, production : metal detectors , X-ray baggage security screeningequipment , drugs and explosives detectors , fireworks detectors, vehicle visual search and other securityequipments.Security products includ doors, hazardous liquid detector, underground metal detectors, hand-held metaldetectors, needle machine, food and drug detection instrument, baggage screening machines, vehicle bottom inspectionmirrors and so on. There is one of the four American security brands in the world, USA Arsenal Security Group ,to betechnical support ,Zhonganxie Technology has always stood in the forefront of Chinese security manufacturing industryand become the market leader !
In order to meet the market development , the parties request , Shenzhen Zhonganxie Technology Co., Ltd. the marketingcenter integrate all resources to make scientific decisions for the brand planning, market operation, marketing system, standardize management , so as to ensure security, active, efficient, rapid development.

We invite all parties with lofty ideals , guests friends to seek common development , to lead the world's securitybusiness! We sincerely welcome you to join!

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones

Colleges Security Walk Through Metal Detector Door With 18 Detect Zones
