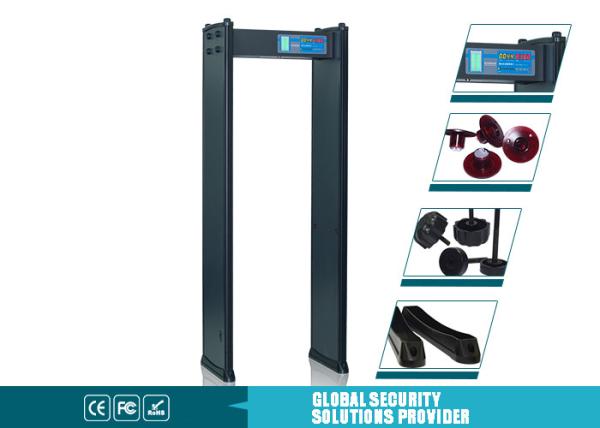

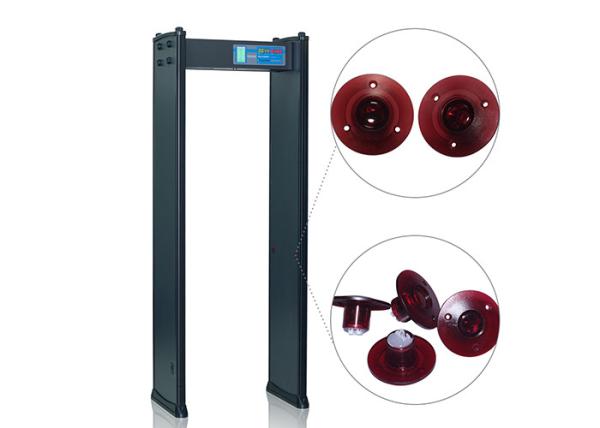

Double infrared switch walkthrough metal detectors for factory safety inspection
Double infrared switch walkthrough metal detectors for factory safety inspection
Double infrared switch walkthrough metal detectors for factory safety inspection
Double infrared switch walkthrough metal detectors for factory safety inspection
Specifications
Brand Name :
Zhonganxie
Model Number :
TD-800
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Carton boxes or according customer's need
Inspection rate :
1 person/second
Detection zones :
4 zones
Main box packing size :
755x340x210mm
Gross weight :
62.8KG
Working frequency range :
1-50 bands
Detection door packing size :
2290x630x190mm
Description

Double infrared switch walkthrough metal detectors for factory safety inspection

Product Description

Model No: TD-800

Detection zone: 4 zone

Application situation: intdoor use

Apperance: European and American design style

Easy to Install, Simple to Operate

switch power : meet power supply of different country

High speed detection: more than 60 people pass and detect in 1 minute

Features

  1. Nice for use at building entrances, malls, airports and market or factory entries
  2. LED friendly operation interface for user
  3. Sensitivity adjustable, three patterns such as high, middle and low for various requirements
  4. pre-set metal size, weight, volume, location to exclude coin, key and belt
  5. visible alarm simultaneously to ascertain layout of metal articles
  6. Two parts: right and left detecting board + mainframe ergonomically designed, tamper-proof and anti-blind spots designed.
  7. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference
  8. Count passengers and alarm times automatically
  9. ensitive control knob for precise setting at desired levels
  10. Inspection rate: 1 person/second
  11. Sensitivity level, three patterns such as high, middle and low for various requirements
  12. Password protection and only authorized person can operate
  13. Automatic fault diagnostic

Specification

Model Number TD-800
Technical Parameters
Vertical dimension 2230x580x850mm
Vertical channel size 2000x700mm
Main box packing size 755x340x210mm
Detection door packing size 2290x630x190mm
Net weight of main box/detection door 56.6KG
Gross weight of main box/detection door 62.8KG
Working voltage 90V~240V 50/60Hz
Power consumption 20W
Working frequency range 1-50 bands
Working environment temperature -20℃ ~ 65℃
Installation environment (W) 100cm* (L) 200cm
(minimum range without metal)
