455 Sensitivity Portable Metal Detector Gate With LCD Touch Screen APP Remote Control
Portable Design, Movable Free/Product Modularization, Maintenance Friendly Special Material, High-strength Lightweight Unique Technology, Waterproof Rain-proof Pipeline Assembly, Ultra-high Accuracy
● Multiple defense area technology: 8, 16, 24 detection defense area can provide self-switching, intelligent partition(can provide more defense area upgrade technology)
● Operating frequency band: ultra-wide operating frequency band(0-120)with adaptive function of working environment.
● Super shell protection technology: IP67 superior protection performance(optional)
● Detection area sensitivity: mobile phone APP remote control come true, zero
distance all over the world. ● Adaptive diagnosis system: when the system starts up, the adaptive diagnosis and detection hardware will work to escort you.
Product Advantage
● Adaptive debugging system: when the system enters the debugging system, it can adapt to debugging detection standard.
● Start and stop technology: infrared device has automatic start and stop technology, life extension 100 times.
● The detection and defense zones can be divided by self-adjustment (the number of detection and defense zones can be compiled by itself)
● Sensitivity of each detection area can be adjusted free. (with adaptive regulation technology)
● Sound, light alarm, alarm tone, alarm duration can be adjusted free.
● Detection ability: has the detection passing ability of more than 100 people in 1 minute.
● Query function: the system has real-time information query function.
Features
- Operating frequency can be adjusted manually or automatically
-
Mobile connection technology: realize mobile APP remote control
-
IP Grade: IP55 superior waterproof performance(optional)
-
Self calibration once power on
-
Self diagnostic, it will inform the user when exit the system
- Move after folded or installation(two move methods to choose)
- Detection technology: Even detection technology,no blind spot
- Internet technology:Remote upgrade system and remote control system
- Working band: 100 working bands
- Adjustable sensitivity of each detection zone
- Multi-alarm sounds to choose
- Sensitivity of each detection zone:255level
- Statistics: Record the pass and alarm numbers
- Query function: The system has real-time information query function
- Intelligent Standby: The system has intelligent standby operation alerts
- Detection speed: more than 60 people pass and detect in 1 minute
Specification
Detection objects: knives,guns,coins External Dimension:2250x850x500mm
Passage Dimension: 2051x710x500mm Fold Dimension:889x606x484mm
Packing Dimension: 1000x720x590mm Humidity: 99%, non-condensing
Working environment: -20 ℃~85 ℃ Weight: NW 48KG, GW 53KG
Input : AC 110V~240V/50Hz~60Hz Output : DC 12V/5A 12W
Power supply: the whole system is equipped with polymer battery,life time 8,16,24,48,72
hours (optional).
| |
| Product model | 24 zones 7-inch touch screen Portable |
| Detection object | contraband, more magnetic metal |
| Channel size | 2051x720x500mm(width can be customized 720~1500mm) |
| Folding size | 889x606x484mm |
| Vertical dimension | 2250x830x500mm |
| Package size | 985x700x570mm |
| Working Humidity | 99%, non-condensing |
| Working environment | -20℃~65℃ |
| Power supply | The whole system is equipped with polymer battery, which can last 8,16,24,48 and 72 hours(optional) |
| Input | AC 110V~240V/50HZ~60HZ |
| Output | DC 12V/5A 12W |
| Weight | N.W.: 53KGS, G.W.: 66KGS |

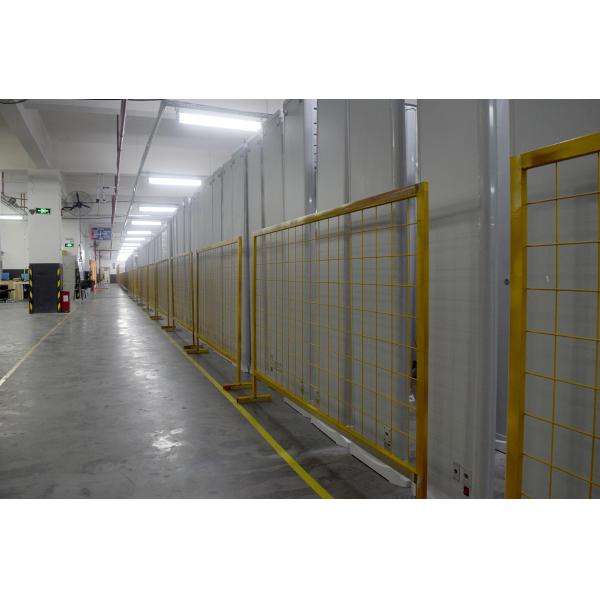

Factory Display
