Specifications
Brand Name :
zhonganxie
Model Number :
TD-800/24
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
5-7 working days
Packaging Details :
carton boxes
Waterproff :
support
screen :
7-inch LCD capacitive touch screen
IP Grade :
IP55
Working frequency :
100 working frequency
NW :
67KG
Power :
12W
Description

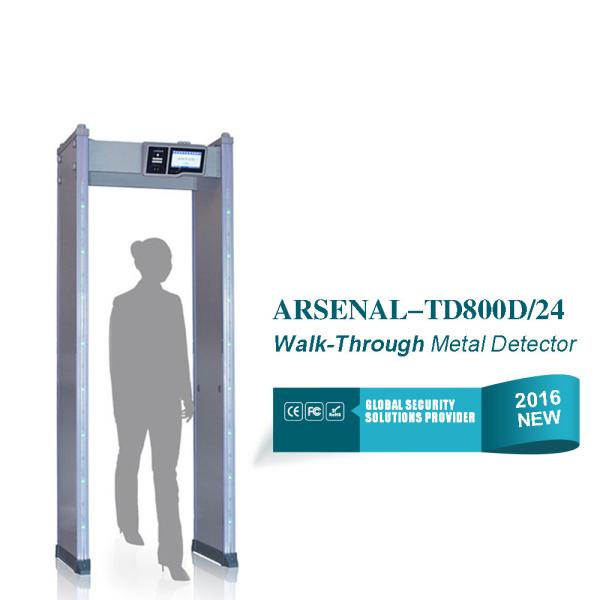

LCD Touch Screen Arch Metal Detector Door Frame For Security Check

Advantages

1. Multi-zone technology:24 detection zones,adjust sensitivity of each zone individually

2. Long time power supply

Lithium battery,the whole system is equipped with polymer battery,life time 8,16,24,48,72 hours (optional).

3. Waterproof

The new deep sea waterproof technology

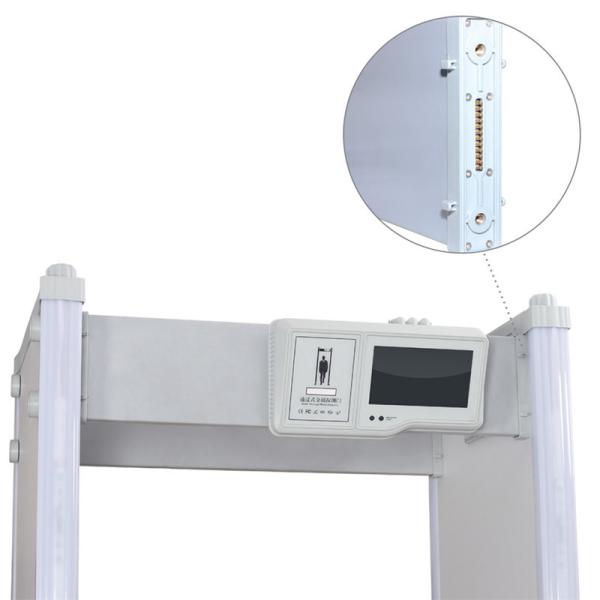

4. 7-inch LCD touch screen,easy and simple operation

5. IP Grade: IP55 superior waterproof performance(optional)

Features

  1. Mobile connection technology: realize mobile APP remote control(optional).
  2. IP Grade: IP55 superior waterproof performance(optional).
  3. Self calibration once power on.
  4. Self diagnostic, it will inform the user when exit the system.
  5. Start-stop technology:infrared devices with automatic start-stop technology.
  6. Adjust the alarm sounds arbitrarily.
  7. Adjust the working frequency automatically or manually.
  8. Detection Technology:Even detection technology, no blind spot.
  9. rofessional detection process:built in 60 different detection occasions(providing upgrade services).
  10. Security level:100 security levels.
  11. Multi-alarm sounds to choose-to fit different applications.
  12. Counter: Record the pass and alarm numbers.
  13. Query function: The system has real-time information query function.
  14. Intelligent Standby: The system has intelligent standby operation alerts.

Specifications

Model

TD-800D/24

External dimensions

2240×670x850mm

Vertical channel size

2000x700mm

Packing size

2280x700x290mm

NW

67KG

GW

75KG

Working voltage

AC90V~240V 50/60Hz

Power

12W

Working frequency

1-100

Working environment

-20℃~65℃

Installation environment

(W) 100cm* (L) 200cm

(no metal in this range)

Highest standard

Metal size≥6g

LCD Touch Screen Arch Metal Detector Door Frame 12 Watt IP55 For Security Check

Our Service

1. All products purchased in our company are guaranteed to keep in good repair for two year.

2. If quality problems happen in guarantee period, our company will maintain for free.

3. Additionally, our company provides technical support and fittings for life.

Our advantages

  • Product design, technology development, parts processing and sales integration services
  • Sales of a complete set of technical solutions
  • Technical guidance and training
  • One of the world's top four brands, leading technology, quality first, service first-class
  • Twenty-four hours service
  • Brands cooperation,ODM,OEM
  • Professional engnieers of many years

Applications

Government Buildings

Embassies

Police Facilities

Court houses

Prisons and jails

Military Bases

Hospitals

Banks

Financial Institutions

Colleges and Schools

Hotels and Casinos

Power plants

Research Sites

Sports Stadiums

Our service

  • Professional reply for your question in time during Monday to Friday 24 hours.
  • All of our product already get pass the aging test, to ensure reliability of using.
  • Quality inspection department will check the machine again before packing
  • One years spare parts in free for replacing the broken after delivery .
  • Remote control the machine for diagnosing
  • Technic support by video and telephone
