PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
Specifications
Brand Name :
Zhongshan
Model Number :
ZS-121
Certification :
ROHSISO9001,2000
Place of Origin :
JIANGSU(China mainland)
MOQ :
100 pieces
Price :
negotiation
Payment Terms :
30% deposit,the 70% balance after shipment or full payment before air transportation
Supply Ability :
50000 pieces per week
Delivery Time :
within one week after receiving order payment
Packaging Details :
Seal plastic bags with carton boxes or due to customer detail requirements
brand name :
Zhongshan
model number :
ZS-121
application :
Micro-wave oven
overlay material :
PET/ PVC
shipment way :
by sea or by air
current contact :
2-24V
Description

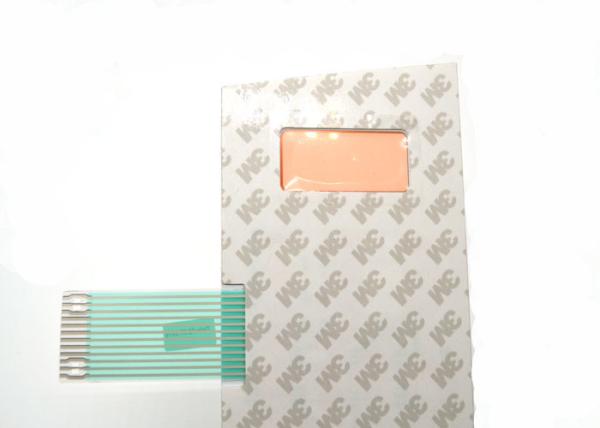

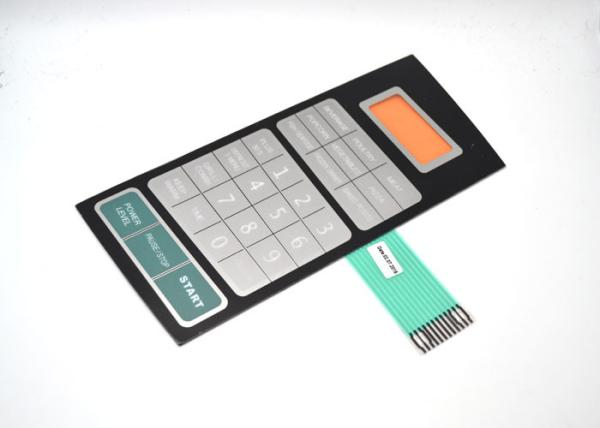

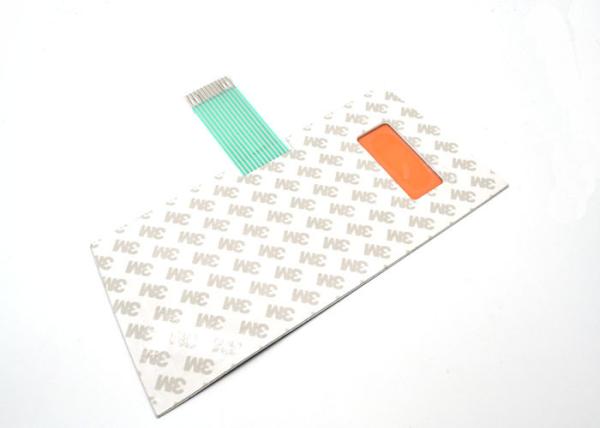

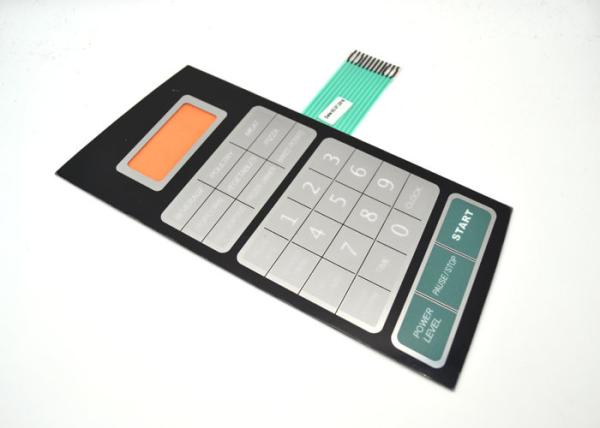

With a color transparent display window metal dome membrane switch /

ZS-121 / printing several colors on the top overlay

Product Specification

Electrical Performances

Wire Resistance

 0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC

Insulation Resistance

 >100MΩ 250V DC Working Voltage <50V DC

Non-tactile Switch

 0.1-0.4mm Tactile Switch 0.4-1.0mm

Working Life

 >1 million times Working Temperature -40℃-70℃

Working Humidity

 40℃,98%RH No Influence Substrate Voltage 1500V DC

Feed backTime

 10ms Tail Folding R>1,180

Membrane Switch Advantages:

1. Beautiful appearance ,rich and bright in color

2. Small size ,light weight ,good tactility

3. Low cost ,high lifespan

4. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested

5. Customized specification is available and keys can make different shapes

Performance

A.Electric Parameter


resistance: <1Ω/cm


contact current: 25~100mA


voltage rating: 2~24V


voltage insulation:1500V


voltage endurance:250V(60Hz/min)


insulation resistance:500VDC500MΩ


B.Physical Parameter


active force: 0.3~3N


lifecycle : >1mil.(non-tactile)


hand speed: ≤5ms


temperature: -40~+70


humidity : 40,48h95%


work altitude:0-4500M


C.Travel Distance


non-tactile :0.1~0.3mm


tactile :0.4~1.0mm

PET / PVC Metal Dome Membrane Switch With Colored Transparent Display WindowPET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window

Shipment and Delivery

PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
