Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
Specifications
Brand Name :
ZhongZuan
Model Number :
C-003
Certification :
CE;ISO9001;2015;
Place of Origin :
Chongqing,China
MOQ :
200
Price :
USD0.41/piece
Payment Terms :
T/T
Supply Ability :
10,000pcs/day
Delivery Time :
7-10 work day
Product :
Carbide hole saw
Use :
Metal Drilling, Stainless steel opening
Type :
Carbide drill bit
Material :
Hard alloy
Size :
15-100mm
Package :
PVC Box
Shank :
Triangle
Color :
Gray
Description

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

1. TCT Tungsten Carbide Tipped to keep Long performance life and teeth remain sharp longer
2. Three blade design to keep high efficiency cutting hole and High precision hole drilling
3. Better chip removal: Spring can protect the core drill and teeth to auto popup the cutting waste.
4. Use in drilling thick stainless steel, general steel,angle steel,aluminum,copper,cast iron,channel steel etc.

Brand: ZHONGZUAN
Product Hard alloy sheet hole drill
Material: Hard alloy
Specification: 15-100mm
Use: Hand drill, magnetic base drill, bench drill, etc.
Feature: The product adopts cemented carbide materials, and is precisely developed by a fully automatic machining center and a grinding center. The unique edge grinding process is sharp and wear-resistant. It has the characteristics of good chip removal, fast speed,not easy to break the knife, and high durability.

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

Hole diameter Center drill diameter Shank diameter Handle length Hole depth Total length
15mm 5mm 10mm 18mm 15mm 57mm
16mm 6mm 10mm 18mm 15mm 57mm
17mm 6mm 10mm 18mm 15mm 57mm
18mm 6mm 10mm 18mm 15mm 57mm
19mm 6mm 10mm 18mm 15mm 57mm
19.5mm 6mm 10mm 18mm 15mm 57mm
20mm 6mm 10mm 18mm 15mm 57mm
21mm 6mm 10mm 18mm 15mm 57mm
22mm 6mm 10mm 18mm 15mm 57mm
22.5mm 6mm 10mm 18mm 15mm 57mm
23mm 6mm 10mm 18mm 15mm 57mm
24mm 6mm 10mm 18mm 15mm 57mm
25mm 6mm 10mm 18mm 15mm 57mm
25.5mm 6mm 10mm 18mm 15mm 57mm
26mm 6mm 10mm 18mm 15mm 57mm
28mm 6mm 10mm 18mm 15mm 57mm
30mm 6mm 10mm 18mm 15mm 57mm
32mm 6mm 10mm 18mm 15mm 57mm
35mm 6mm 10mm 18mm 15mm 57mm
38mm 6mm 10mm 18mm 15mm 57mm
40mm 6mm 10mm 18mm 15mm 57mm
42mm 6mm 10mm 18mm 15mm 57mm
45mm 6mm 10mm 18mm 15mm 57mm
50mm 6mm 10mm 18mm 15mm 57mm
55mm 6mm 10mm 18mm 15mm 57mm
60mm 6mm 10mm 18mm 15mm 57mm
65mm 6mm 10mm 18mm 15mm 57mm
70mm 6mm 10mm 18mm 15mm 57mm
75mm 6mm 10mm 18mm 15mm 57mm
80mm 6mm 10mm 18mm 15mm 57mm
85mm 6mm 10mm 18mm 15mm 57mm
90mm 6mm 10mm 18mm 15mm 57mm
95mm 6mm 10mm 18mm 15mm 57mm
100mm 6mm 10mm 18mm 15mm 57mm

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

1. TCT Hard Alloy: The substrate base is made of 45# steel improves largely the service life.

2. Alloy forged blade: sharp edge/neat and smooth opening without broke edges/low cut resistance

3. Blade forward design: Front and back angle tooth design, low resistance and strong perforation ability.

4. Center drill spring design: Spring design,relatively stable feed to avoid sudden feed damage to the drill bit

5. Non-slip shank: Triangle shank allows it to be held more tightly.

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

Note: Pay attention to the temperature when cutting cold and hard materials. If the temperature is too high, water needs to be added. Please use it step by step when drilling, do not use excessive force.

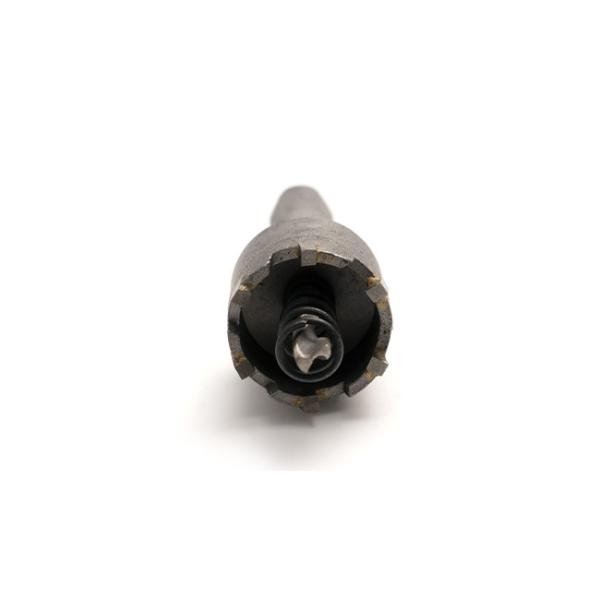

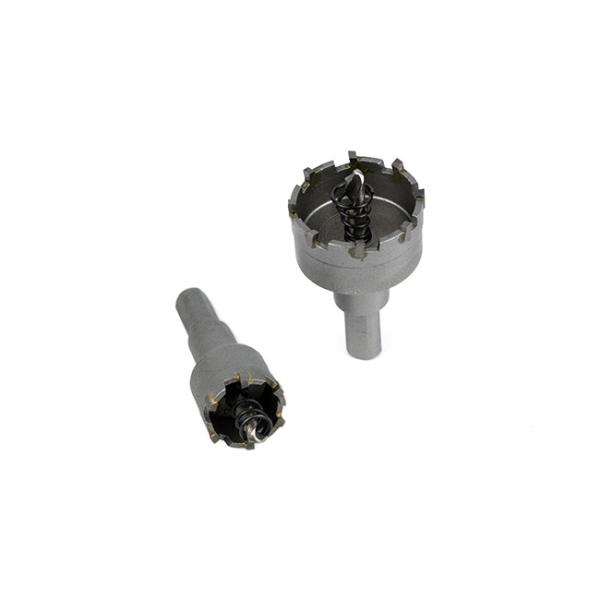

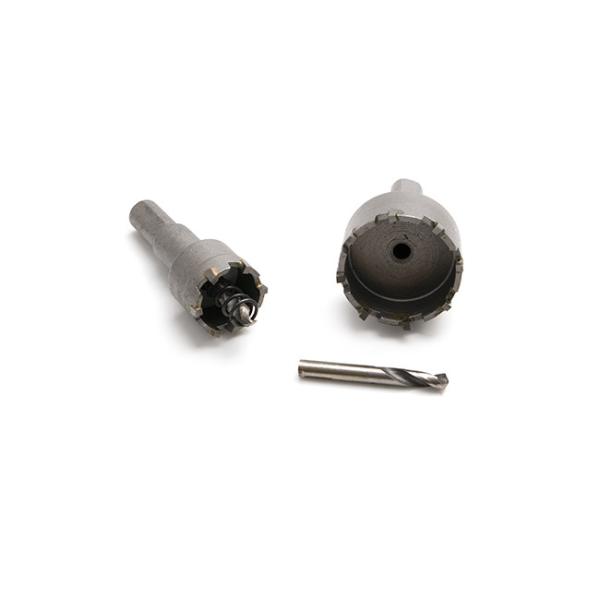

Real Product

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy

Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
