YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
Specifications
Brand Name :
ZhongZuan
Model Number :
T-004
Certification :
CE;ISO9001;2015;
Place of Origin :
Chongqing,China
MOQ :
200
Price :
USD0.45/piece
Payment Terms :
T/T
Supply Ability :
10,000pcs/day
Delivery Time :
7-10 work day
Name :
YG 10 TCT hole saw blade
Use :
Stainless steel,cast iron,aluminum,alloy,carbon steel
Material :
YG10 +45# steel
Type :
Center Drill Bit
OEM :
Available
Package :
PVC Box
Shank :
Triangle
Service :
One-stop Purchase
Description

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

1. Applied in house installation, security doors and windows, electrical switch cabinets, stainless steel installation and other fields.

2. Suitable for 0.6mm-3mm stainless steel,cast iron,aluminum,aluminum alloy,carbon steel and so on.

Campany profile

1. 26-year Industrial experience and covers area of 11700㎡ with 6 workshops
2. Procucts can be made as you required and OEM/ODM
3. Free samples can be sent for evaluation
4. Professional before&after-sales teams 24h-online to solve your any technical problems.

Brand: ZHONGZUAN
Product YG10 Lengthen Carbide hole saw
Material: Hard alloy
Specification: 12-127mm
Use: Hand drill, magnetic base drill, bench drill, etc.

Features:

 The product adopts cemented carbide materials, and is precisely developed by a fully automatic machining center and a grinding center. The unique edge grinding process is sharp and wear-resistant. It has the characteristics of good chip removal, fast speed,not easy to break the knife, and high durability.

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

Hole diameter Center drill diameter Shank diameter Hole depth Total length
12mm 5mm 10mm 20mm 75mm
13mm 6mm 10mm 20mm 75mm
14mm 6mm 10mm 20mm 75mm
15mm 6mm 10mm 20mm 75mm
16mm 6mm 10mm 20mm 75mm
17mm 6mm 10mm 20mm 75mm
17.5mm 6mm 10mm 20mm 75mm
18mm 6mm 10mm 20mm 75mm
18.5mm 6mm 10mm 20mm 75mm
19mm 6mm 10mm 20mm 75mm
19.5mm 6mm 10mm 20mm 75mm
20mm 6mm 10mm 20mm 75mm
20.5mm 6mm 10mm 20mm 75mm
21mm 6mm 10mm 20mm 75mm
22mm 6mm 10mm 20mm 75mm
22.5mm 6mm 10mm 20mm 75mm
23mm 6mm 10mm 20mm 75mm
24mm 6mm 10mm 20mm 75mm
25mm 6mm 10mm 20mm 75mm
26mm 6mm 10mm 20mm 75mm
28mm 6mm 10mm 20mm 75mm
29mm 6mm 10mm 20mm 75mm
30mm 6mm 10mm 20mm 75mm
31mm 6mm 10mm 20mm 75mm
32mm 6mm 10mm 20mm 75mm
33mm 6mm 10mm 20mm 75mm
34mm 6mm 10mm 20mm 75mm
35mm 6mm 10mm 20mm 75mm
36mm 6mm 10mm 20mm 75mm
37mm 6mm 10mm 20mm 75mm
38mm 6mm 10mm 20mm 75mm
39mm 6mm 10mm 20mm 75mm
40mm 6mm 10mm 20mm 75mm
42mm 6mm 10mm 20mm 75mm
43mm 6mm 10mm 20mm 75mm
45mm 6mm 10mm 20mm 75mm
46mm 6mm 10mm 20mm 75mm
47mm 6mm 10mm 20mm 75mm
48mm 6mm 10mm 20mm 75mm
50mm 6mm 10mm 20mm 75mm
51mm 6mm 10mm 20mm 75mm
53mm 6mm 10mm 20mm 75mm
55mm 6mm 10mm 20mm 75mm
57mm 6mm 10mm 20mm 75mm
58mm 6mm 10mm 20mm 75mm
60mm 6mm 10mm 20mm 75mm
63mm 6mm 10mm 20mm 75mm
65mm 6mm 10mm 20mm 75mm
70mm 6mm 10mm 20mm 75mm
75mm 6mm 10mm 20mm 75mm
80mm 6mm 10mm 20mm 75mm
85mm 6mm 10mm 20mm 75mm
90mm 6mm 10mm 20mm 75mm
95mm 6mm 10mm 20mm 75mm
100mm 6mm 10mm 20mm 75mm
105mm 6mm 10mm 20mm 75mm
110mm 6mm 10mm 20mm 75mm
115mm 6mm 10mm 20mm 75mm
120mm 6mm 10mm 20mm 75mm
125mm 6mm 10mm 20mm 75mm
127mm 6mm 10mm 20mm 75mm

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

1. TCT Hard Alloy: The substrate base is made of 45# steel improves largely the service life.

2. Alloy forged blade: sharp edge/neat and smooth opening without broke edges/low cut resistance

3. Blade forward design: Front and back angle tooth design, low resistance and strong perforation ability.

4. Center drill spring design: Spring design,relatively stable feed to avoid sudden feed damage to the drill bit

5. Non-slip shank: Triangle shank allows it to be held more tightly.

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

Note: Pay attention to the temperature when cutting cold and hard materials. If the temperature is too high, water needs to be added. Please use it step by step when drilling, do not use excessive force.

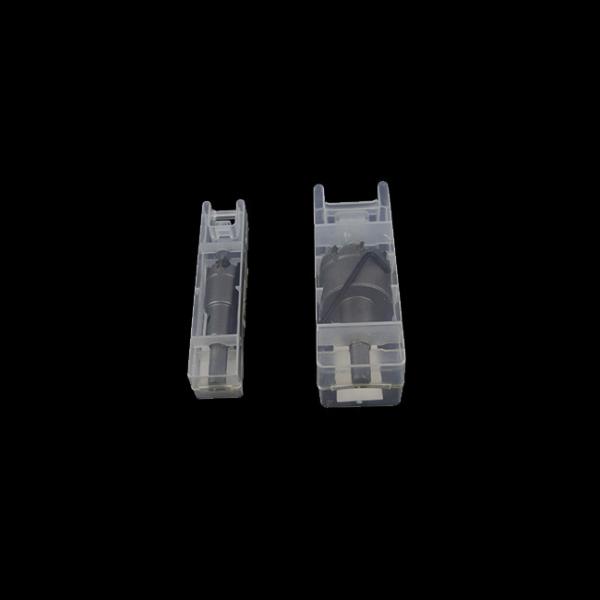

Packing&Delivery

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.

Real product

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal

YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
