Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
Specifications
Brand Name :
NOVA
Place of Origin :
CHINA
MOQ :
5m2 size
Price :
5 - 899 Square Meters $13.98 900 - 7999 Square Meters $12.85 >=8000 Square Meters $11.81
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Square Meter/Square Meters per Day
Delivery Time :
Quantity(Square Meters) 1 - 200 >200 Est. Time(days) 2 To be negotiated
Packaging Details :
Hot sale 200x40 mesh stainless steel 316 316L Reverse Dutch Weave Wire Mesh Belt For Plastic Extrusion (1)paper tube support inside , and waterproof paper , and wooden box outside . (2)special package can be customized as per customers' request
material :
stainless steel
width :
usually 127mm, or customized
wire diameter :
0.02mm-0.5mm
feature :
high strength,corrosion resistant,heat resistant
shape :
in roll
package :
plywood case
application :
filtering of plastic wire drawing bench
weave style :
Dutch Weave
sample :
free
certificated :
ISO-9001:2008
Description

Reverse dutch weave stainless steel wire mesh/00x40 mesh stainless steel 316 316L Reverse Dutch Weave Wire Mesh Belt

1. Name: contrast type net. According to local differences and uses, it is also called: contrast seat mesh belt (Dutch cloth)
2. Material specifications: use high quality stainless steel wire
3. Weaving: reverse dutch weaving

4. Features: smooth surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, flexible mesh, etc., with excellent filtration performance, good filtration precision, high load strength, high temperature resistance, low temperature resistance, etc.
5. Specifications: The general length is 10 meters long, the width is 40mm-210mm, the mesh number is 40 mesh -350 mesh, the maximum width is up to 50 cm, and the special specifications can be processed and customized.

Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt

reverse ducth mesh Catalog

Mesh count
Wire diameter(mm)
Thickness(mm)
Width(mm)
54*15
0.45*0.6
1.75
50--800
72*15
0.45*0.55
1.7
50--800
132*17
0.23*0.45
1.2
50--1000
160*18
0.28*0.45
1.27
50--1000
200*40
0.17*0.27
0.7
50--1500
260*40
0.15*0.27
0.65
50--1500
300*40
0.13*0.27
0.65
50--1500
350*40
0.13*0.27
0.6
50--1500

Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt

Stainless steel reverse dutch mesh applications:

Widely used in, for example, plastic woven bags, plastic film, etc., aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research and transportation industries. Automatic belt filter for plastic extruder, plastic melt filter, plastic belt filter. The products work fine, often with filter equipment exported to Southeast Asia, the United Kingdom, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.

Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt

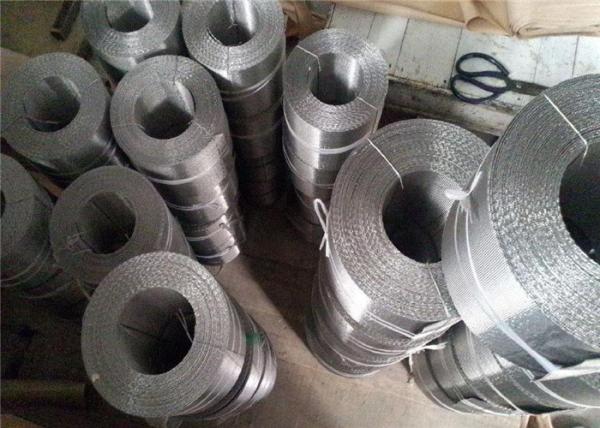

Stainless steel reverse dutch wire mesh Packing:

Waterproof paper inside and plywood case outside or according to your need.

Reverse Dutch Weave Stainless Steel Wire Mesh/200x40 Mesh Stainless Steel 316 316L Reverse Dutch Weave Wire Mesh Belt
