Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
Specifications
Brand Name :
NOVA
Place of Origin :
CHINA
MOQ :
5m2 size
Price :
1 - 199 Square Meters $27.00 >=200 Square Meters $3.50
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Square Meter/Square Meters per Week
Delivery Time :
Quantity(Square Meters) 1 - 200 >200 Est. Time(days) 2 To be negotiated
Packaging Details :
1.inside use carton pipe for support+wire mesh layer+water proof paper 2.outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets. 3.also we can as per your requirements. alibaba best seller reverse Dutch weave wire cloth Wire Mesh for Rod
material :
stainless steel
width :
usually 127mm, or customized
wire diameter :
0.02mm-0.5mm
feature :
high strength,corrosion resistant,heat resistant
shape :
in roll
package :
plywood case
application :
filtering of plastic wire drawing bench
weave style :
Dutch Weave
sample :
free
length :
10meters/20 meters/ Customized Length
Description

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh

1. Name: contrast type net. According to local differences and uses, it is also called: contrast seat mesh belt (Dutch cloth)
2. Material specifications: use high quality stainless steel wire
3. Weaving: reverse dutch weaving

4. Features: smooth surface, high hardness, continuous mesh, no deformation, high temperature resistance, corrosion resistance, flexible mesh, etc., with excellent filtration performance, good filtration precision, high load strength, high temperature resistance, low temperature resistance, etc.
5. Specifications: The general length is 10 meters long, the width is 40mm-210mm, the mesh number is 40 mesh -350 mesh, the maximum width is up to 50 cm, and the special specifications can be processed and customized.

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh

material 201, 304, 304L, 316, 316L, 431, 321, ect
weave reverse dutch weave
mesh count 20-400
diameter 0.10-0.8mm
width 1m (customized)
length 30m(customized)
Features excellent filtering performance/Continuous/no deformation/hardness/corrosion resistance/anti-oxidation

Mesh Count Wire Diameter Thinckness Width
54*15 0.45*0.6 1.75 50-800
72*15 0.45*0.55 1.7 50-800
132*17 0.223*0.45 1.2 50-1000
160*18 0.28*0.45 1.27 50-1000
200*40 0.17*0.27 0.7 50*1500
260*40 0.15*0.27 0.65 50*1500
300*40 0.15*0.27 0.65 50*1500
350*40 0.13*0.27 0.6 50*1500

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh

Feature:

Mesh surface is smooth
Hardness is high
High temperature resistance
Corrosion resistance
Flexible mesh
Excellent filtering performance.

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh

Application of reverse dutch weaving wire mesh:

--Be widely used in ribbon style continuous screen changers. (automatic screen changers).

--Major in Plastic Extrusion,Melt Filtration and other plastic industry Filed for PP,PS,PVC,ABS,PE,PET etc.

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh

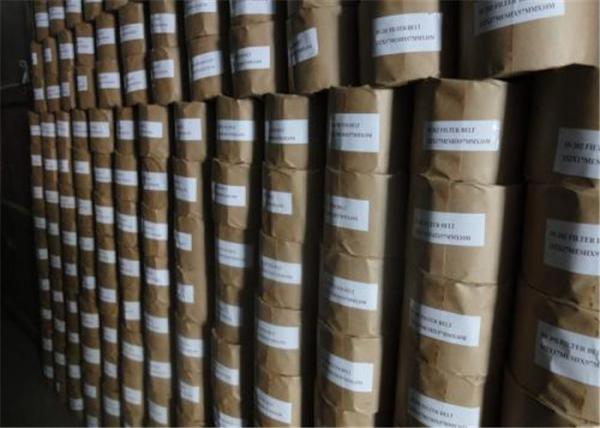

Packing: packed with water-proof paper for inside and wooden case for outside.
Deliever:3-30 days after ordering the product.
Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch Mesh/Extruder Filter Screen/Reverse Dutch Mesh
