Galfan Welded Mesh Gabions Baskets / welded mesh gabion mattress

Product Description:

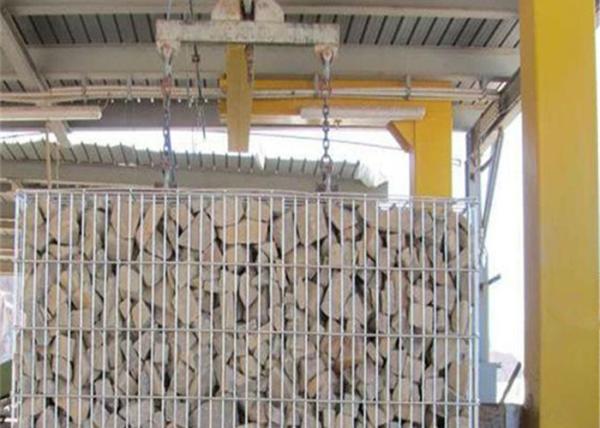

Welded gabions are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabion can not adapt to differential settlement or be used in water courses ,In comparison with woven wire gabions, welded gabion offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabions, It is composed of welded mesh panel and spring steel lacing wire.

Material: Low carbon iron wire
Mesh Size: 50x50mm, 75x75mm, 100x50mm, 100x100mm
Box Size: 2x1x0.5m, 1x0.5x0.5m, 1x0.6x0.4m etc.
Diameter: 3.0-6.0mm

How to install welded gabion box:

After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.

When the helical is fully engaged, the formed end should lock in place.

All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.

Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.

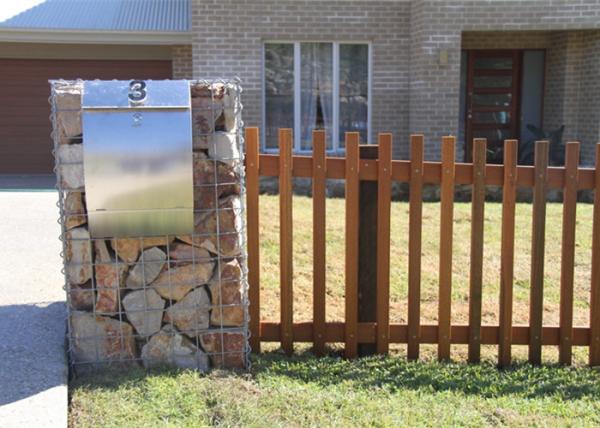

Applications:

1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
10.Roadway protection.

Welded mesh gabions feature:

Low Cost, Easy to Build

Packing details

Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.
