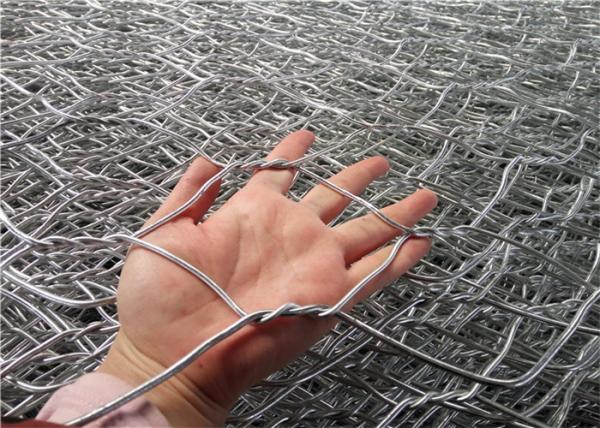

Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
Specifications
Brand Name :
Nova
Model Number :
Nova-107
Certification :
ISO9001
Place of Origin :
China
MOQ :
3000 square meters
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 square meters per week
Delivery Time :
5-10 days, according to buyer's requirement
Packaging Details :
Covered with plastic, in pallet.
Wire diameter :
2.0-4.0mm
Type :
Woven mesh
Hole size :
60*80mm
Surface :
galvanized or pvc coated
Material :
Low-Carbon Iron Wire,Galvanized Iron Wire,Plastic Coated Iron Wire,Stainless steel wire
Surface treatment :
Galvanized+PVC Coated,PVC coated,galfan,Hot Dipped Galvanized
Description

Hot dipped galvanized gabion rock wire mesh / gabion wire mesh for retaining wall

Product Description:

Retaining walls hold back earth on slopes and hills, preventing it from falling or sliding downward. They commonly line gardens, driveways, roads, yards and other outdoor features. Wire and rock retaining walls are a cost-effective option for landscaping. Wire baskets, known as gabions, are positioned in front of the earth that needs to be retained, and then filled with rocks to prevent them from moving. Purchasing gabions is best, as making them from scratch is time consuming and requires a level of expertise.

Length (m) Width (m) Height (m) Spacer number Volume (m2) Tolerance range
2.0 1.0 0.15---0.3 1 0.3~0.6


Length :±/-3%
Width :±/-5%
Height :±/-5%
3.0 1.0 0.15---0.3 2 0.45~0.9
4.0 1.0 0.15---0.3 3 0.6~1.2
2.0 1.0 0.5 1 1.0
3.0 1.0 0.5 2 1.5
4.0 1.0 0.5 3 2.0
1.0 1.0 1.0 0 1.0
1.5 1.0 1.0 0 1.5
2.0 1.0 1.0 1 2.0
3.0 1.0 1.0 2 3.0
4.0 1.0 1.0 3 4.0


Gabion mesh has the following positive advantages:

1.Cost effective and environmentally friendly
2.The Gabion structure blends easily and harmoniously with natural surroundings.
3.Simple and speedy installation
4.Ability to deform without cracking allowing the structure to withstand any unpredictable movement or settlement without loss or stability.
5.Higher resistance to natural forces due to better tensile strength.
6.Easy of repair with minimal expense.

How to build a reraining wall?

Step 1

Write down the width, height and length of the area where you will build the retaining wall. Several sizes and types are available for a relatively low price.

Step 2

Use a shovel and rake to level the area where you will place the gabions.

Step 3

Place the gabions along the area where you plan to build the retaining wall. Tie the gabions together with steel wire using pliers.

Step 4

Pack each gabion full with rocks. Rocks from any source will do, as long as they have a larger diameter than the wire mesh so they do not fall out of the gabions.

Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
